Application:

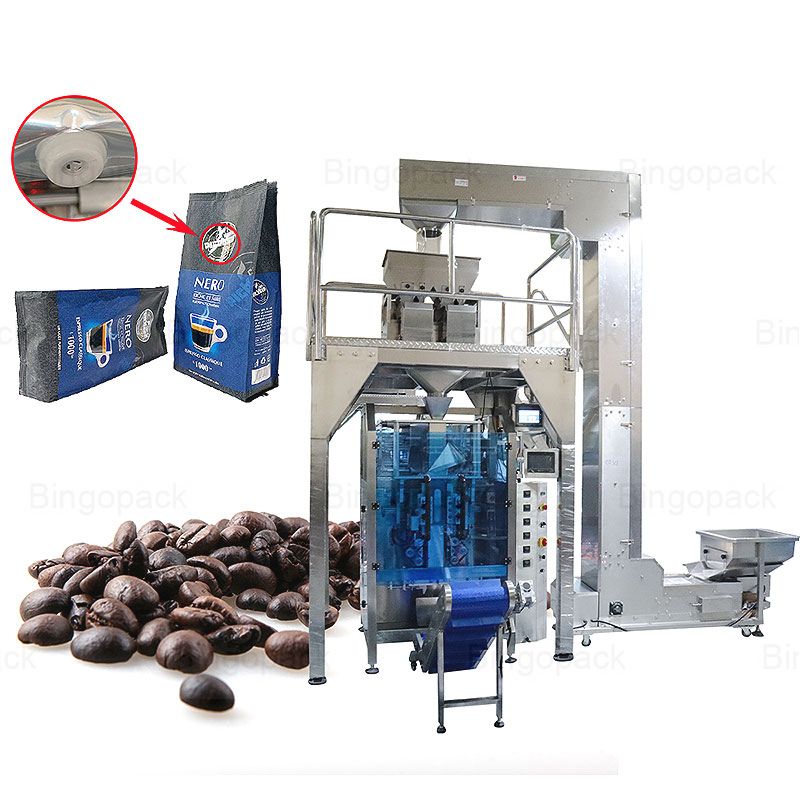

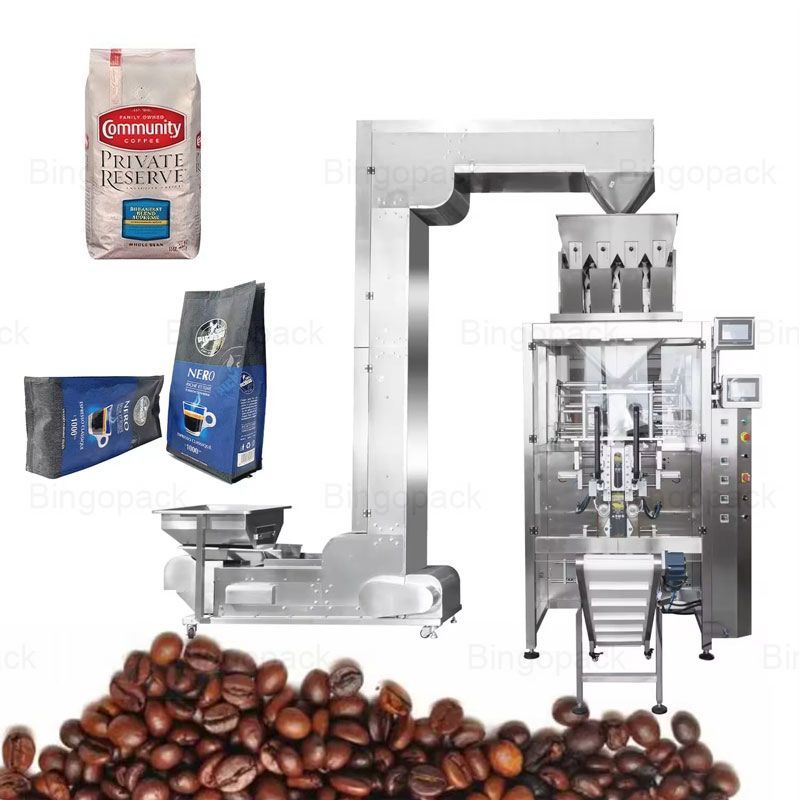

Optimize your coffee bean packaging with our advanced packing machines, engineered for precision and freshness preservation. Designed to seal in rich flavor and aroma, our high-efficiency solutions ensure superior packaging quality tailored specifically for coffee products.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

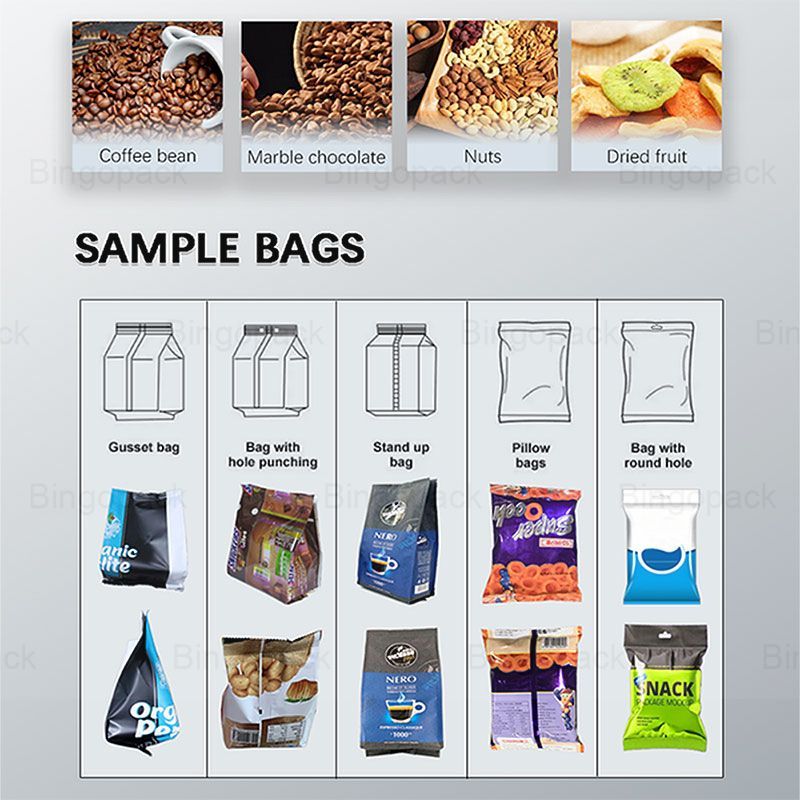

Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Valve Bag
4. Quad seal bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Electrical Box: Features a well-organized circuit layout, ensuring stable and secure machine operation.

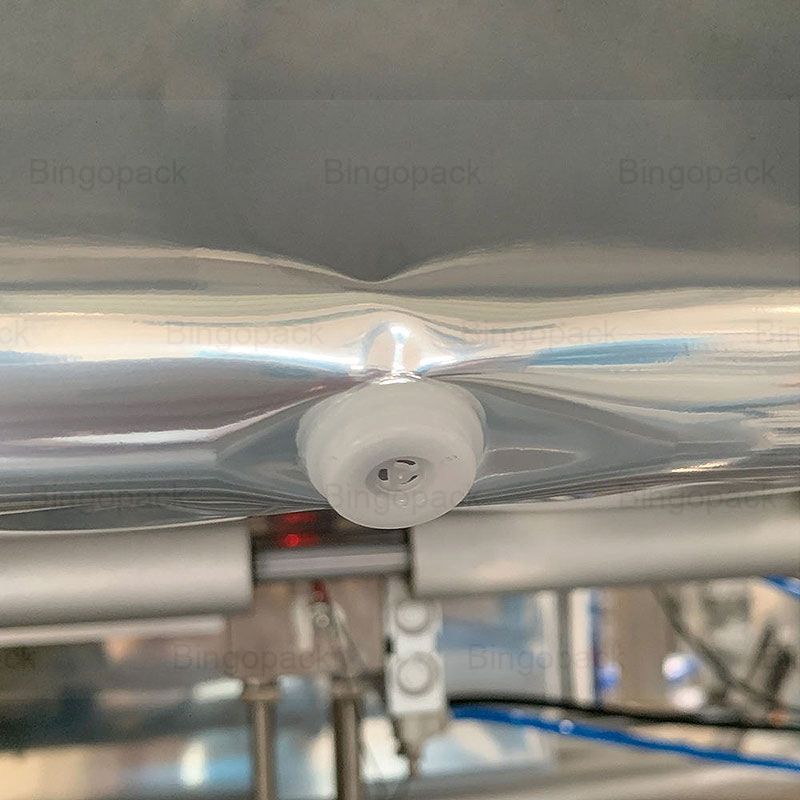

2. Vent Valve: Effectively releases carbon dioxide to maintain the freshness of coffee products.

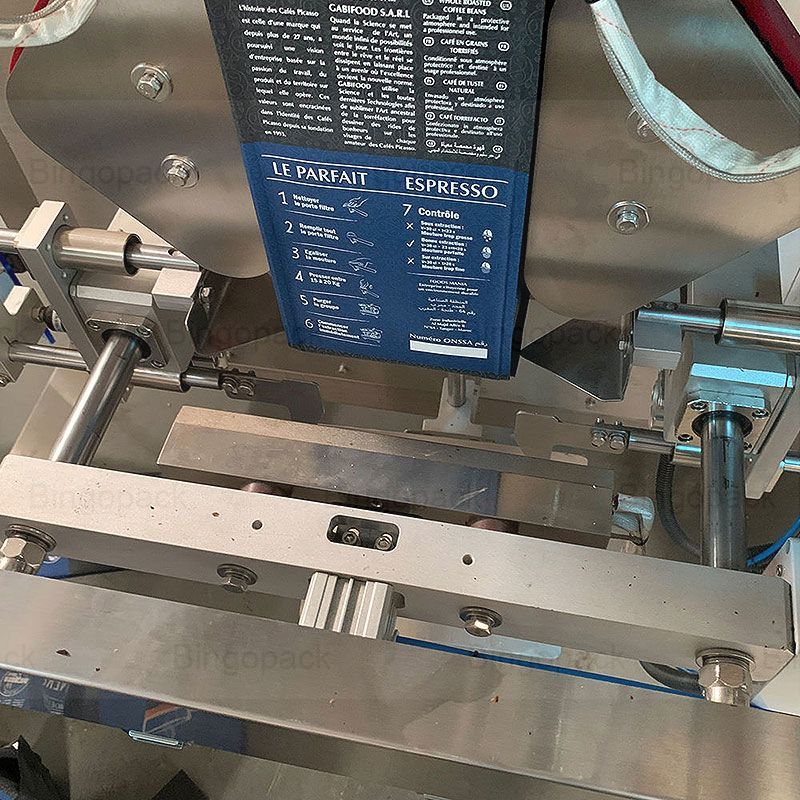

3. Cutting Device: Custom cutting mechanism with specialized sealing for a polished and professional package appearance.

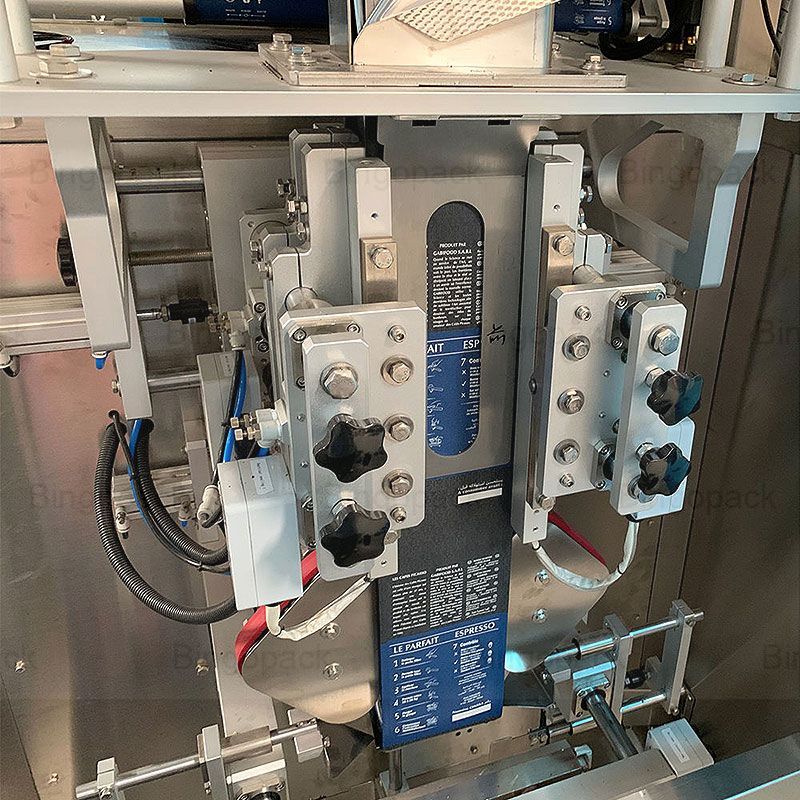

4. Flexible Film Structure: Supports various film structures, allowing versatile and convenient operation for different packaging requirements.
5. Reliable Date Printer: High-quality date printer ensures clear, stable, and precise date marking.
Application:
| Model | BP-320A | BP-380A | BP-420A | BP-520A | BP-720A |
| Packing size | W: 50-150mm | W: 70-200mm | W: 80-200mm | W: 90-250mm | W: 110-350mm |
| L: 50-200mm | L: 50-300mm | L: 50-300mm | L: 80-350mm | L: 100-420mm | |
| Packing speed | 20-60 bags/min | 10-60 bags/min | 15-80 bags/min | 30-80 bags/min | 10-60 bags/min |
| Range of measuring | 700ml | 150-1500ml | 150-1500ml | Max 1500ml | Max 4000ml |
| The max width of packing film | 320mm | 420mm | 420mm | 520mm | 720mm |
| Air consumption | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 300L/min 0.8MPa |
| Main power/voltage | 2.7KW/220V 50-60Hz | 2.5KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 4.0KW/220V 50-60Hz |
| Main power/voltage | 350KG | 450KG | 450KG | 450KG | 800KG |
| Dimension | (L)1100* (W)800*(H)1940mm | (L)1400*(W)970*(H)1700mm | (L)1400*(W)970*(H)1700mm | (L)1480* (W)1200*(H)1700mm | (L)1780*(W)1350*(H)2000mm |
| Film thickness | 0.04-0.10mm | ||||
| Bag making mode | Valve bag, Pillow-type bag, Standing bag, Punching device, Link-bag device | ||||
| Bag making mode | POPP/CPP, POPP/VMCPP, BOBB/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET | ||||
