Application:

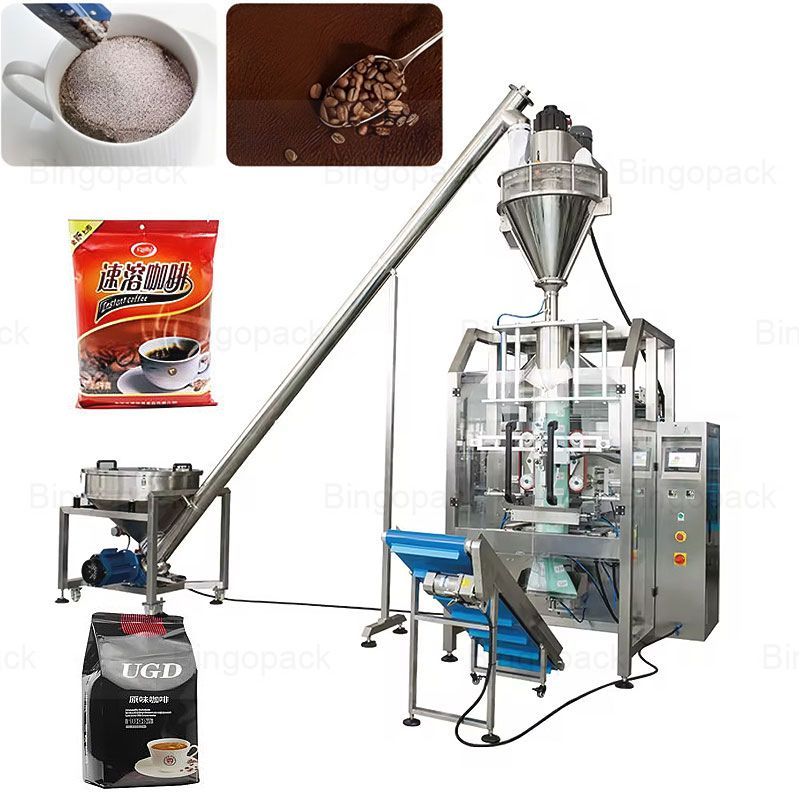

Suitable for packing fine dry powder materials, including coffee powder, milk powder, spice powder, corn flour, laundry powder, coconut powder, fruit powder, collagen protein powder, cocoa powder, chili powder, and more, ensuring precise and efficient packaging.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:

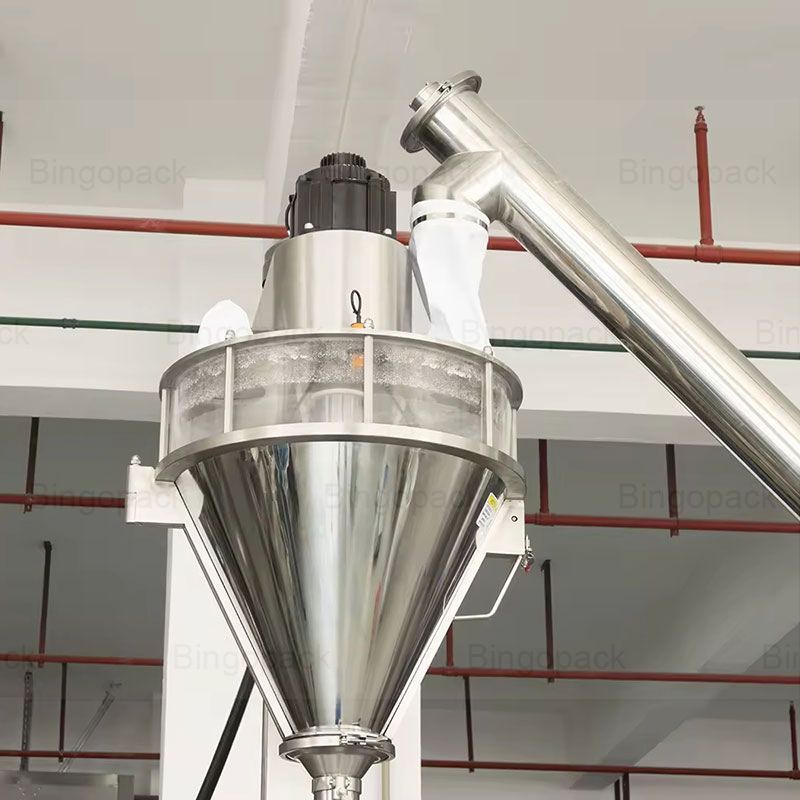

1. The screw feeder is equipped with a filter screen to remove impurities such as particles, ensuring product purity.

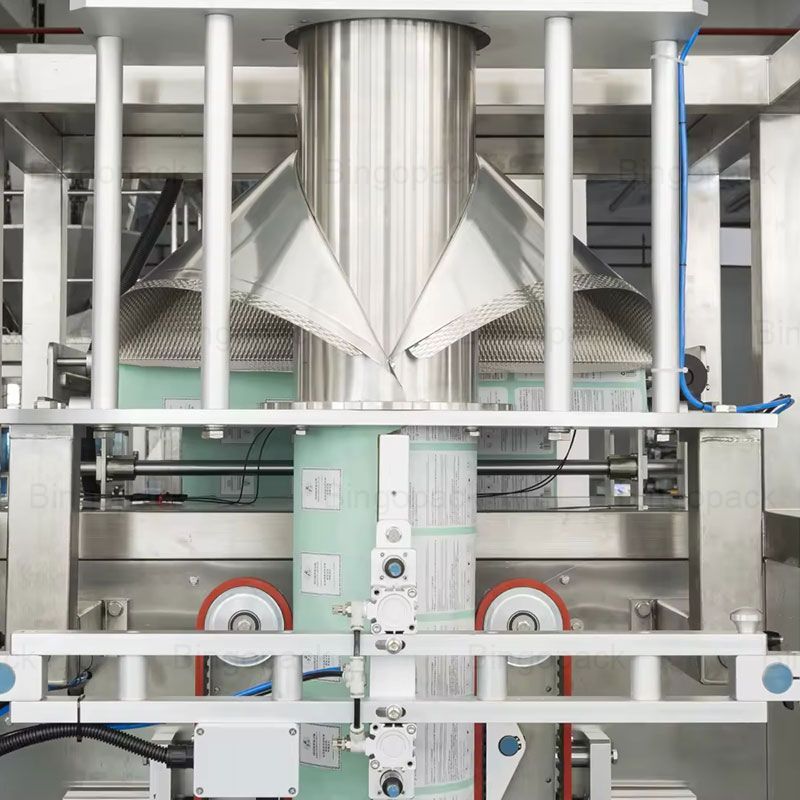

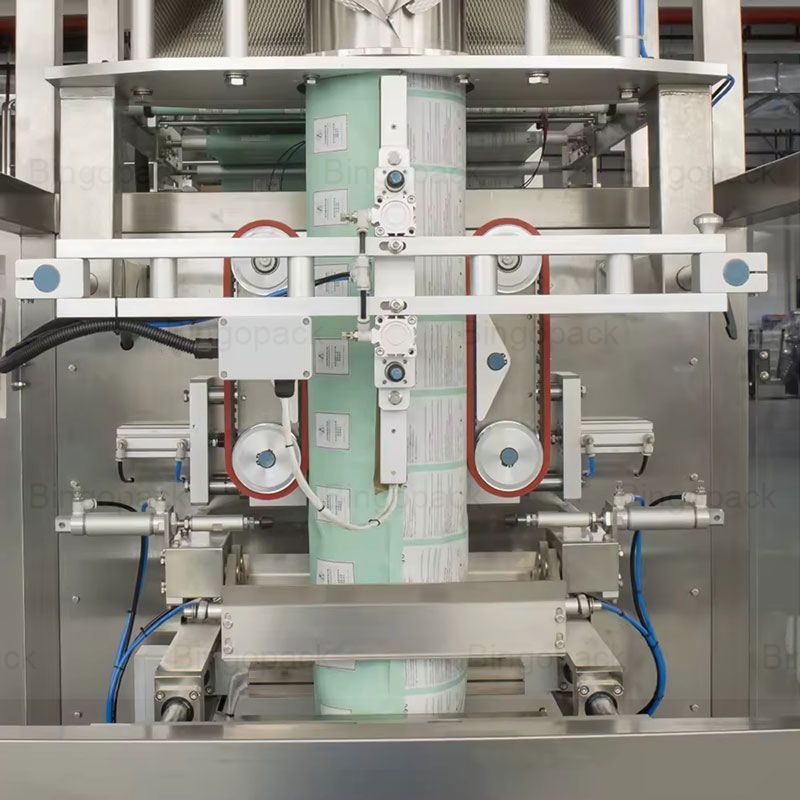

2. Multi kinds bag-making device creates a more structured and visually appealing bag shape.
3. The traditional electric eye is replaced with an ultrasonic sensor for higher precision in material level detection.
4. The main machine comes with a labeling machine capable of applying labels of different sizes.
5. Advanced metering screw design ensures precise and uniform product filling.
6. Features an intuitive touch screen interface for easy operation and quick adjustments.
Application:
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min | 5-20 bags/min | 5-20 bags/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
