Application:

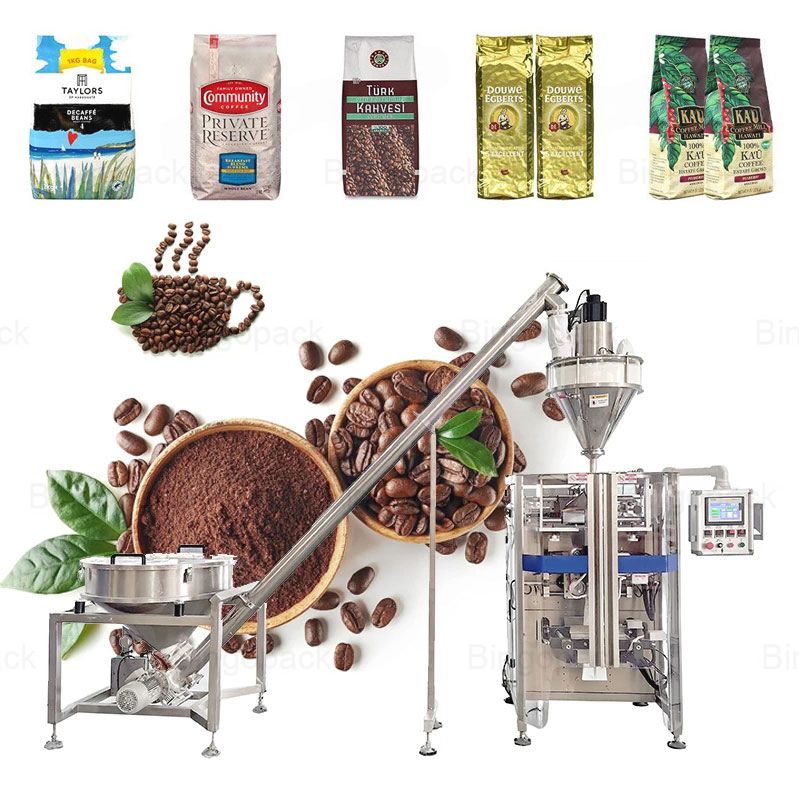

Suitable for various powder products, including coffee powder, corn flour, wheat flour, spice powder, medical powder, and chemical powder, this machine efficiently integrates metering, filling, sealing, and packing into roll film bags with precision and reliability.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch

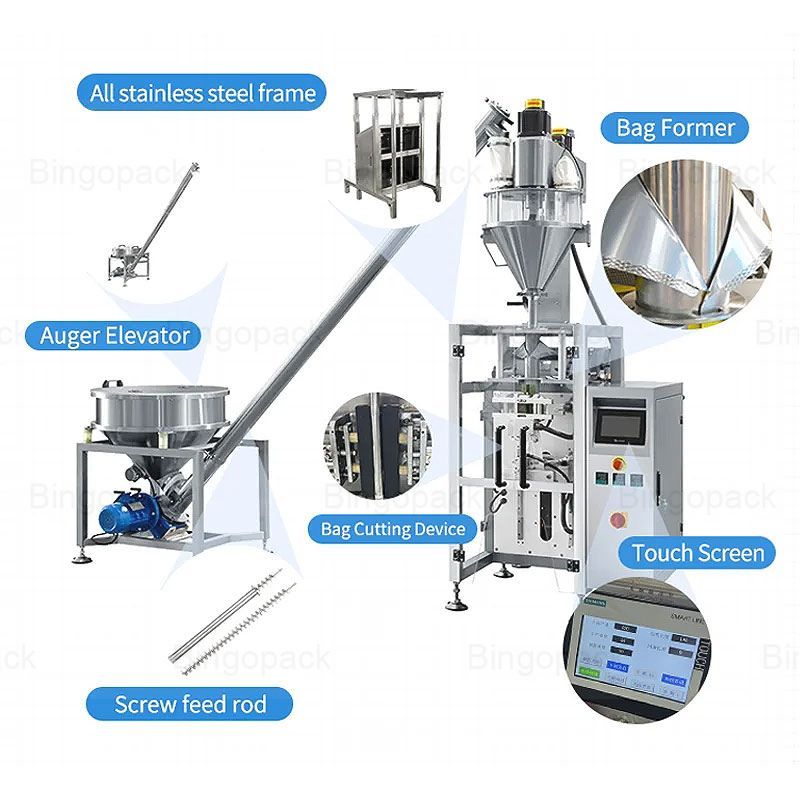

Features:
1. 304 Food-Grade Stainless Steel Frame: Ensures safety and durability, best protection for food packages.
2. Smart Temperature Control: Independent temperature system offers accurate control**, realizing safe and smooth sealing.
3. High-Speed Automatic: With touch control, PLC, and servo motor film pulling, guaranteeing smart, stable, and efficient operation.
4. Simple Deviation Adjustment: Self-adjusting sealing and cutting position through touch screen, making the operation easily accessible and simple.
5. Multiple Packaging Parameters Storage: Stores numerous product settings for quick changeover between different packaging operations without reconfiguring.
6. Intelligent Fault Display System: Real-time error notification allows quick troubleshooting, minimizing downtime and manual adjustment.
7. Multi-Use Bag Solutions: Supports industrial pillow bags, pin bags, hanging hole bags, and even specialty bags to suit varied packaging needs.
8. Dust-Proof Case: The fully enclosed design effectively keeps dust out of the machine, protecting clean and stable operation.
Application:
Model | BP-680 | |||
Bag size | L: 80-480*W: 50-330mm | |||
Max width of roll film | 680mm | |||
Packing speed | 5-60 bags/min | |||
Air pressure | ≥0.65Mpa | |||
Gas consumption | 0.4m³/min | |||
Powder voltage | 220/380V | |||
Power | 3.5KW | |||
Dimension | L1150*W1795*1650mm | |||
Net weight of machine | 720KG | |||
