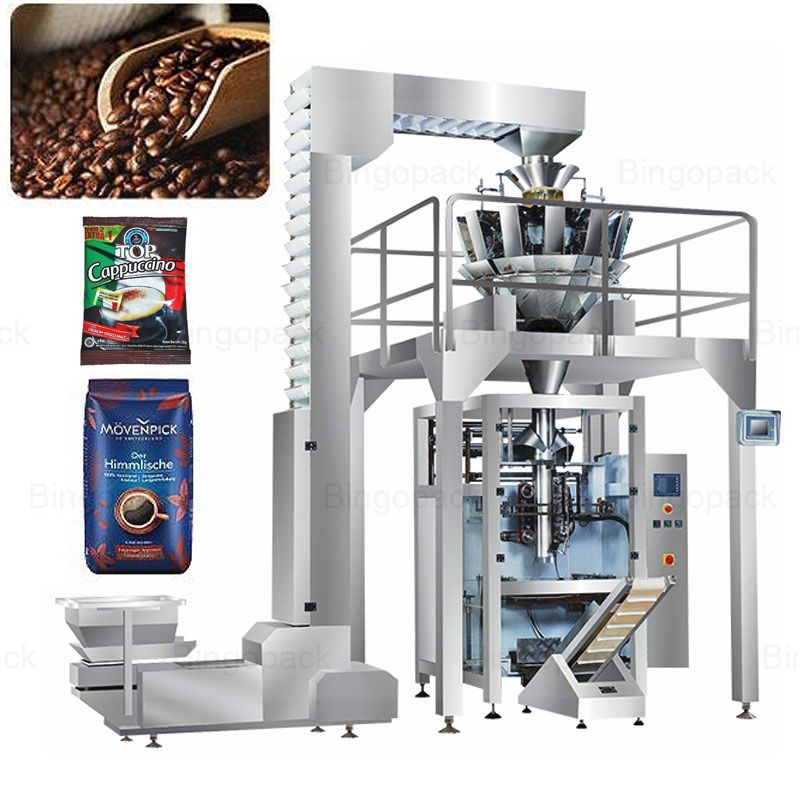

Multi Heads Weigher Coffee Bean Vertical Pouch Filling Sealing Machine

Multi Heads Weigher Coffee Bean Vertical Pouch Filling Sealing Machine

Application:

Optimize coffee bean packaging with our advanced machines, ensuring precision, freshness, and extended shelf life. Designed to preserve flavor and aroma, our machines provide efficient, high-quality packaging solutions tailored for coffee products.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Pillow bag

2. Gusset bag

3. Flat bottom stand up bag

4. Quad seal stand up bag

5. Brick shape bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. Touch Screen Control: Multi-language interface for easy adjustment of speed, temperature, capacity, bag length, etc.

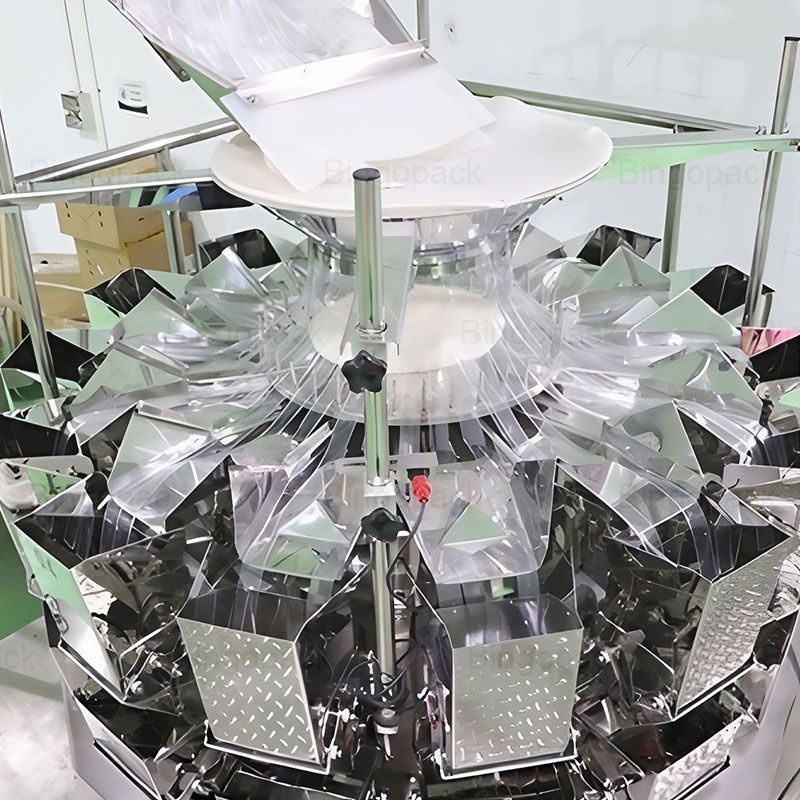

2. Multi-Head Weighing System: Available in 4, 10, 14, and 24 heads for precise weight calculation and automatic discharge.

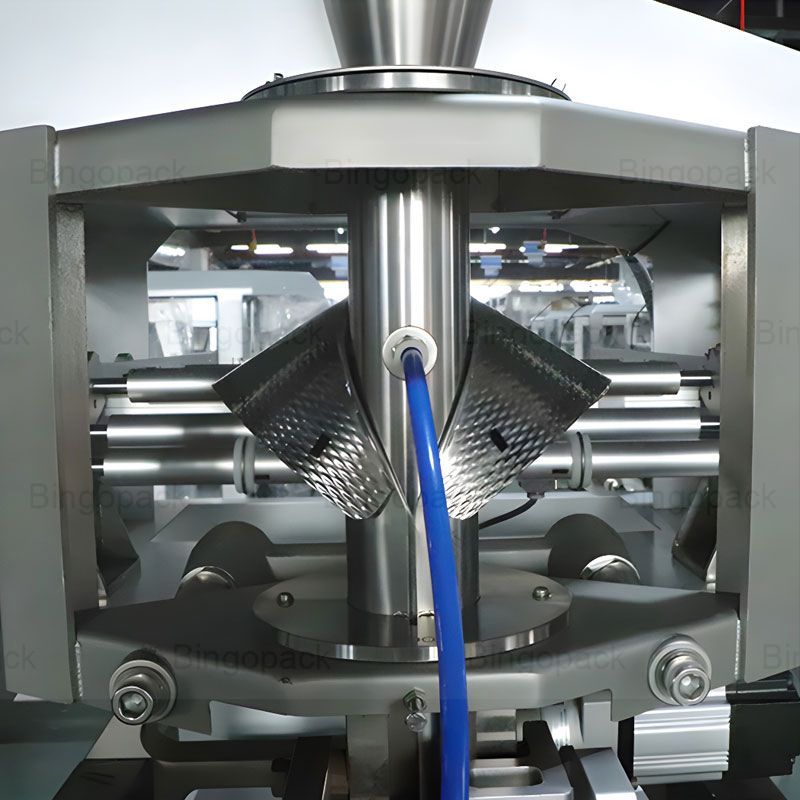

3. Bag Forming & Film Pulling System: Roll film folding and shaping with dual-belt film pulling for stable operation.

4. Sealing & Cutting System: Heated sealing prevents leakage, cylinder-driven cutter, with optional air exhaust or inflation function.

5. Temperature Control System: Independently controls horizontal and vertical sealing temperatures to ensure tight sealing.

6. PLC Intelligent Control: Stable and efficient, customizable for different packaging needs.

Application:

Model	BP-320A	BP-380A	BP-420A	BP-520A	BP-720A
Packing size	W:50-150mm	W:70-200mm	W:80-200mm	W:90-250mm	W:110-350mm
Packing size	L:50-200mm	L:50-300mm	L:50-300mm	L:80-350mm	L:100-420mm
Packing speed	20-60 bag/min	10-60 bag/min	15-80 bag/min	30-80 bag/min	10-60 bag/min
Range of measuring	700ml	150-1500ml	150-1500ml	Max 1500ml	Max 4000ml
The max width of packing film	320mm	420mm	420mm	520mm	720mm
Air consumption	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	300L/min 0.8MPa
Main power/voltage	2.7KW/220V 50-60Hz	2.5KW/220V 50-60Hz	2.2KW/220V 50-60Hz	2.2KW/220V 50-60Hz	4.0KW/220V 50-60Hz
Main power/voltage	350KG	450KG	450KG	450KG	800KG
Dimension	(L)1100* (W)800*(H)1940mm	(L)1400(W)970(H)1700mm	(L)1400(W)970(H)1700mm	(L)1480* (W)1200*(H)1700mm	(L)1780(W)1350(H)2000mm
Film thickness	0.04-0.10mm
Bag making mode	Pillow-type bag, Standing bag, punching device,Link-bag device
Bag making mode	POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET
