Application:

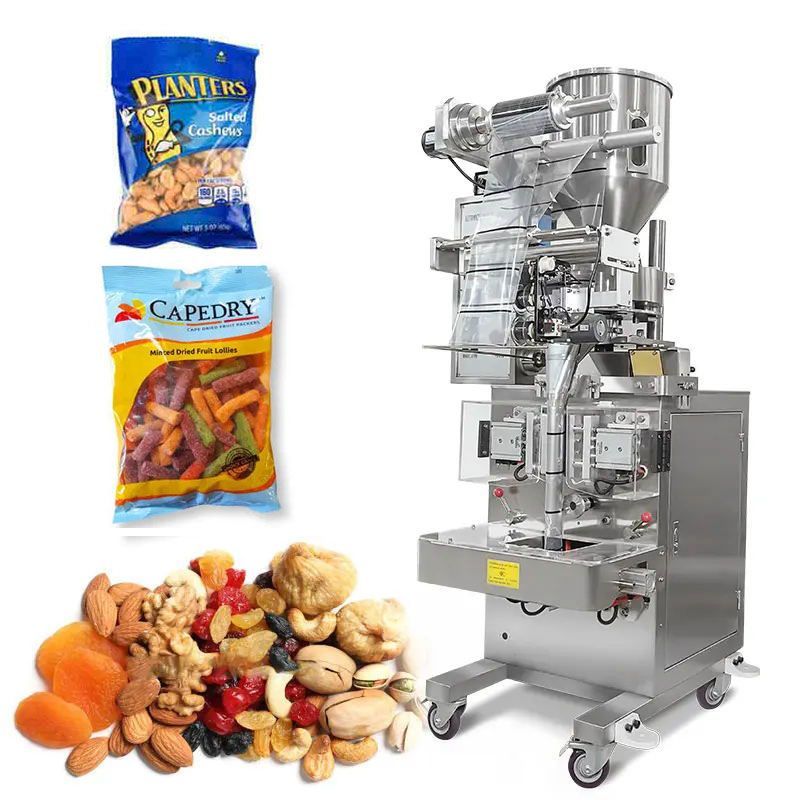

Suitable for packaging a variety of puffed foods, shrimp bars, candies, peanuts, popcorn, rice, and other grain or piece materials. This machine ensures efficient and precise packaging for diverse products.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

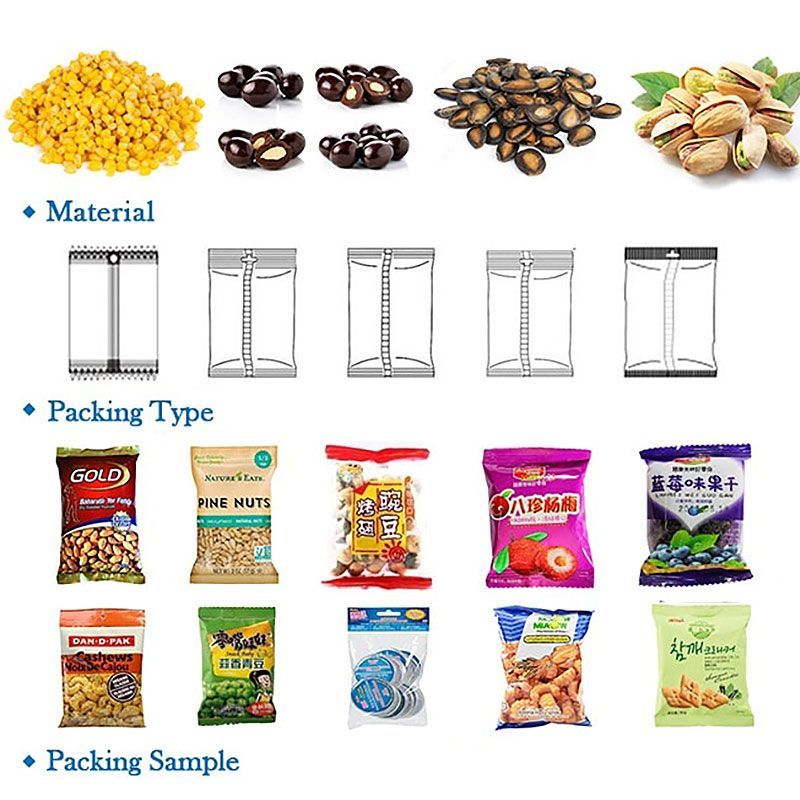

Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Integrated Functionality: Handles product dosing, filling, pouch forming, and sealing in one seamless process.
2. Durable Construction: Built with stainless steel 304 for a robust structure and hygienic surface, meeting high durability and cleanliness standards.
3. PLC & HMI Control: Features an integrated weighing and packaging system with PLC and HMI for stable operation and effortless parameter adjustments.

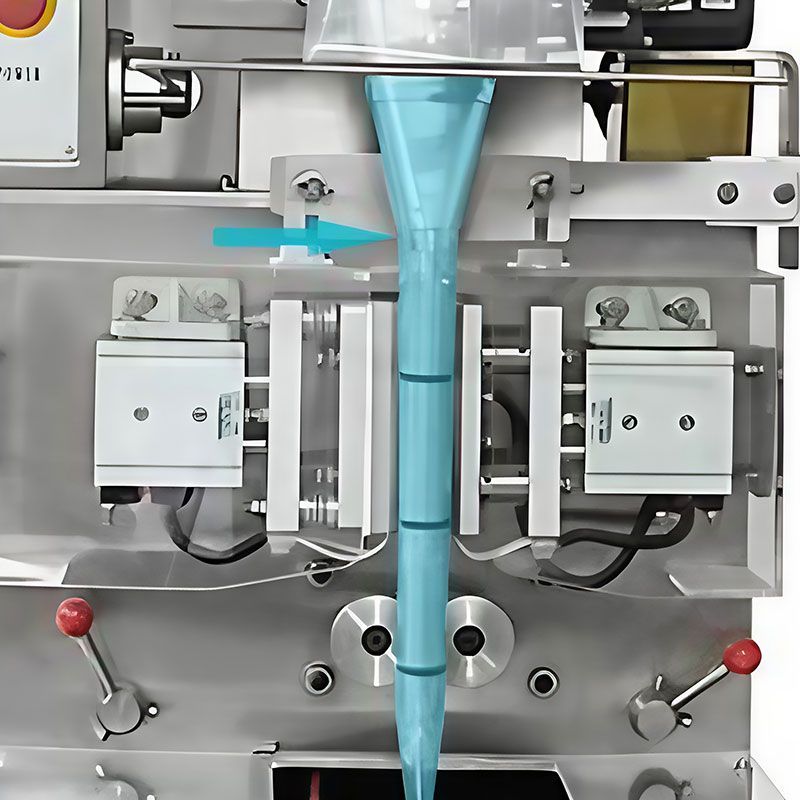

4. Adaptable Pouch Former: Allows for quick and simple changes to the pouch former, accommodating various pouch sizes with ease.
5. Precise Temperature Control: Equipped with intelligent temperature management to ensure clean, artistic, and reliable sealing.

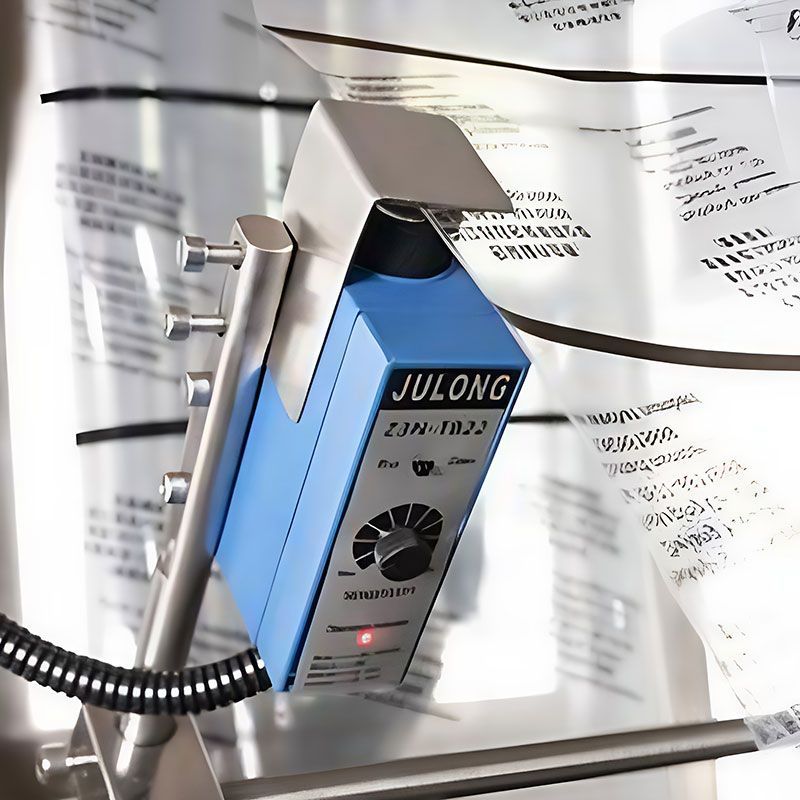

6. Film Pre-Pulling Device: Includes a pre-pulling mechanism for stable and consistent pouch formation.
7. User-Friendly Film Replacement: Designed for easy and efficient packaging film changes, enhancing operational efficiency.
Application:
| Model | BP-320 | BP-380 |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
