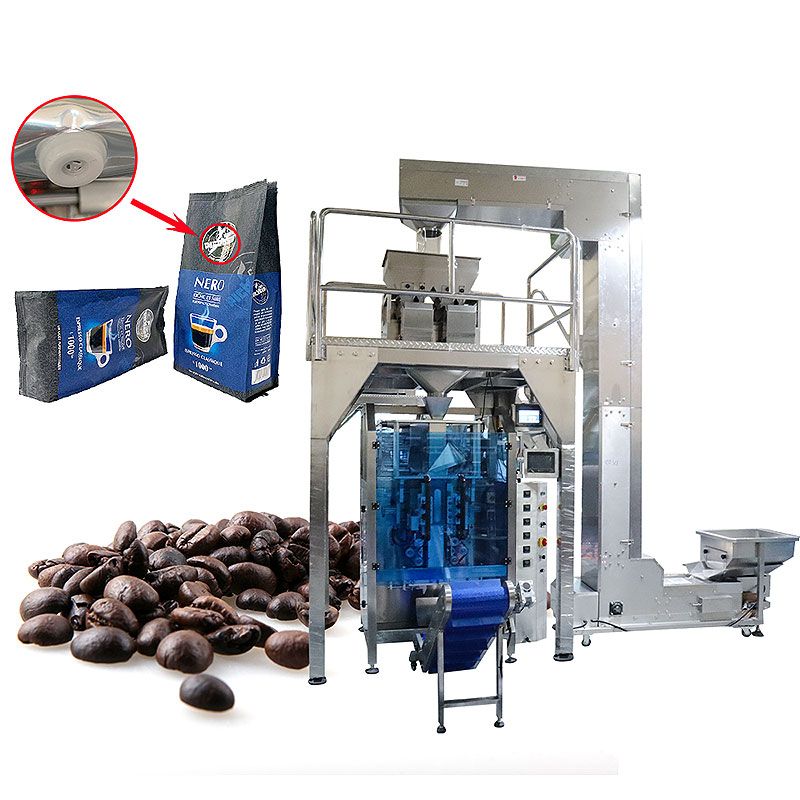

Automatic Granule Roasted Coffee Bean Valve Bag Packing Machine

Automatic Granule Roasted Coffee Bean Valve Bag Packing Machine

Application:

Optimize granule coffee bean packaging with our advanced packing machines, designed for precision and to preserve freshness. Perfect for sealing in flavor and aroma, our machines provide efficient, high-quality packaging solutions tailored to coffee products.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Pillow bag

2. Gusset bag

3. Valve Bag

4. Quad seal bag

5. Brick shape bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. Electrical Box: Features a well-organized circuit layout, providing stable and secure machine operation.

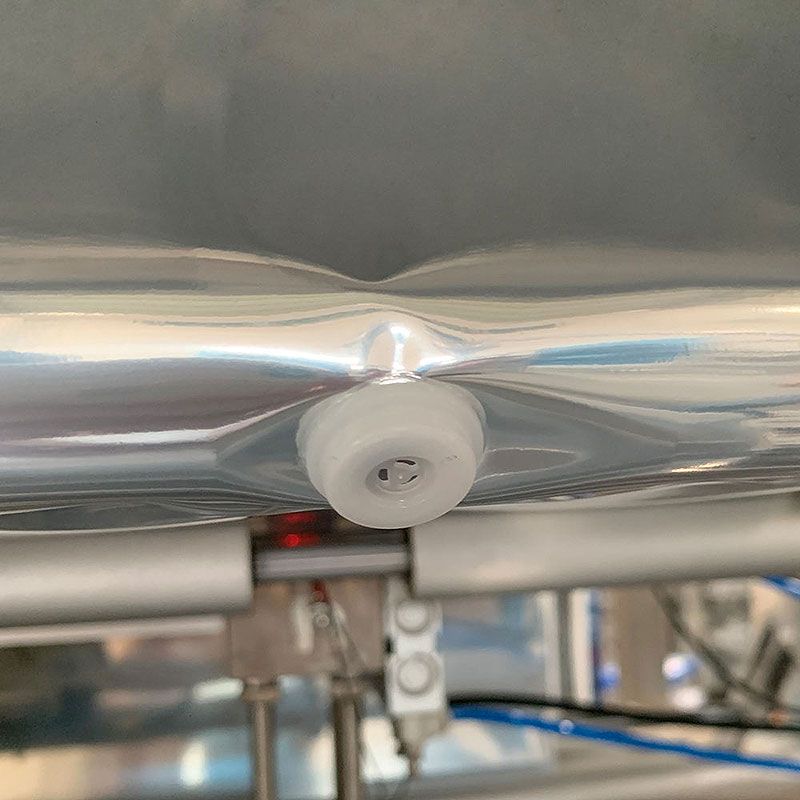

2. Vent Valve: Designed to release carbon dioxide, helping maintain freshness for coffee products.

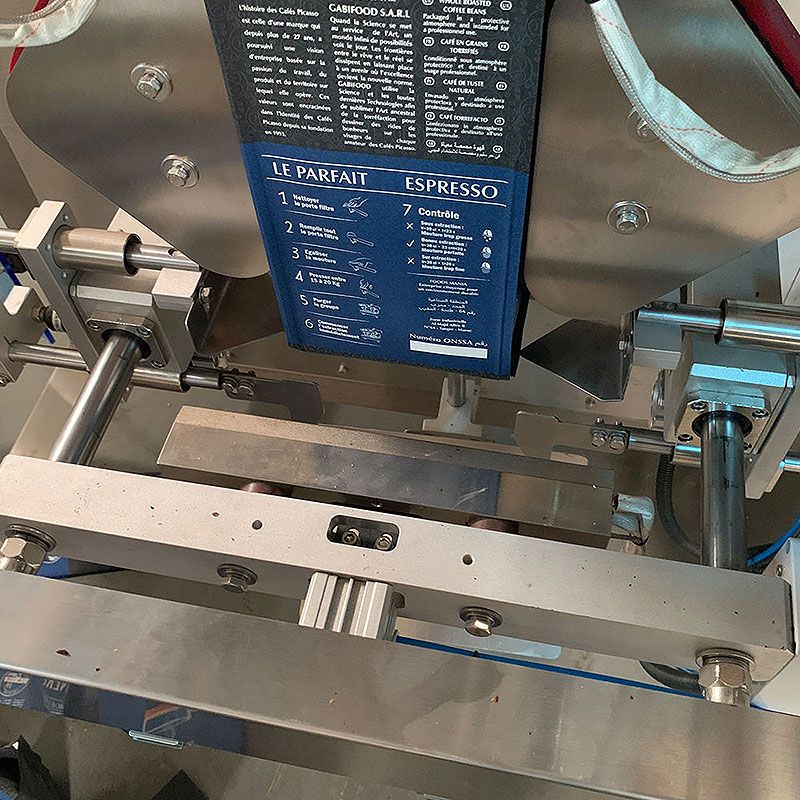

3. Cutting Device: Custom cutting mechanism with specialized sealing for an improved, polished package appearance.

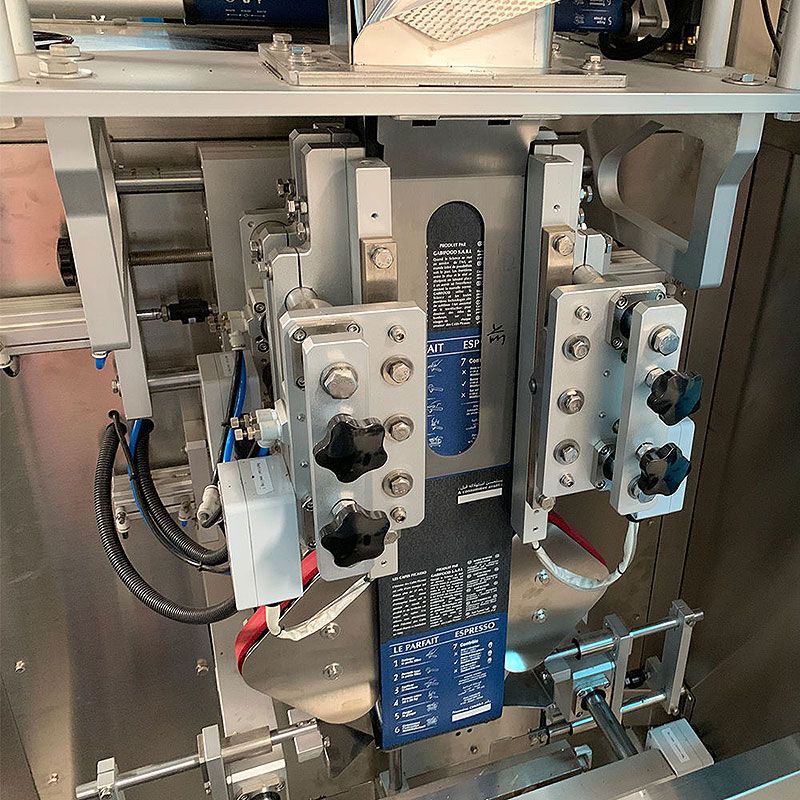

4. Flexible Film Structure: Offers a variety of film structures, enabling versatile and convenient operation for different packaging needs.

5. Reliable Date Printer: Equipped with a high-quality date printer for clear, stable, and precise date marking.

Application:

Model	BP-320A	BP-380A	BP-420A	BP-520A	BP-720A
Packing size	W: 50-150mm	W: 70-200mm	W: 80-200mm	W: 90-250mm	W: 110-350mm
Packing size	L: 50-200mm	L: 50-300mm	L: 50-300mm	L: 80-350mm	L: 100-420mm
Packing speed	20-60 bags/min	10-60 bags/min	15-80 bags/min	30-80 bags/min	10-60 bags/min
Range of measuring	700ml	150-1500ml	150-1500ml	Max 1500ml	Max 4000ml
The max width of packing film	320mm	420mm	420mm	520mm	720mm
Air consumption	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	300L/min 0.8MPa
Main power/voltage	2.7KW/220V 50-60Hz	2.5KW/220V 50-60Hz	2.2KW/220V 50-60Hz	2.2KW/220V 50-60Hz	4.0KW/220V 50-60Hz
Main power/voltage	350KG	450KG	450KG	450KG	800KG
Dimension	(L)1100* (W)800*(H)1940mm	(L)1400(W)970(H)1700mm	(L)1400(W)970(H)1700mm	(L)1480* (W)1200*(H)1700mm	(L)1780(W)1350(H)2000mm
Film thickness	0.04-0.10mm
Bag making mode	Valve bag, Pillow-type bag, Standing bag, Punching device, Link-bag device
Bag making mode	POPP/CPP, POPP/VMCPP, BOBB/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET
