Application:

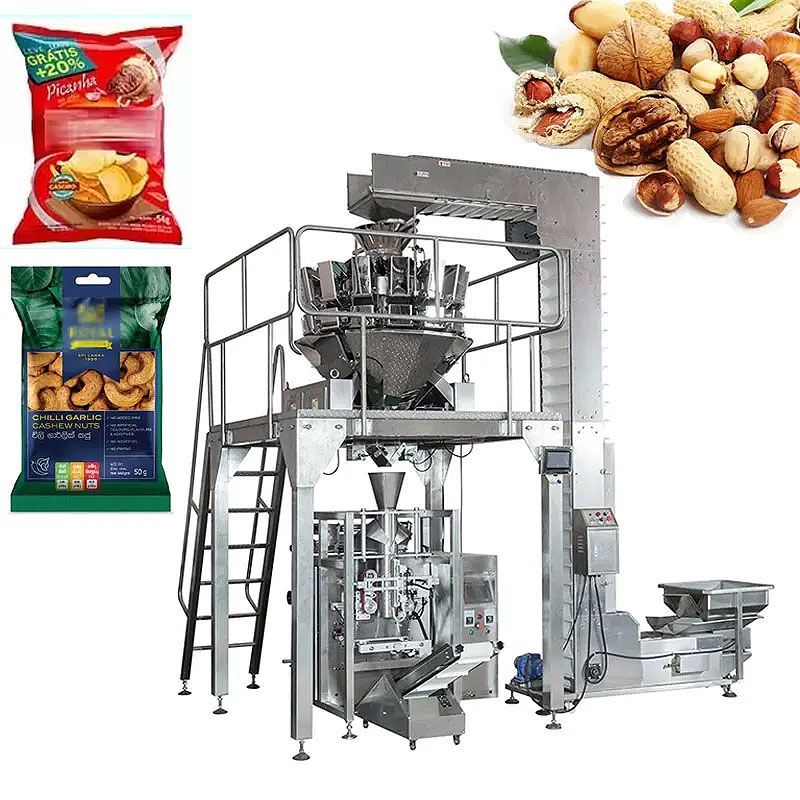

Suitable for irregular, lumpy, and granular materials, including candy, puffed snacks, small biscuits, fried dried fruits, sugar, frozen foods, as well as hardware and plastic products. This machine ensures efficient and reliable packaging for various types of products.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Quad seal bag
4. Link bag
5. Bag with hanging hole
6. Bag with easy tear notch
Features:
1. Hygienic and Safe Design: Constructed from 304 stainless steel, the equipment complies with food QS and pharmaceutical GMP hygiene standards. It also integrates safety features that align with enterprise-level safety management protocols.
2. Precise Temperature Control: The independent temperature control system ensures consistent and accurate temperature regulation, delivering smooth, high-quality seals every time.

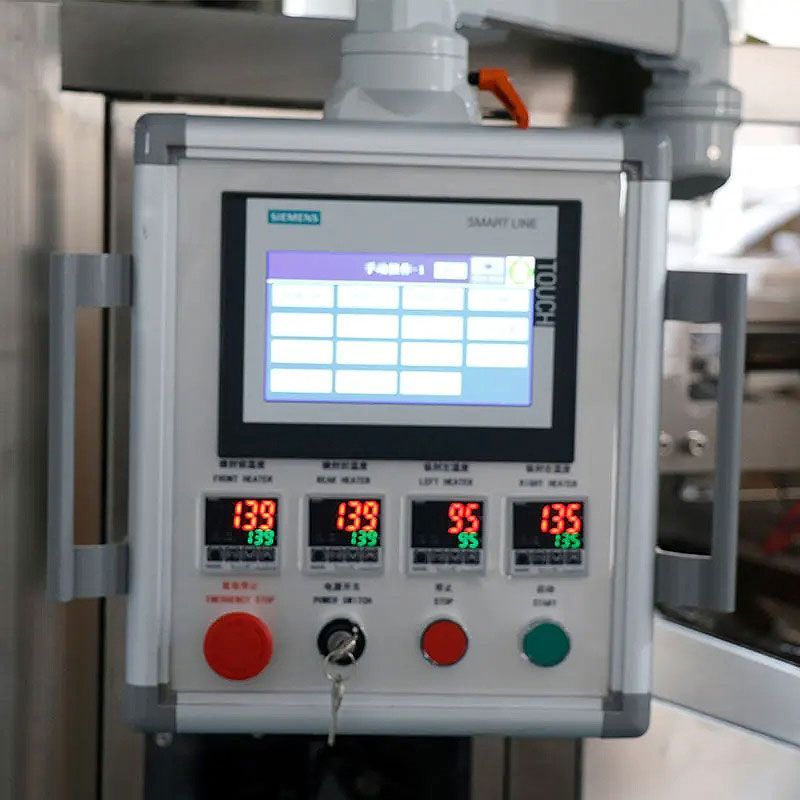

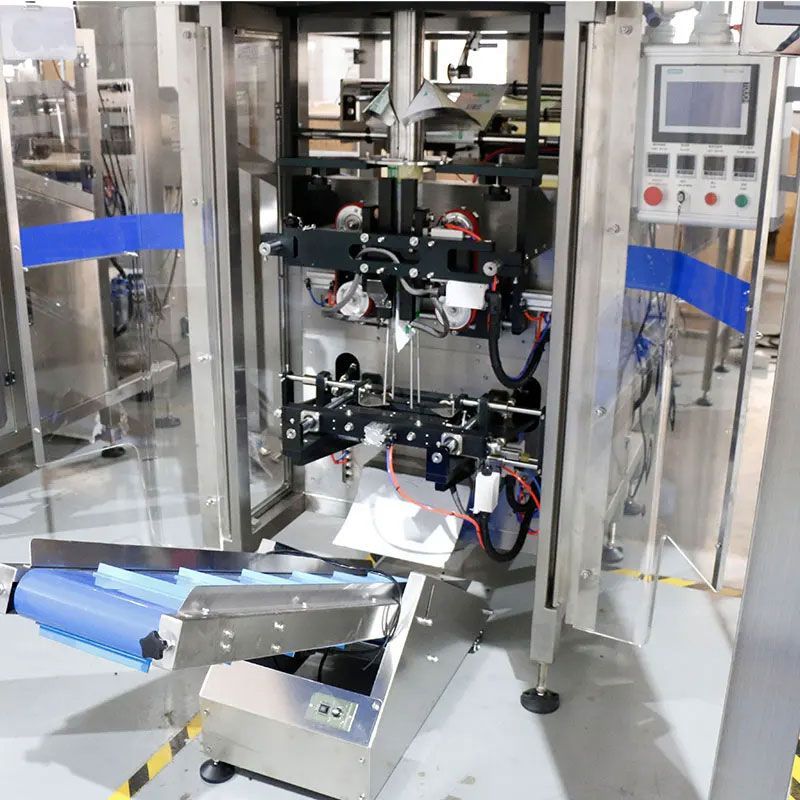

3. Intelligent Automation: Equipped with a servo motor film feeding system, PLC control, and a user-friendly touchscreen interface, this machine provides automated, reliable, fast, and efficient operation.
4. Automatic Adjustment Features: The dual-belt film feeding and color code control systems can be automatically adjusted via the touch screen, streamlining the sealing process and correcting any incision deviations without manual intervention.
5. Versatile Functionality: The touchscreen interface stores multiple packaging process parameters, allowing seamless switching between different product types without the need for manual adjustments.
6. Customizable Options: Designed for flexibility, the equipment can be tailored to meet the specific needs of various food and pharmaceutical products, offering high adaptability and versatility.
Application:
| Model | BP-320A | BP-380A | BP-420A | BP-520A | BP-720A |
| Packing size | W:50-150mm | W:70-200mm | W:80-200mm | W:90-250mm | W:110-350mm |
| L:50-200mm | L:50-300mm | L:50-300mm | L:80-350mm | L:100-420mm | |
| Packing speed | 20-60 bags/min | 10-60 bags/min | 15-80 bags/min | 30-80 bags/min | 10-60 bags/min |
| Range of measuring | 700ml | 150-1500ml | 150-1500ml | Max 1500ml | Max 4000ml |
| The max width of packing film | 320mm | 420mm | 420mm | 520mm | 720mm |
| Air consumption | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 300L/min 0.8MPa |
| Main power/voltage | 2.7KW/220V 50-60Hz | 2.5KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 4.0KW/220V 50-60Hz |
| Main power/voltage | 350KG | 450KG | 450KG | 450KG | 800KG |
| Dimension | (L)1100* (W)800*(H)1940mm | (L)1400*(W)970*(H)1700mm | (L)1400*(W)970*(H)1700mm | (L)1480* (W)1200*(H)1700mm | (L)1780*(W)1350*(H)2000mm |
| Film thickness | 0.04-0.10mm | ||||
| Bag making mode | Pillow-type bag, Standing bag, punching device, Link-bag device | ||||
| Bag making mode | POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET | ||||
