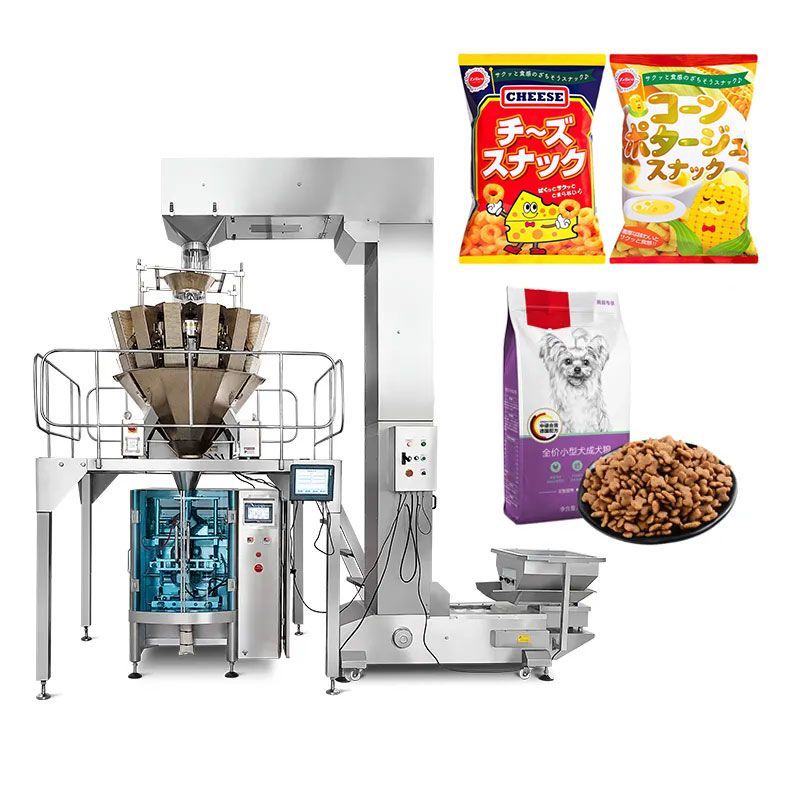

Automatic Multi Heads Weigher Granule Vertical Pouch Bag Packing Machine

Automatic Multi Heads Weigher Granule Vertical Pouch Bag Packing Machine

Application:

Ideal for packaging various granule, sheet, strip, and irregular materials such as candy, melon seeds, chips, peanuts, nuts, preserved fruits, jelly, biscuits, confections, and camphor balls. This machine provides versatile and efficient packaging solutions.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

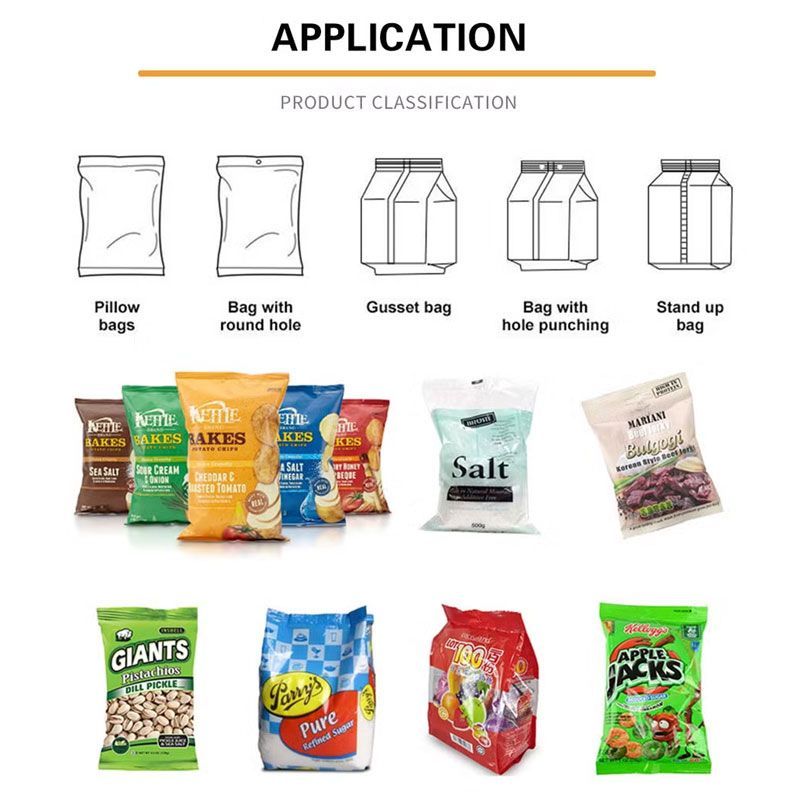

Bag Shape Options:

1. Pillow bag

2. Gusset bag

3. Flat bottom stand up bag

4. Quad seal stand up bag

5. Brick shape bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. Premium Stainless Steel Construction: Made of 304 stainless steel, ensuring durability and hygiene. Easily adapts to different bag sizes by changing the mold.

2. Advanced Heat Sealing: Features intelligent PID constant temperature control and an independent temperature system, combined with a sophisticated cutting mechanism, delivering precise and aesthetically pleasing bag results.

3. User-Friendly Interface: Multilingual operation reduces errors and simplifies use, with fully adjustable parameters for flexible settings.

4. High Filling Accuracy: Ensures precise filling, followed by automatic sealing and unloading, meeting exact weight specifications efficiently.

5. Smooth Film Handling: Equipped with multiple film-penetrating shafts for stable, smooth film pulling, resulting in well-formed and visually appealing bags.

Application:

Model	BP-320A	BP-380A	BP-420A	BP-520A	BP-720A
Packing size	W: 50-150mm	W: 70-200mm	W: 80-200mm	W: 90-250mm	W: 110-350mm
Packing size	L: 50-200mm	L: 50-300mm	L: 50-300mm	L: 80-350mm	L: 100-420mm
Packing speed	20-60 bags/min	10-60 bags/min	15-80 bags/min	30-80 bags/min	10-60 bags/min
Range of measuring	700ml	150-1500ml	150-1500ml	Max 1500ml	Max 4000ml
The max width of packing film	320mm	420mm	420mm	520mm	720mm
Air consumption	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	300L/min 0.8MPa
Main power/voltage	2.7KW/220V 50-60Hz	2.5KW/220V 50-60Hz	2.2KW/220V 50-60Hz	2.2KW/220V 50-60Hz	4.0KW/220V 50-60Hz
Main power/voltage	350KG	450KG	450KG	450KG	800KG
Dimension	(L)1100* (W)800*(H)1940mm	(L)1400(W)970(H)1700mm	(L)1400(W)970(H)1700mm	(L)1480* (W)1200*(H)1700mm	(L)1780(W)1350(H)2000mm
Film thickness	0.04-0.10mm
Bag making mode	Pillow-type bag, Standing bag, punching device, Link-bag device
Bag making mode	POPP/CPP, POPP/VMCPP, BOBB/P E, PET/VMPET/PE, PET/AL/PE ,NY/PE ,PET/PET
