Application:
Suitable for packing granule foods like puffed snacks, potato chips, coffee beans, crispy rice, jelly, candy, pistachios, apple slices, banana chips, frozen foods, vegetable salads, dumplings, glutinous rice balls, chocolate, pet food, as well as hardware items, medicines, and more.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

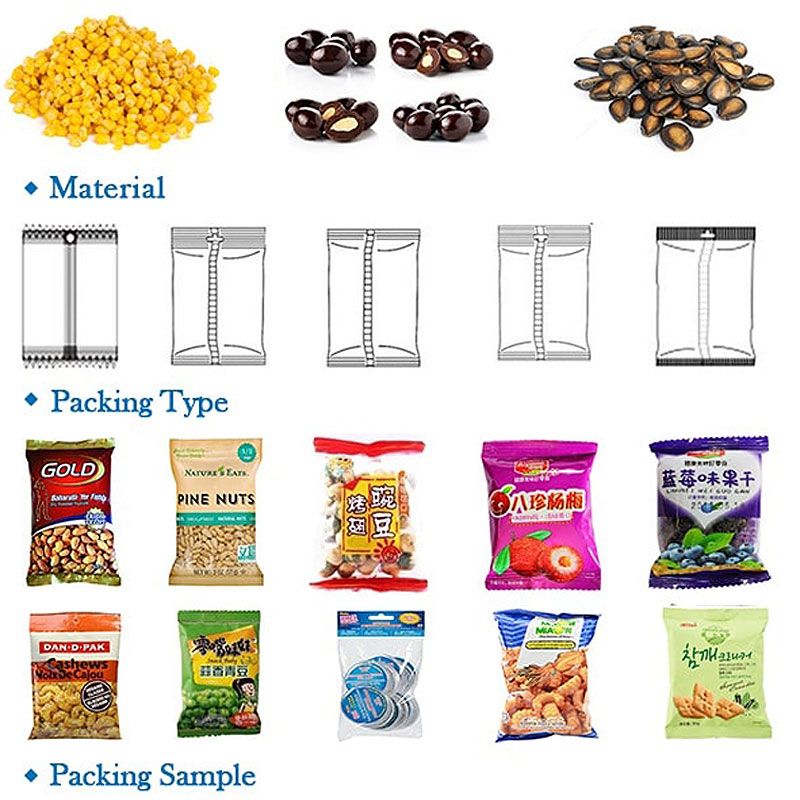

Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Modern Design: Featuring a sleek look with an optimized structure and the latest technological enhancements.
2. Advanced PLC System: Imported PLC computer control with a color touch screen ensures user-friendly, efficient, and intuitive operation.
3. High-Precision Film Transport: Uses an imported film transport system and color mark sensor for precise positioning, exceptional performance, and aesthetically pleasing packaging.
4. Comprehensive Alarm Protection: Multiple automatic alarms are integrated to minimize potential damage and ensure safety.
5. Flexible Bag Options: Offers a variety of bag styles, including pillow bags, pouches, hole-punched bags, and joint bags, meeting diverse customer needs.
6. All-in-One Operation: Controlled by a touch screen and stable PLC, enabling seamless completion of bag-making, measuring, filling, sealing, coding, and cutting in one step.
7. Servo Motor Precision: Film handling is powered by a servo motor, allowing for high-precision positioning and exact sizing.
8. Easy Film Installation: Designed with an external film release mechanism for simple and convenient film installation.
9. Automated Sealing and Deviation Adjustment: Vertical sealing process with automatic deviation correction, significantly reducing manual labor.
Application:
| Model | BP-320A | BP-380A | BP-420A | BP-520A | BP-720A |
| Packing size | W:50-150mm | W:70-200mm | W:80-200mm | W:90-250mm | W:110-350mm |
| L:50-200mm | L:50-300mm | L:50-300mm | L:80-350mm | L:100-420mm | |
| Packing speed | 20-60 bag/min | 10-60 bag/min | 15-80 bag/min | 30-80 bag/min | 10-60 bag/min |
| Range of measuring | 700ml | 150-1500ml | 150-1500ml | Max 1500ml | Max 4000ml |
| The max width of packing film | 320mm | 380mm | 420mm | 520mm | 720mm |
| Air consumption | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 300L/min 0.8MPa |
| Main power/voltage | 2.7KW/220V 50-60Hz | 2.5KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 4.0KW/220V 50-60Hz |
| Main power/voltage | 350KG | 450KG | 450KG | 450KG | 800KG |
| Dimension | (L)1100* (W)800*(H)1940mm | (L)1400*(W)970*(H)1700mm | (L)1400*(W)970*(H)1700mm | (L)1480* (W)1200*(H)1700mm | (L)1780*(W)1350*(H)2000mm |
| Film thickness | 0.04-0.10mm | ||||
| Bag making mode | Pillow-type bag, Standing bag, punching device,Link-bag device | ||||
| Bag making mode | POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET | ||||
