Application:

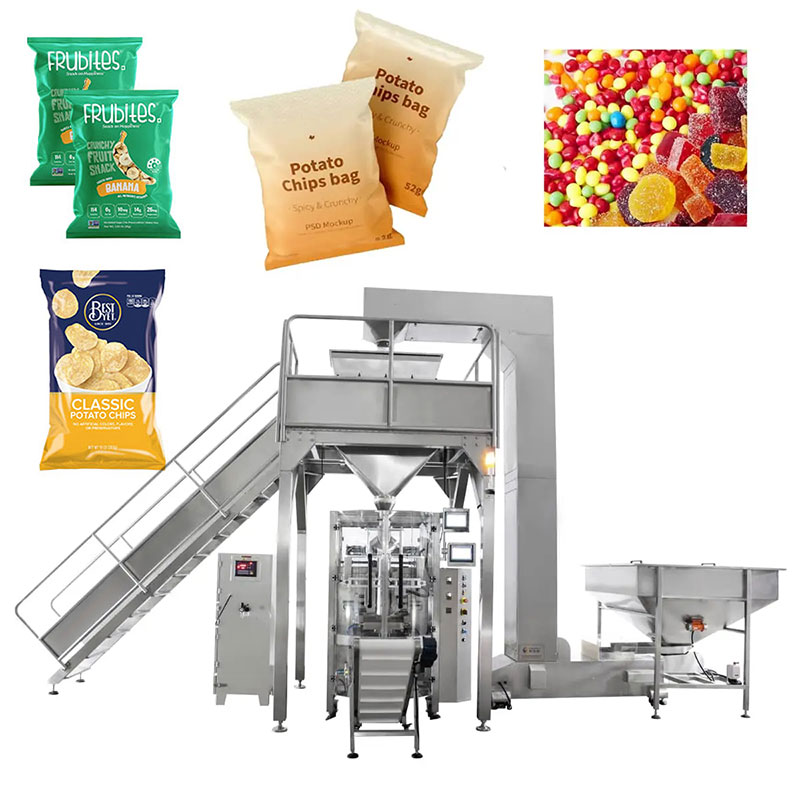

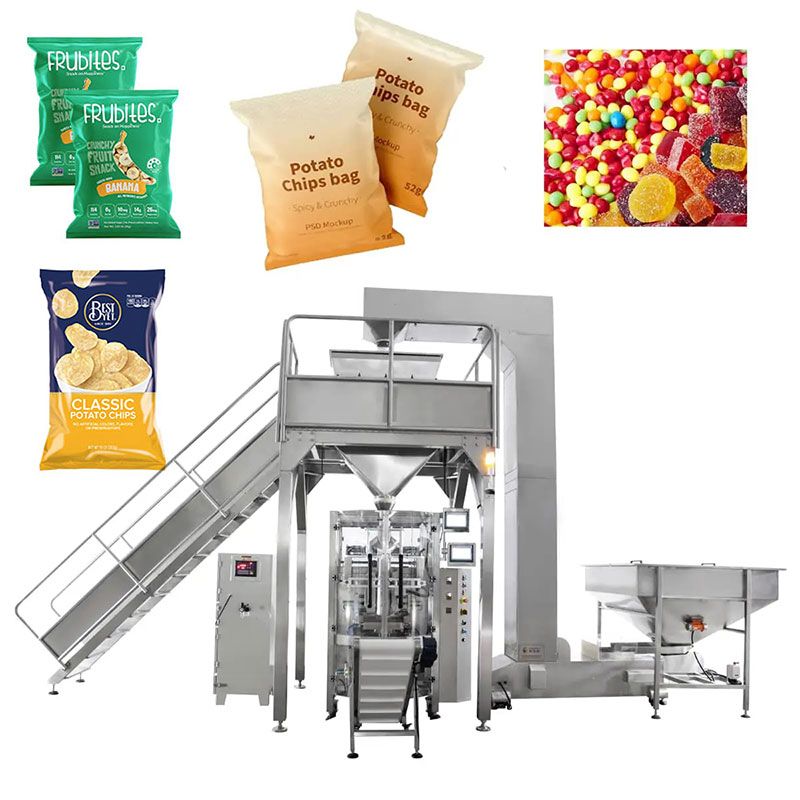

Ideal for packing granule foods such as puffed snacks, potato chips, coffee beans, crispy rice, jelly, candy, pistachios, apple slices, banana chips, frozen foods, vegetable salads, dumplings, glutinous rice balls, chocolate, pet food, as well as hardware items, medicines, and more.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

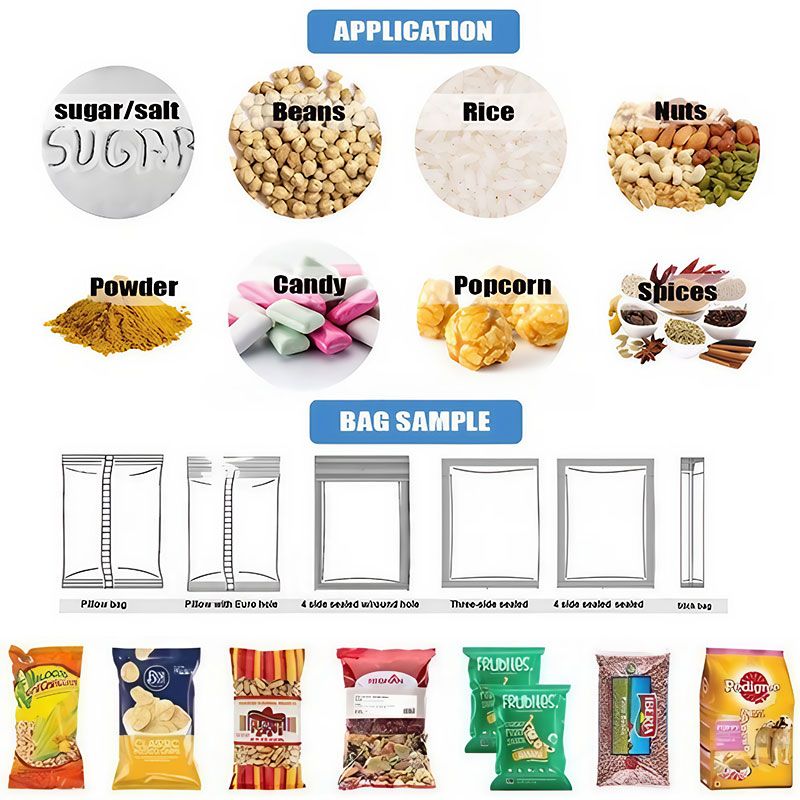

Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Precision Weigher: Expertly crafted to ensure accurate and consistent weighing for each package.
2. User-Friendly Touch Screen: This intuitive servo-driven interface has multifunctional controls for enhanced stability and ease of use.

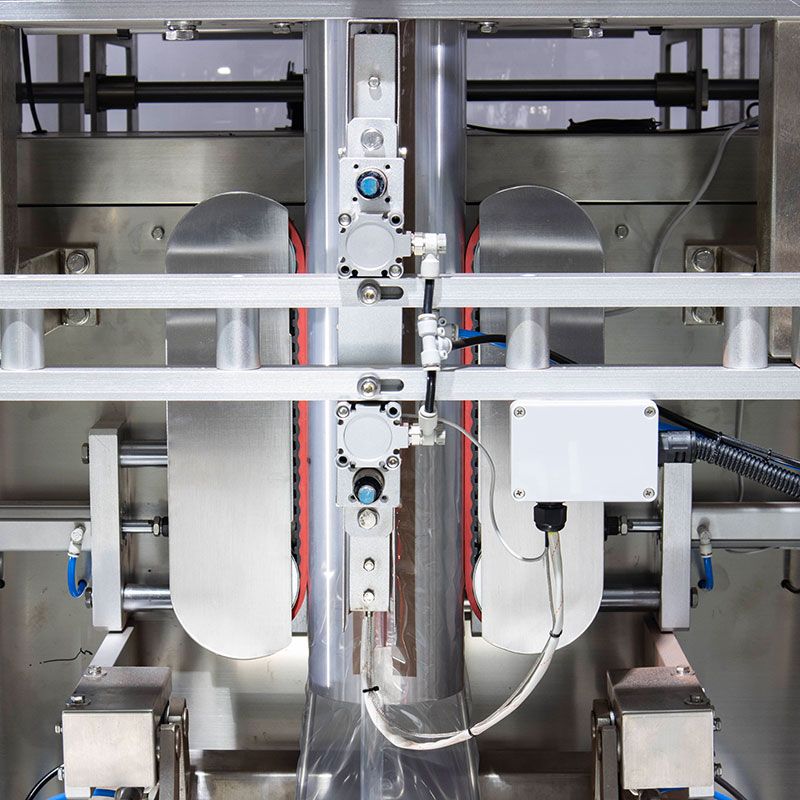

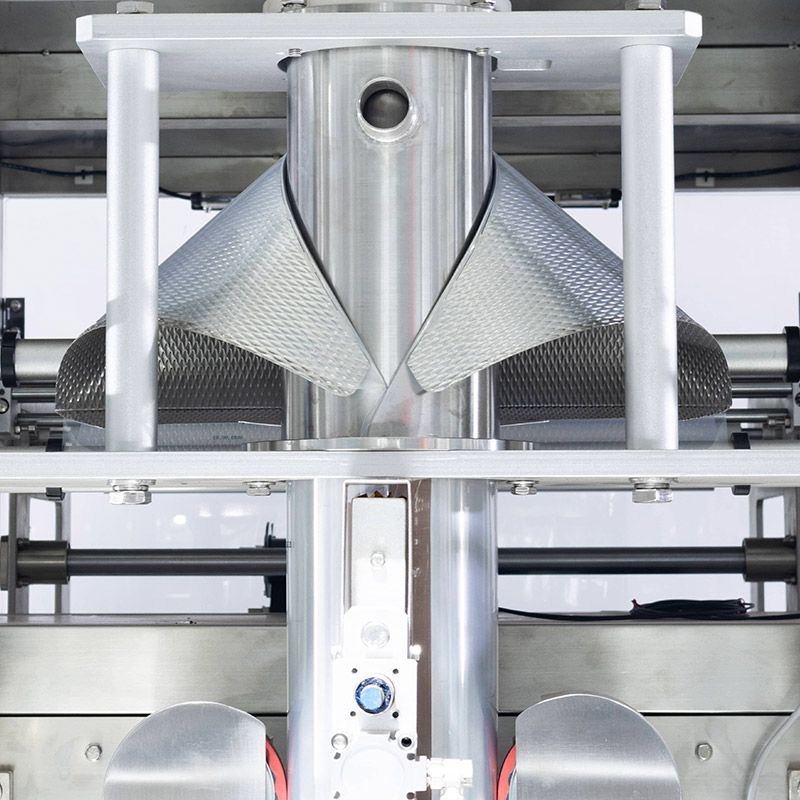

3. Versatile Film Release Structure: Offers multiple film release options, allowing flexible and convenient handling for various packaging needs.

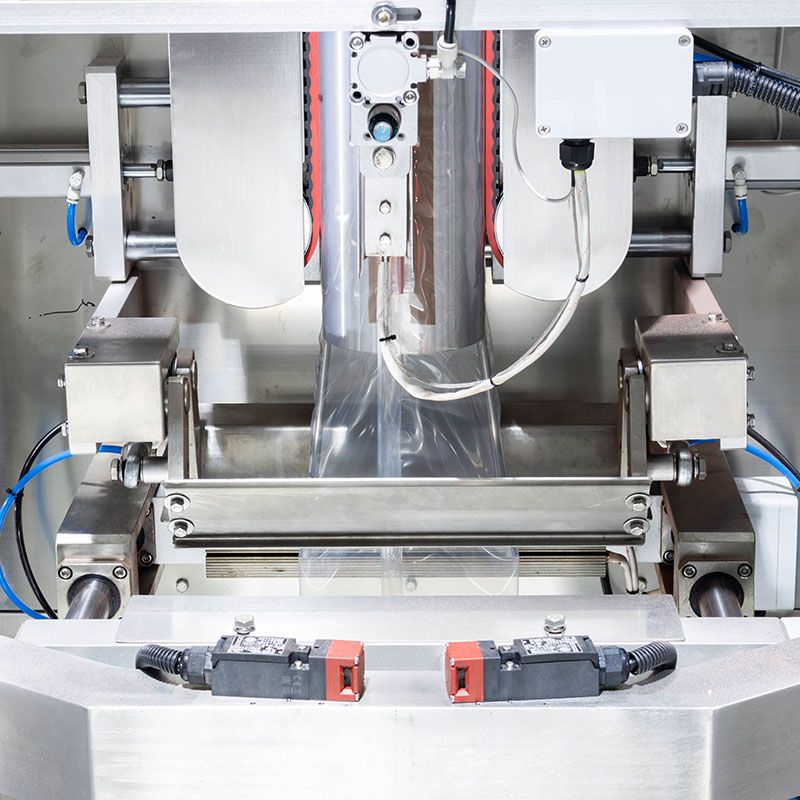

4. High-Speed Sealing System: Reinforced membrane design increases sealing efficiency and accelerates processing speed.
5. Specialized Cutter: Custom cutter with advanced sealing technology for a cleaner, more refined package appearance.
Application:
| Model | BP-620 |
| Packing size | L: 100-400mm, W: 150-300mm |
| Packing speed | 10-55 bags/min |
| The max width of packing film | 620mm |
| Gas Consumption | 0.65 m³/min |
| Air Pressure | 0.65 Mpa |
| Main power/voltage | 220V, 50HZ, Single Phase, 4.5KW |
| Weight | 710KG |
| Dimension | 1860*1400*1880mm (L*W*H) |
| Bag making mode | Pillow-type bag, Standing bag, punching device, Link-bag device |
| Complex Film | POPP/CPP, POPP/VMCPP, BOBB/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET |
