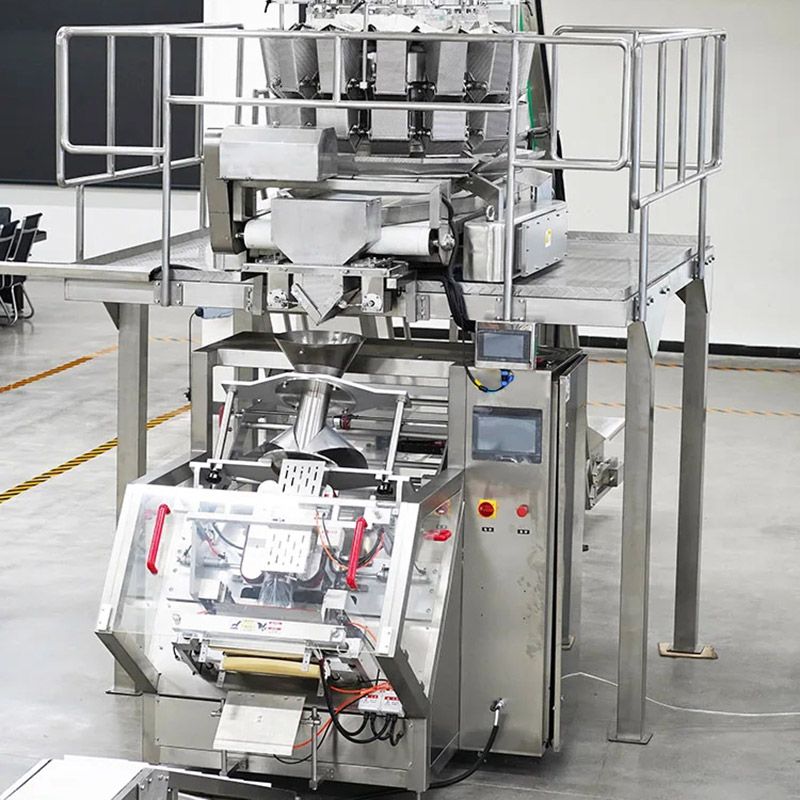

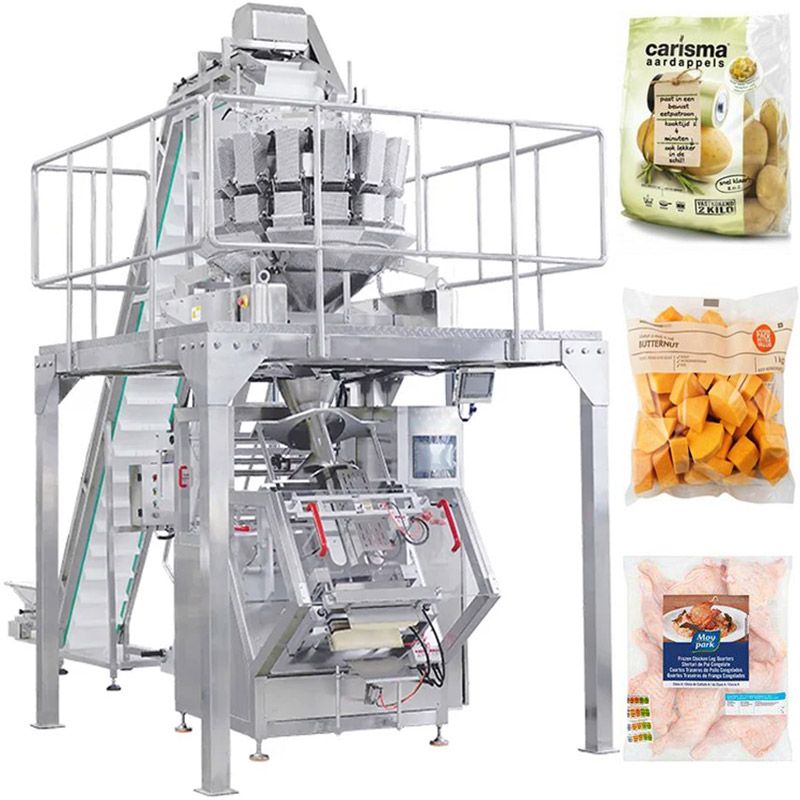

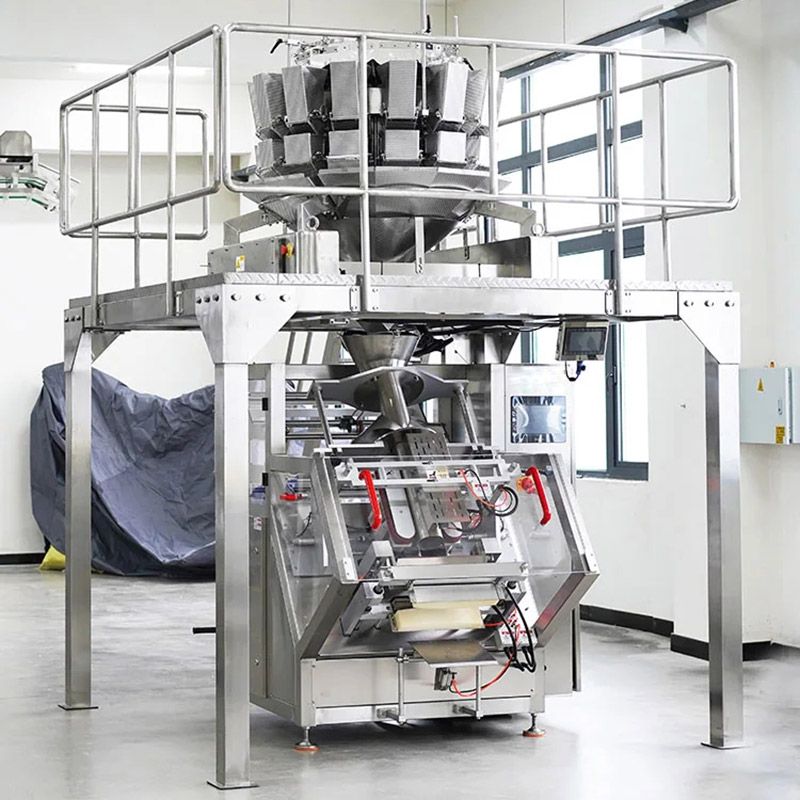

Inclined VFFS Packaging Machine For Fragile Products and Heavier Product

Inclined VFFS Packaging Machine For Fragile Products and Heavier Product

Application:

This application is ideal for packing both heavy and fragile products. The inclined packing process minimizes impact, making it suitable for items like live fish, frozen poultry, seafood, and heavy hardware. It also integrates seamlessly with weighing and metering systems for delicate items such as frozen dumplings, fruits, baked goods, and pastries.

Kindly Reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Stick bag

2. Three side sealing sachet

3. Four side sealing sachet

4. Small pillow bag

5. Linked bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. Stainless steel frame.

2. Servo-driven film pulling system.

3. Photo sensor for automatic tracking of eye marks.

4. Hot printer and film feeding system working synchronously.

Application:

Model	BP-730F
Packing speed	20-50 Bags/min
Filling range	200g-2500g
Film thickness	0.05-0.1mm
Maximum width of packaging film	730mm
Air consumption	0.5m³/min
Power	5.5kw
Voltage	380V/50-60hz
Total weight	850kg
Dimension(LWH)	2350x1450x1740mm
