Application:

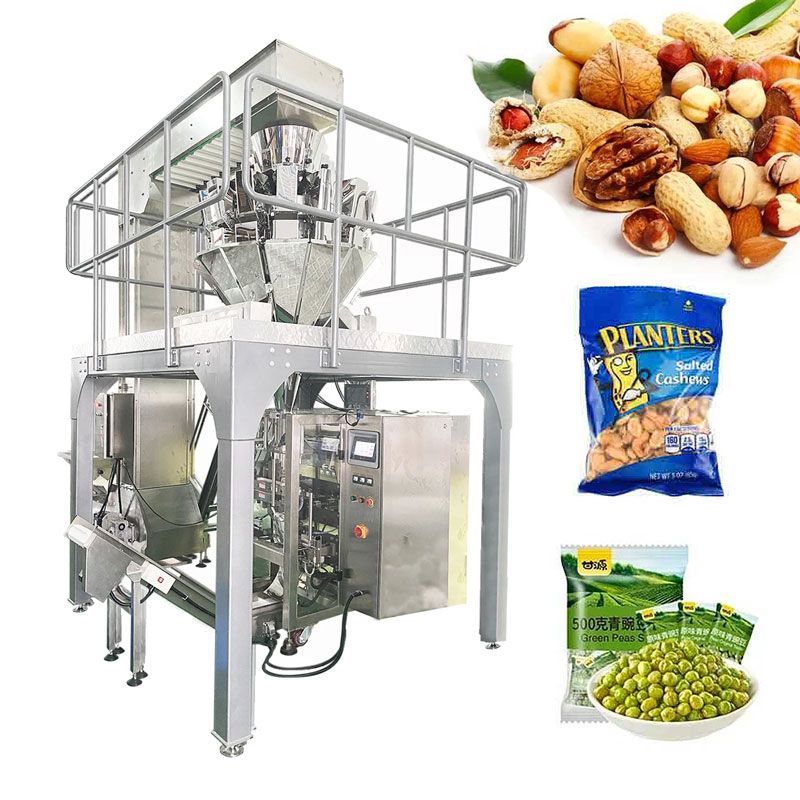

Suitable for all kinds of granular, sheet, strip, and irregular materials, including candy, melon seeds, chips, peanuts, nuts, preserved fruits, jelly, biscuits, confections, and camphor balls. This machine offers versatile packaging solutions for a wide range of products.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

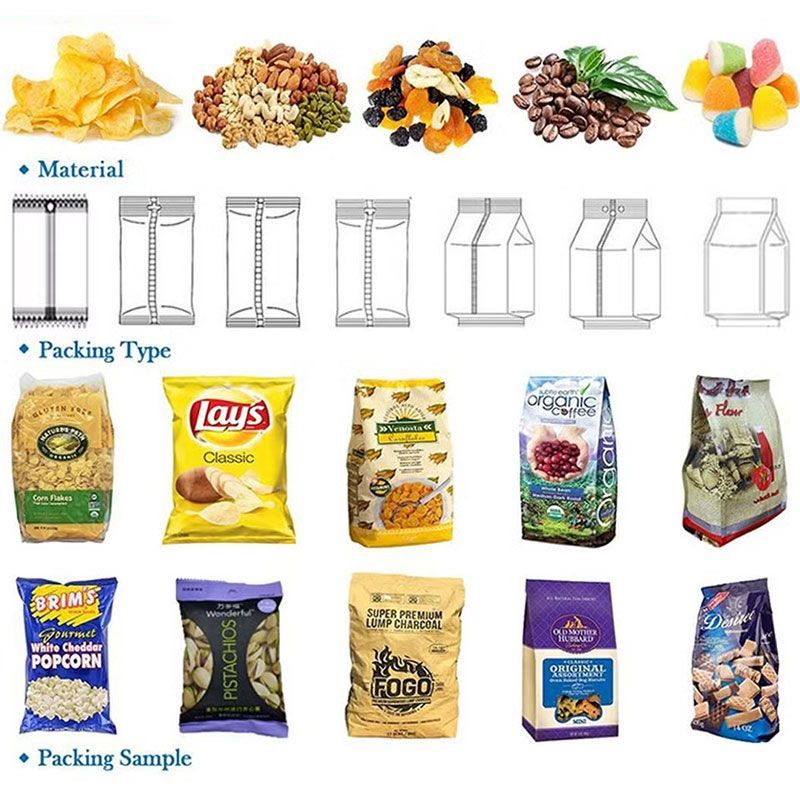

Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Comprehensive Safety Features: Includes built-in safety protection, meeting enterprise safety management standards.
2. Intuitive Control System: Features a PLC and HMI controller for easy operation and maintenance.

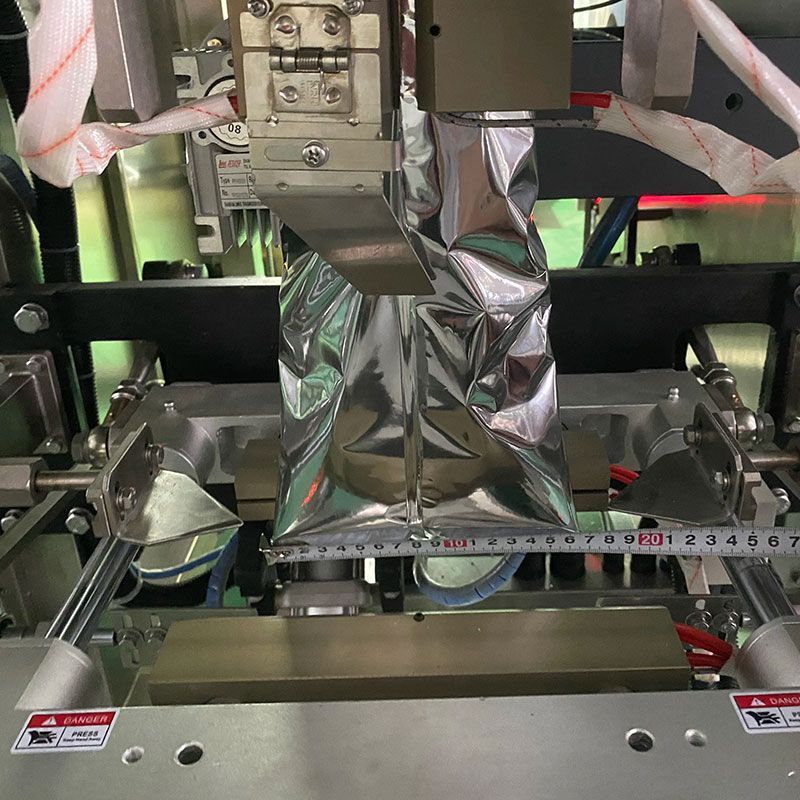

3. Accurate Film Handling: Servo-driven film pulling system with photocell ensures precise cutting positions.
4. Parameter Storage: The touch screen stores settings for various products, eliminating the need for reconfiguration during product changes.
5. Separated Circuit Design: Power and pneumatic controls are housed in separate boxes, reducing noise, enhancing stability, and improving system tightness.

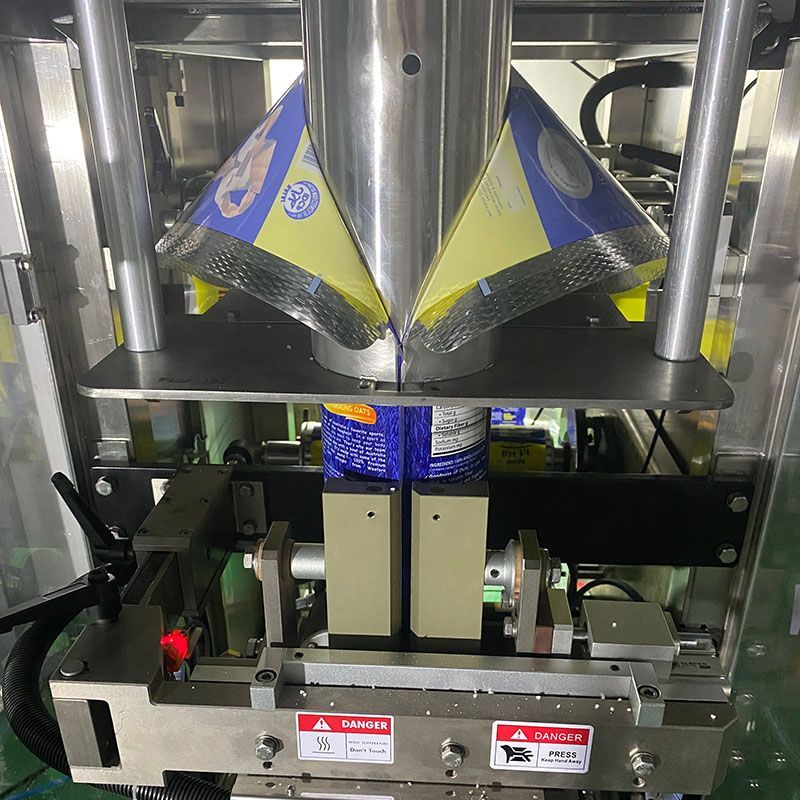

6. Fully Automated Process: Handles product feeding, forming, filling, gas flushing (exhausting), sealing, cutting, date printing, and counting in one continuous workflow.
7. Error Indication System: Built-in error detection helps operators quickly identify and resolve issues.
8. Optional Add-Ons: Supports additional features like gusseted bags, linked bags, and punching devices to meet diverse packaging needs.
Application:
| Model | BP-320A | BP-380A | BP-420A | BP-520A | BP-720A |
| Packing size | W:50-150mm | W:70-200mm | W:80-200mm | W:90-250mm | W:110-350mm |
| L:50-200mm | L:50-300mm | L:50-300mm | L:80-350mm | L:100-420mm | |
| Packing speed | 20-60 bags/min | 10-60 bags/min | 15-80 bags/min | 30-80 bags/min | 10-60 bags/min |
| Range of measuring | 700ml | 150-1500ml | 150-1500ml | Max 1500ml | Max 4000ml |
| The max width of packing film | 320mm | 420mm | 420mm | 520mm | 720mm |
| Air consumption | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 300L/min 0.8MPa |
| Main power/voltage | 2.7KW/220V 50-60Hz | 2.5KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 4.0KW/220V 50-60Hz |
| Main power/voltage | 350KG | 450KG | 450KG | 450KG | 800KG |
| Dimension | (L)1100* (W)800*(H)1940mm | (L)1400*(W)970*(H)1700mm | (L)1400*(W)970*(H)1700mm | (L)1480* (W)1200*(H)1700mm | (L)1780*(W)1350*(H)2000mm |
| Film thickness | 0.04-0.10mm | ||||
| Bag making mode | Pillow-type bag, Standing bag, punching device,Link-bag device | ||||
| Bag making mode | POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET | ||||
