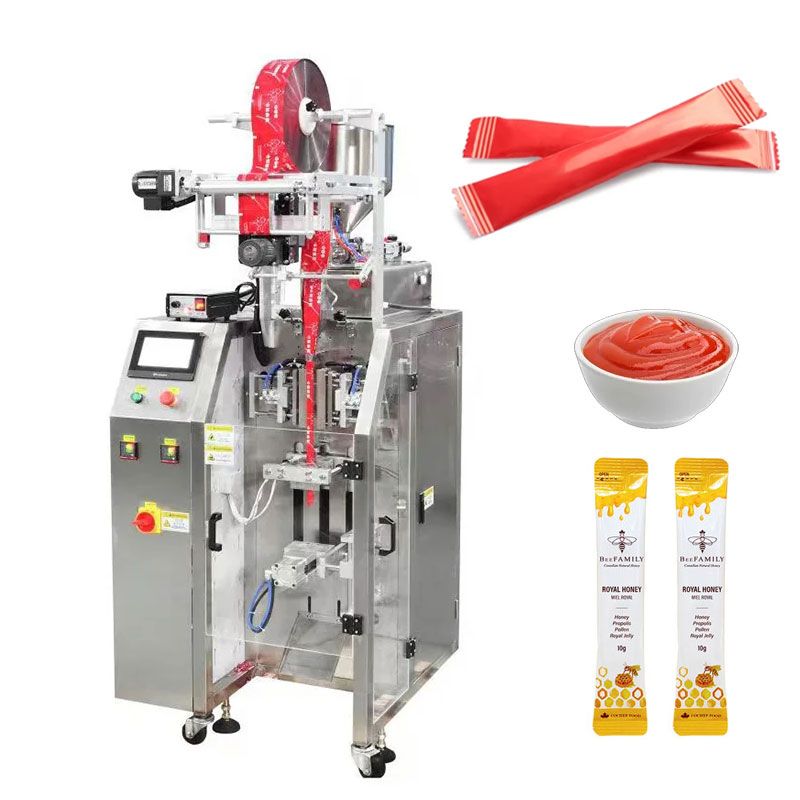

Automatic High Quality Liquid Stick Pouch Packing Machine

Automatic High Quality Liquid Stick Pouch Packing Machine

Application:

Suitable for various liquid products, including skincare items, shampoo, body wash, ketchup, hot sauce, honey, oils, and other liquid packaging. This machine ensures efficient, precise, and reliable packaging for diverse applications.

Kindly Reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Stick bag

2. Three side sealing sachet

3. Four side sealing sachet

4. Small pillow bag

5. Linked bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. Imported Photocell Sensor: Features an advanced optical sensing system for precise measurements and reliable performance.

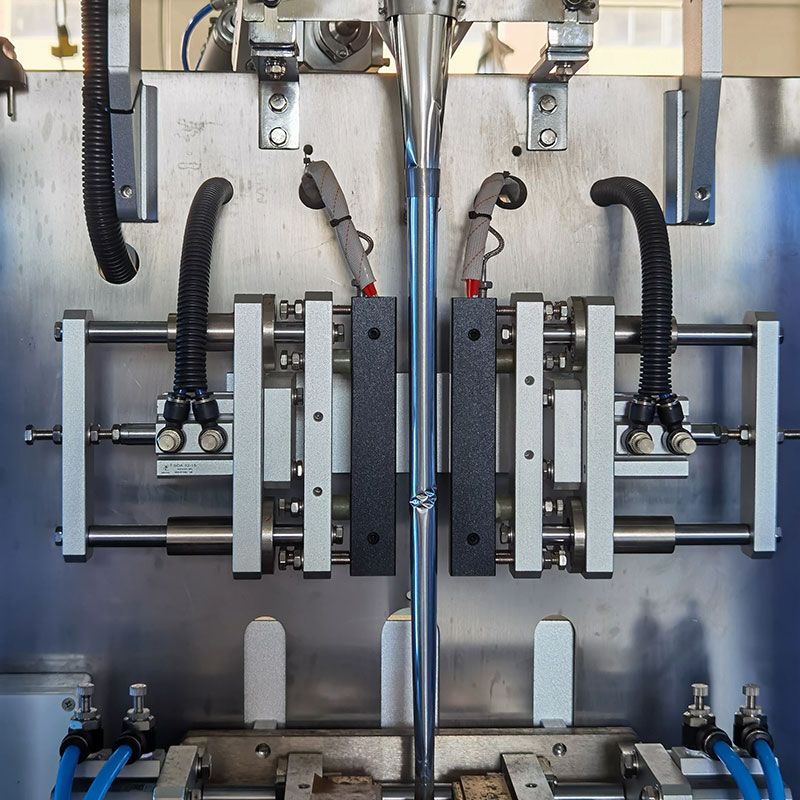

2. High-Precision Bag Former: Articulated structure ensures accurate, high-speed bag forming and sealing, with a positioned stop function to prevent blade sticking and material waste, delivering flawless bag shapes.

3. External Date Printer: Strategically placed for user convenience, with adjustable temperature settings to suit various packaging materials.

4. Heated Metal Cutter: Provides secure sealing to prevent leaks and ensure tight, durable packaging.

Application:

Model	BP-200Y

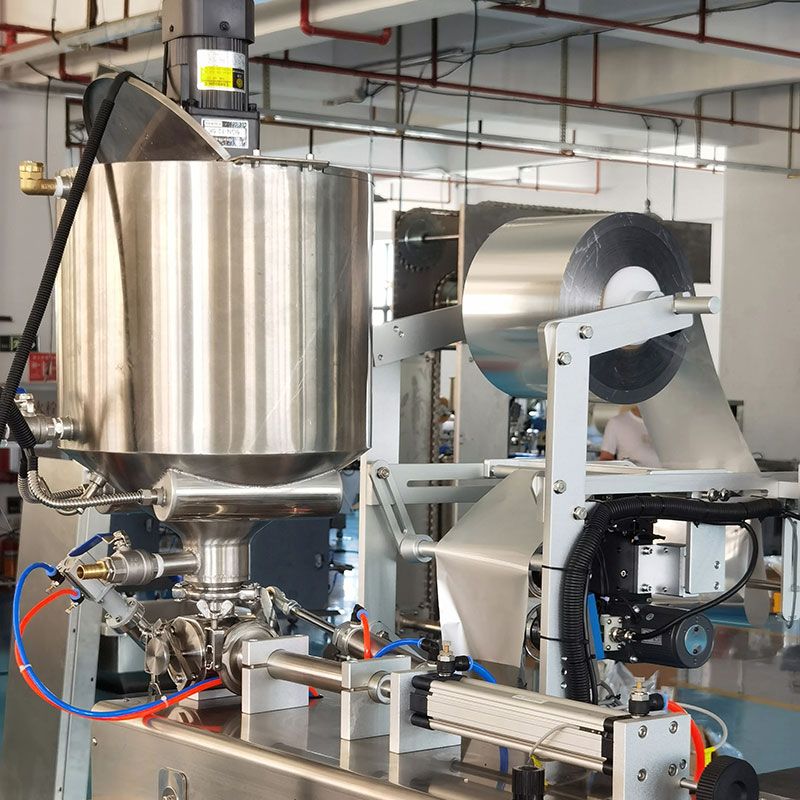

Hopper Capacity	16L
Film width	Max.200mm
Bag length	30-170mm
Bag width	30-170mm
Packing speed	25-35 bags/min
Film thickness	0.04-0.07mm
Power	220V, 50/60Hz, 2.2KW
