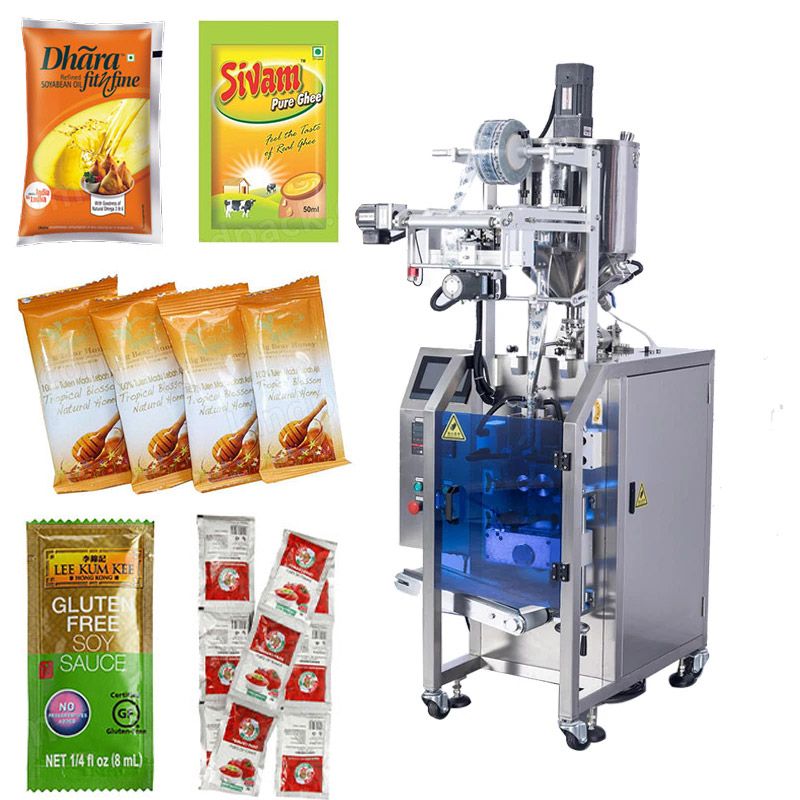

Automatic Liquid Stick Sachet Bag Packing Machine

Automatic Liquid Stick Sachet Bag Packing Machine

Application:

This liquid packing machine is designed for conventional liquid products, including soy sauce, ketchup, chili sauce, shampoo, chocolate sauce, laundry detergent, peanut butter, honey, vitamin-infused waters, fruit juice beverages, and oils.

Kindly Reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Stick bag

2. Three side sealing sachet

3. Four side sealing sachet

4. Small pillow bag

5. Linked bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. The automatic liquid packaging machine is capable of performing multiple tasks automatically, including fastener conveying, measuring, filling, bag making, date printing, heat sealing, and cutting.

2. Equipped with an imported servo film driving system and a color sensor, the machine ensures precise positioning, attractive packaging, and outstanding performance.

3. A constant temperature heating system is integrated, maintaining stable heat with a temperature accuracy of ±1°C.

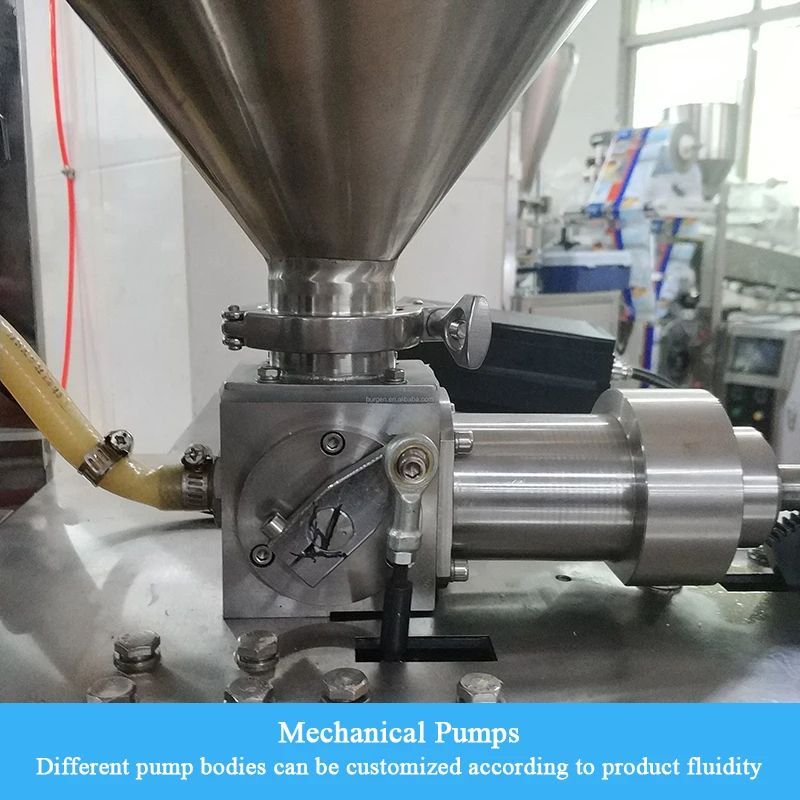

4. The liquid sauce volume is precisely measured by adjusting the cylinder stroke length, ensuring accurate dosing.

Application:

Model	BP-320L	BP-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
*Machine size(LWH)*	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
