Application:

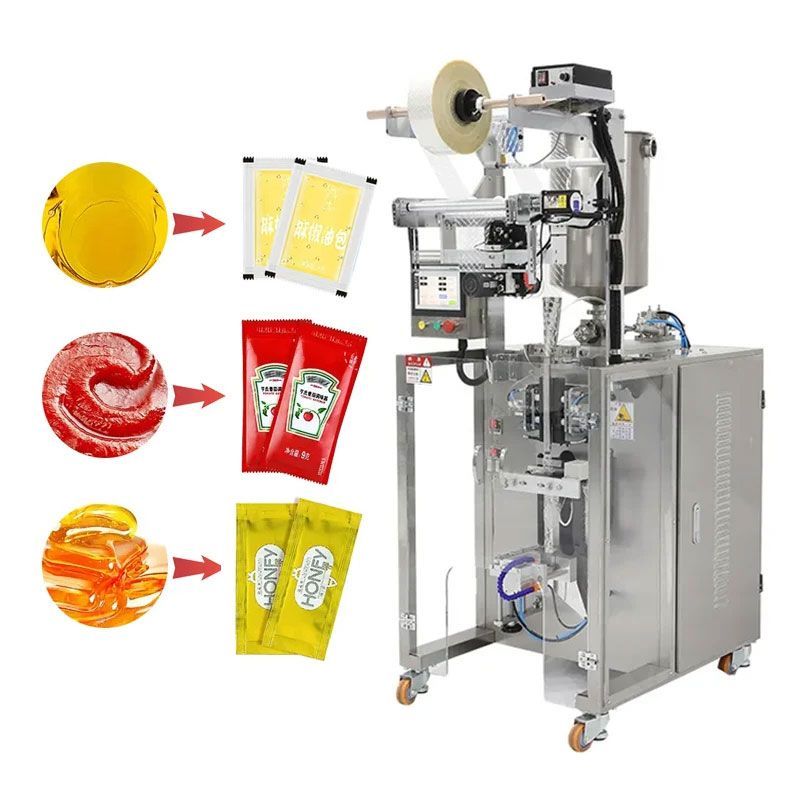

Ideal for automatic liquid packaging, including bean paste, shampoo, shower gel, face cream, soy sauce, pesticides, seasoning oil, chili sauce, tomato sauce, and more. This machine ensures precise and efficient packaging for various liquid products.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Intelligent PLC Control: Equipped with a PLC controller and color touch screen, allowing all parameters to be easily set on the control panel. Supports multiple languages for user convenience.
2. Adjustable Dosing: Features a simple yet precise dosing mechanism that can be adjusted by modifying the pump stroke, ensuring accuracy and flexibility.
3. Smooth Film Handling: Designed with multiple film-penetrating shafts for stable and consistent film pulling, resulting in smoother, more aesthetically pleasing bags.
Application:
| Model | BP-320L | BP-380L |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70 bags/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
