Application:

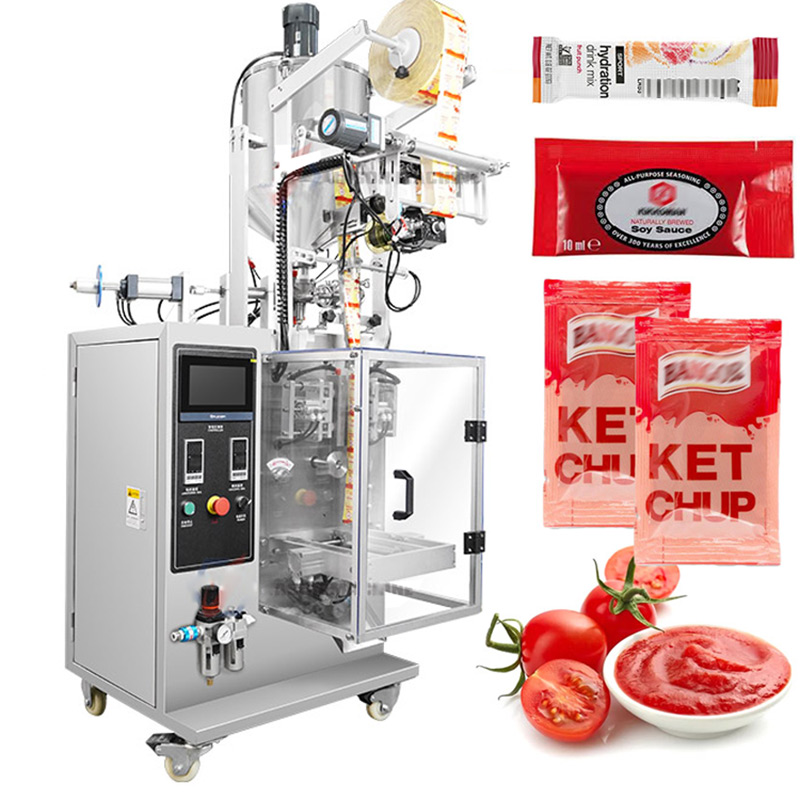

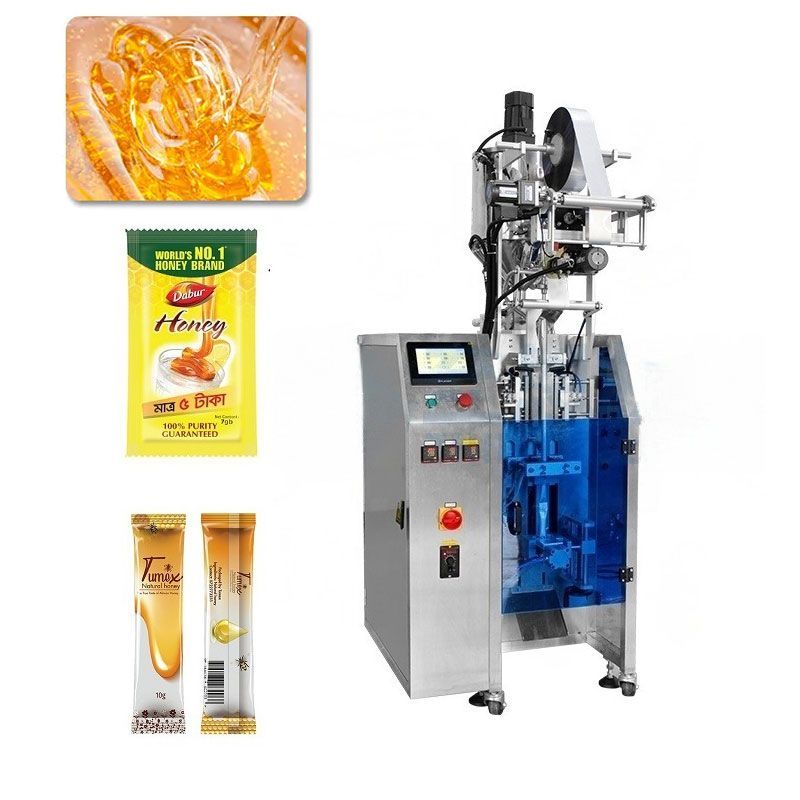

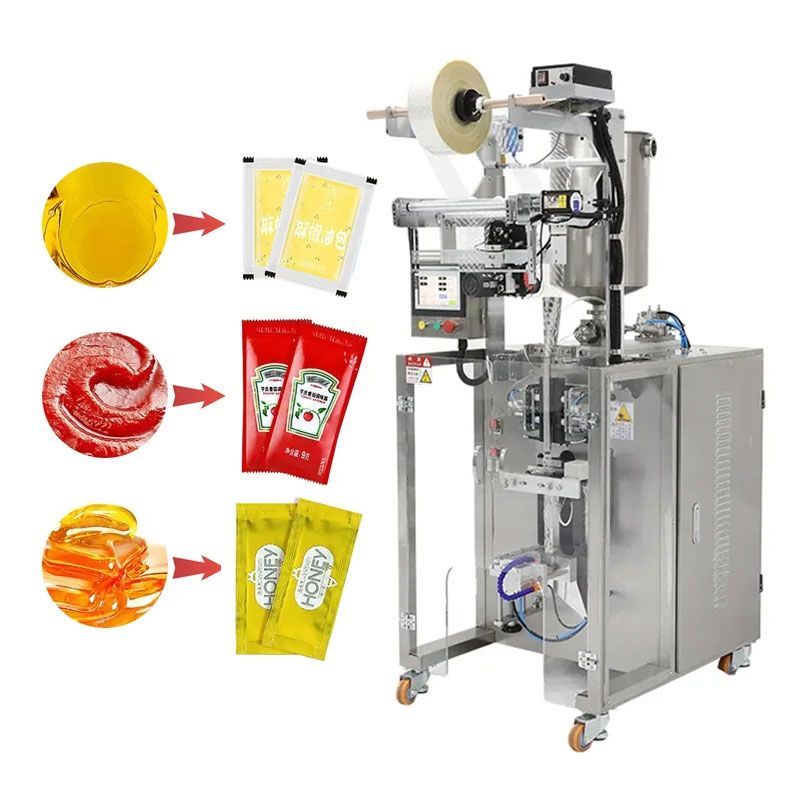

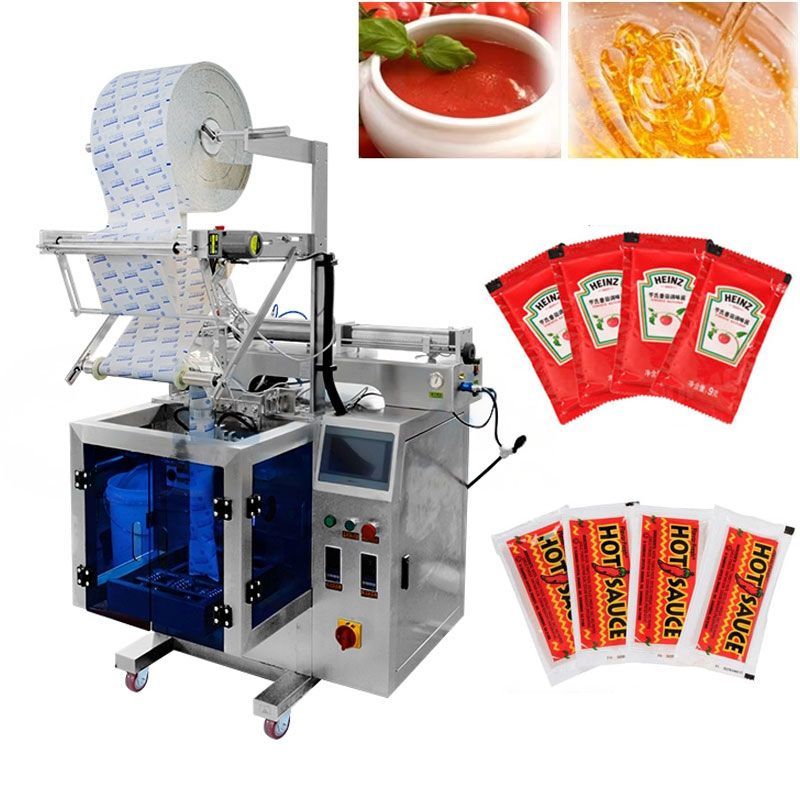

This liquid packing machine is ideal for packaging liquid and pasty products in the food and personal care industries. It effectively handles a variety of items, including ketchup, tartar sauce, barbecue sauce, chili sauce, honey, condensed milk, soy sauce, vinegar, edible oil, jam, juice, enzymes, and daily necessities like laundry detergent, shower gel, shampoo, bleach, and lubricants.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:

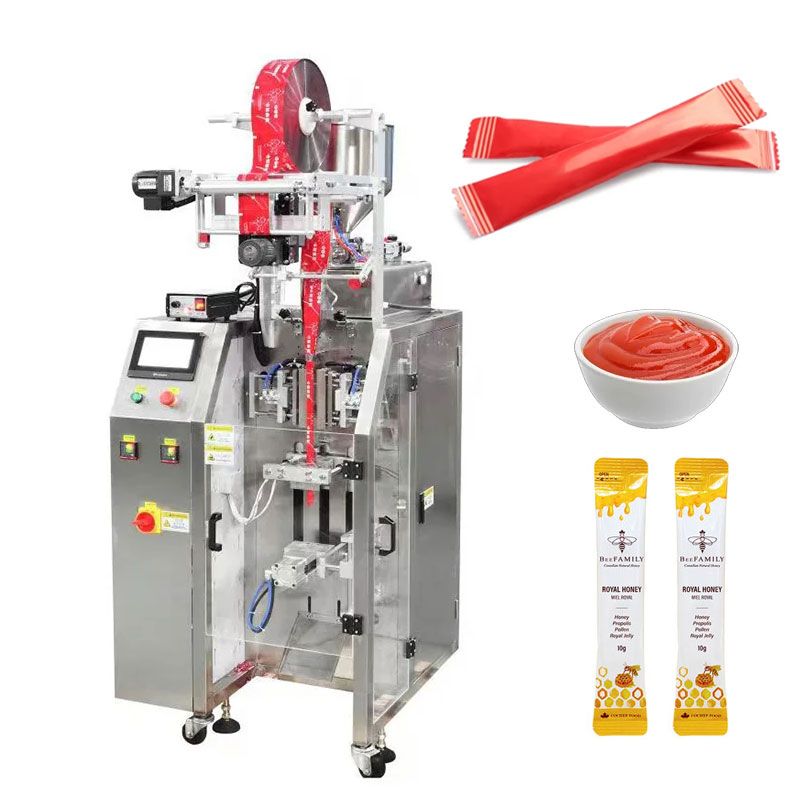

1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:

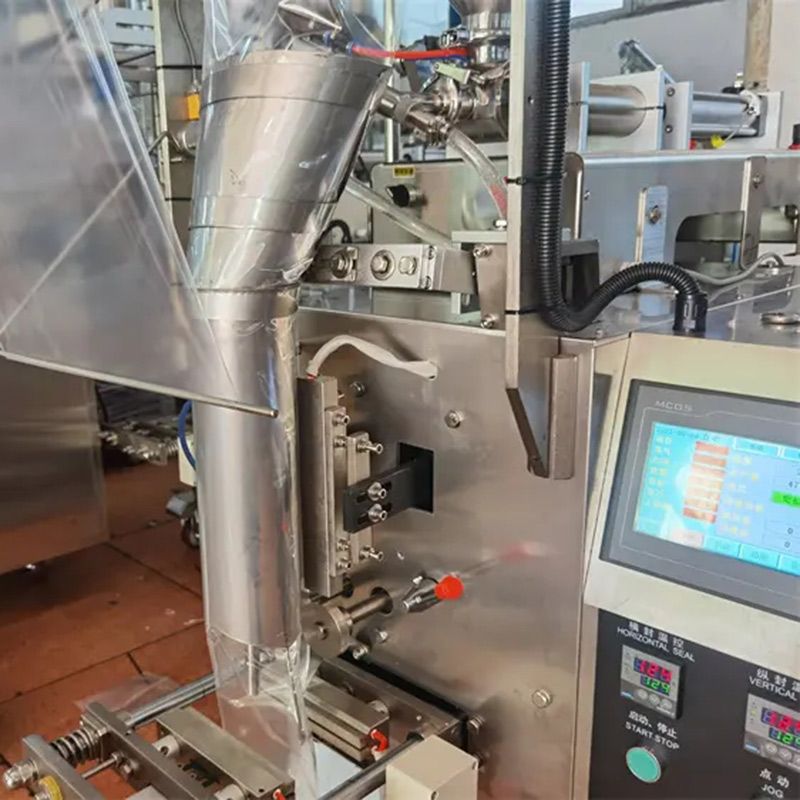

1. The machine features an imported PLC control system and a color touch screen for easy and efficient operation.
2. A noiseless stepping motor enhances stability during operation, reducing vibration and noise levels.
3. Made from fully food-grade stainless steel 304, the machine ensures that packed products remain clean and extends its lifespan.
4. An imported color mark sensor allows for precise cutting positioning, resulting in excellent performance and attractive packaging.
5. Various automatic alarm protection functions are implemented to minimize losses and ensure the machine's quality and durability.
Application:
| Model | BP-320L | BP-380L |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
