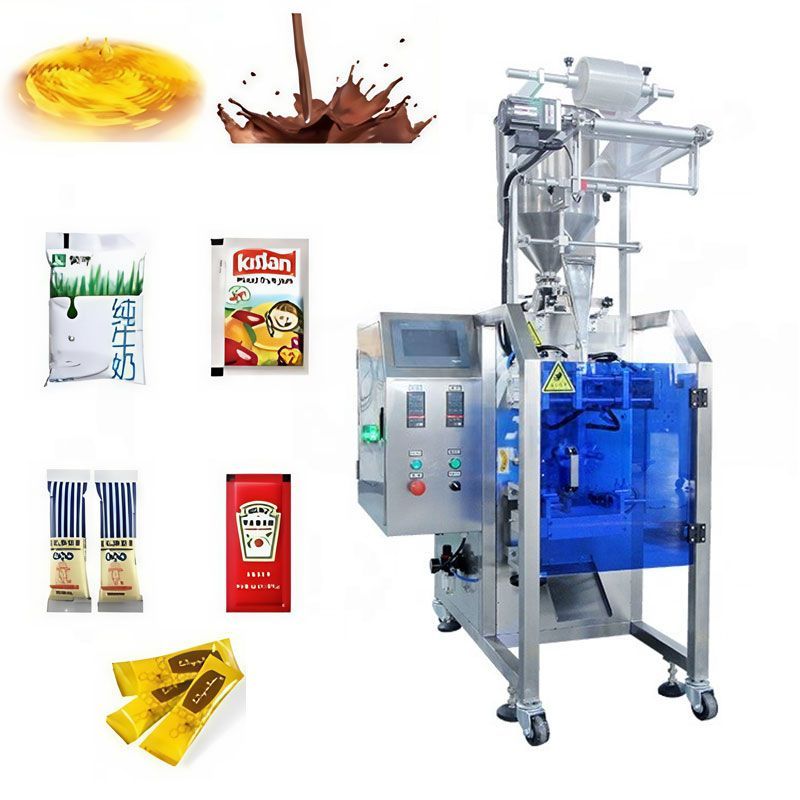

Automatic Vertical Liquid Pouch Sachet Filling Packing Machine

liquid pouch filling and sealing machine

Automatic Vertical Liquid Pouch Sachet Filling Packing Machine

Application:

This liquid packing machine is ideal for liquid and paste products in food and personal care industries, handling ketchup, barbecue sauce, chili sauce, honey, condensed milk, soy sauce, vinegar, edible oil, jam, juice, and more with efficiency.

Kindly Reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

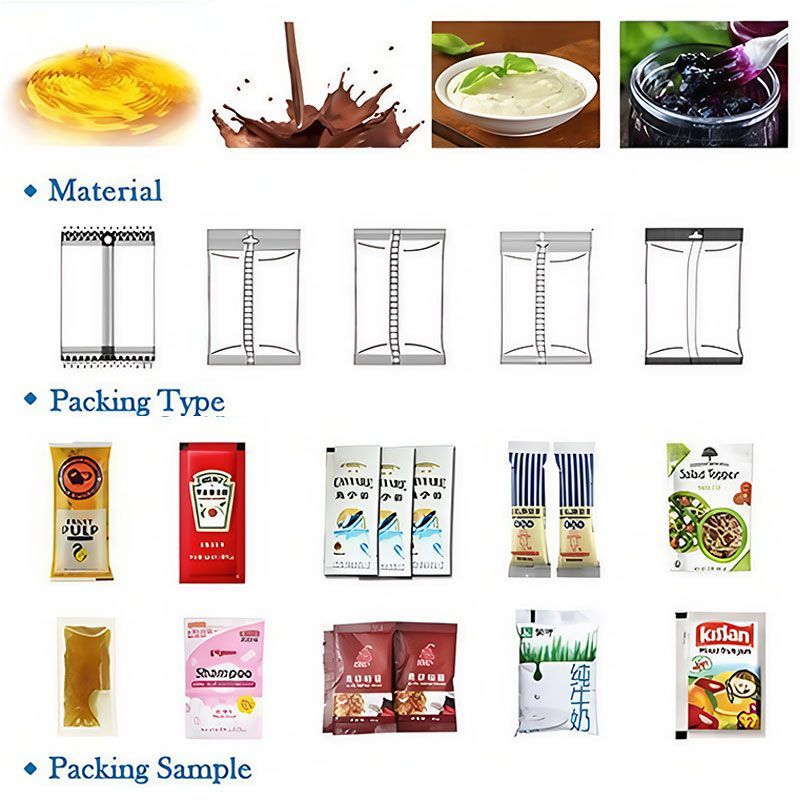

Bag Shape Options:

1. Stick bag

2. Three side sealing sachet

3. Four side sealing sachet

4. Small pillow bag

5. Linked bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. Compact and Portable Design: Small footprint and movable, ideal for spaces with limited room.

2. User-Friendly Operation: Equipped with an HMI and customized PLC system for easy and intuitive parameter adjustments.

3. Simplified Maintenance: The basic structure allows for hassle-free daily maintenance and quick troubleshooting.

4. Fully Automated Workflow: Seamlessly integrates filling, metering, bag making, and sealing into a single automated process.

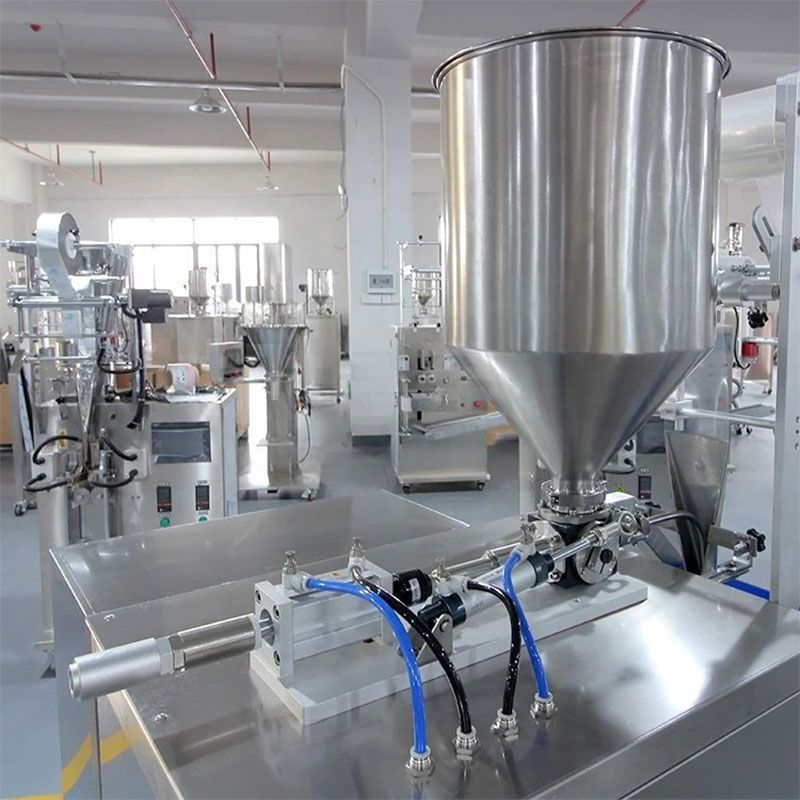

5. Efficient Liquid Filling: Utilizes a mechanical metering pump specifically designed for accurate filling of viscous liquids.

6. Instant Production Readiness: Operates immediately upon delivery without requiring installation.

Application:

Bag type	3-side seal, 4-side seal, Pillow bag
Packing film width	Max.200 mm
Bag width	20-100mm
Bag length	30-160mm
Measuring Range	1-50ml
Packing speed	20-50 bags/min
Diameter film	Max.300mm
Film thickness	0.04-0.12mm
Power	220V 50/60Hz 2.2KW
