Application:

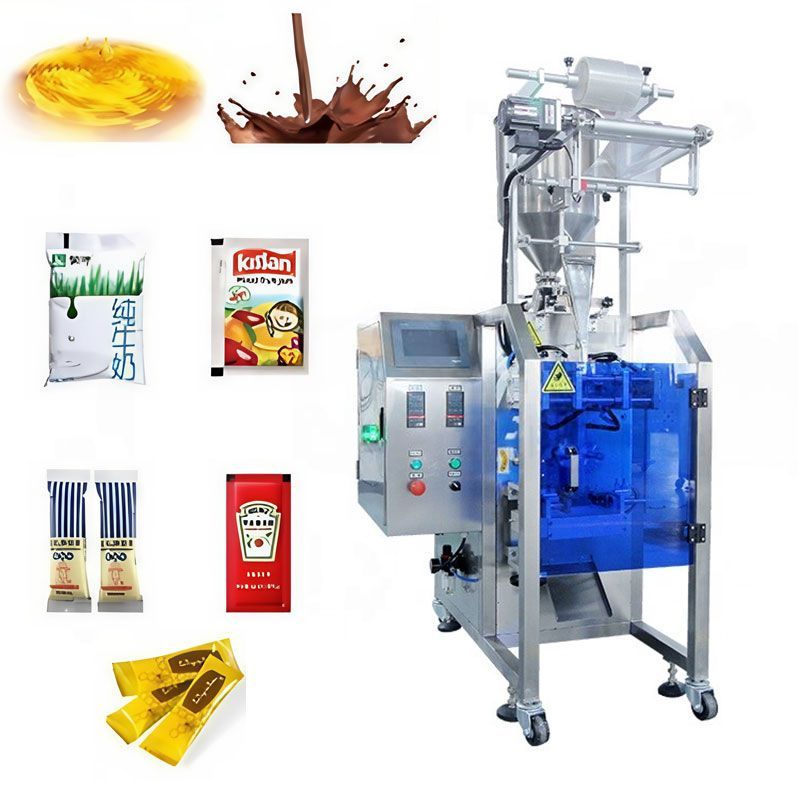

This liquid packing machine is suitable for all kinds of material packaging This machine is suitable for medicine, daily chemical, food and other health care products, pesticides and special industries disposable material packaging. Such as shampoo, body wash, fruit juice, fruit sauce, honey, liquid cat food, juice. The machine bag, filling, printing batch, number (need to be equipped with a coding machine), cutting, and so on all work.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

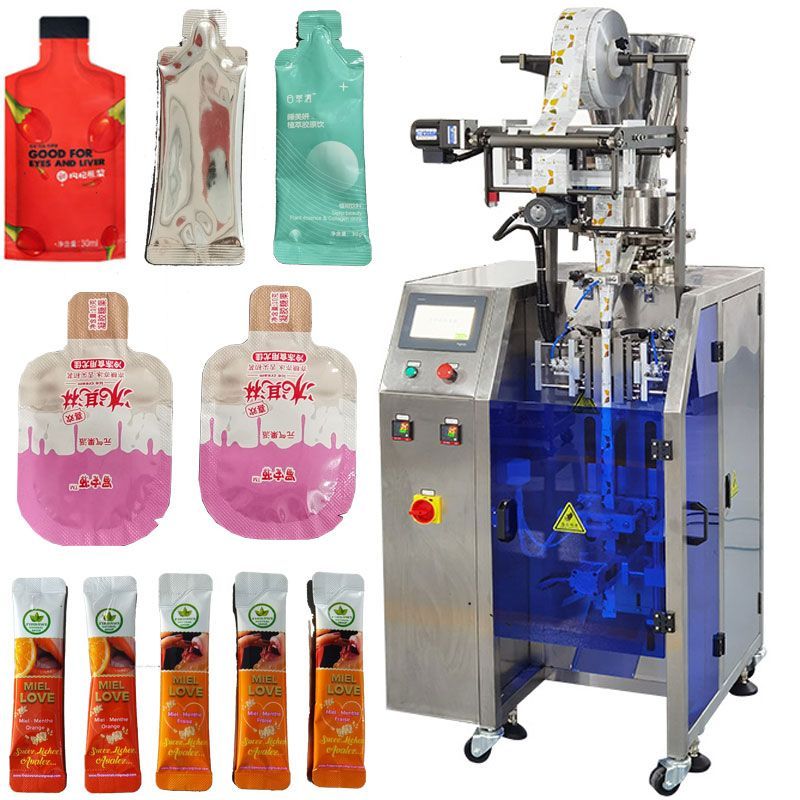

Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
PLC Control & Automatic Alarming: Equipped with PLC control system and automatic alarm functions for enhanced reliability.
Multilingual Display: The user-friendly multilingual interface ensures easy operation.
High-Precision Photoelectric Eye: Features a highly sensitive photoelectric eye for precise color tracing, ensuring greater accuracy.
Customizable Bag Types: Supports a variety of bag styles, including 3-side or 4-side sealing, pillow bags, long stick bags, link bags, and more.
Premium Components: Utilizes renowned brand components to guarantee machine quality and durability.
Fully Automated Process: Automatically performs weight measurement, bag making, filling, sealing, cutting, and bag counting.
Optional Features: Includes options for a ribbon code printer and link-bag device.
Versatile Packaging: Ideal for packaging a wide range of products, offering multi-functional packaging solutions.
Application:
| Model | BP-320L | BP-380L |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
