Application:

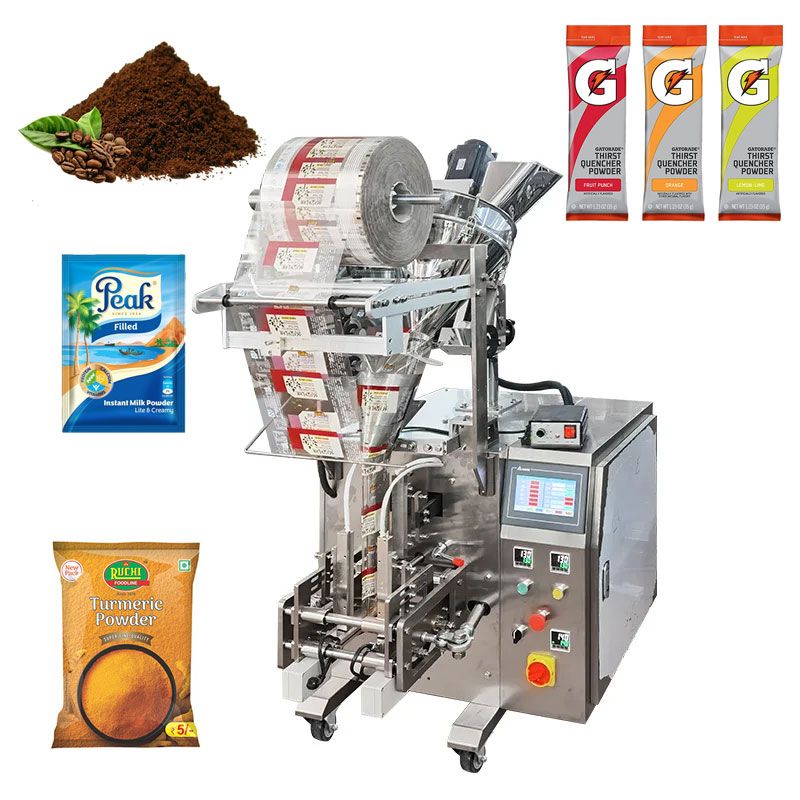

Suitable for coffee powder, tea powder, flour, milk powder, bean powder, and more. This machine is designed to pack products into personalized bags with precision and efficiency, meeting diverse packaging needs.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

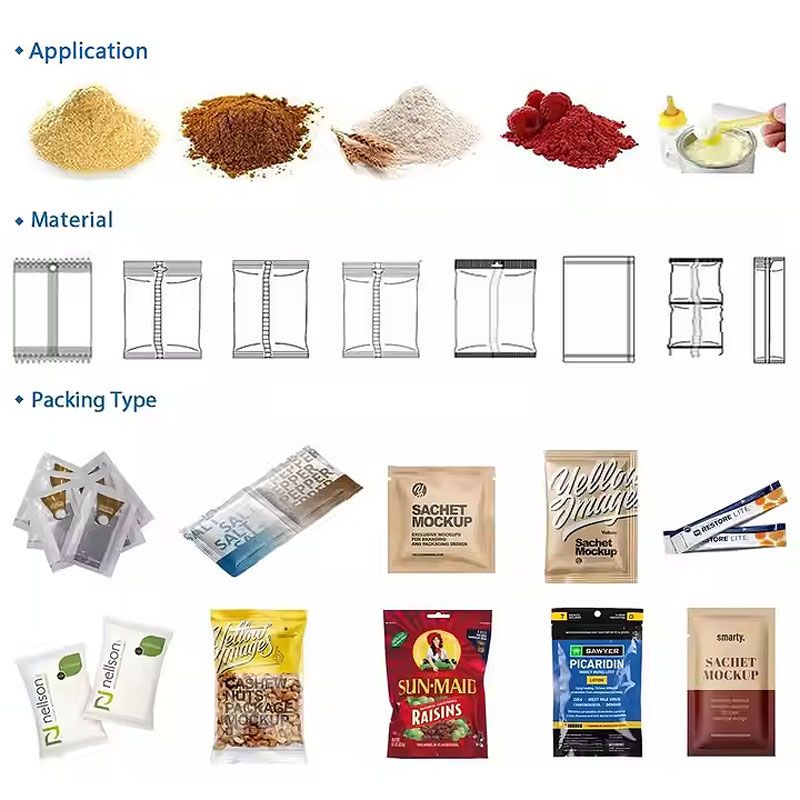

Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Flexible Screw Measuring System: Offers adaptability for various product weights with precise measurement and reliable performance.
2. Effortless Weight Adjustment: Easily modify product weight directly on the touch screen, streamlining the packaging of different weights.
3. Tool-Free Calibration: Adjust screw measurements without requiring tools, ensuring stable functionality and simple operation.
4. Easy Maintenance: Designed for quick cleaning and low-maintenance upkeep, saving time and effort.
5. Precision Bag Former: The articulated structure enables high-speed, accurate bag forming, clean cutting, and sealing, with a positioned stop function to prevent blade sticking and material waste for perfect bag shapes.

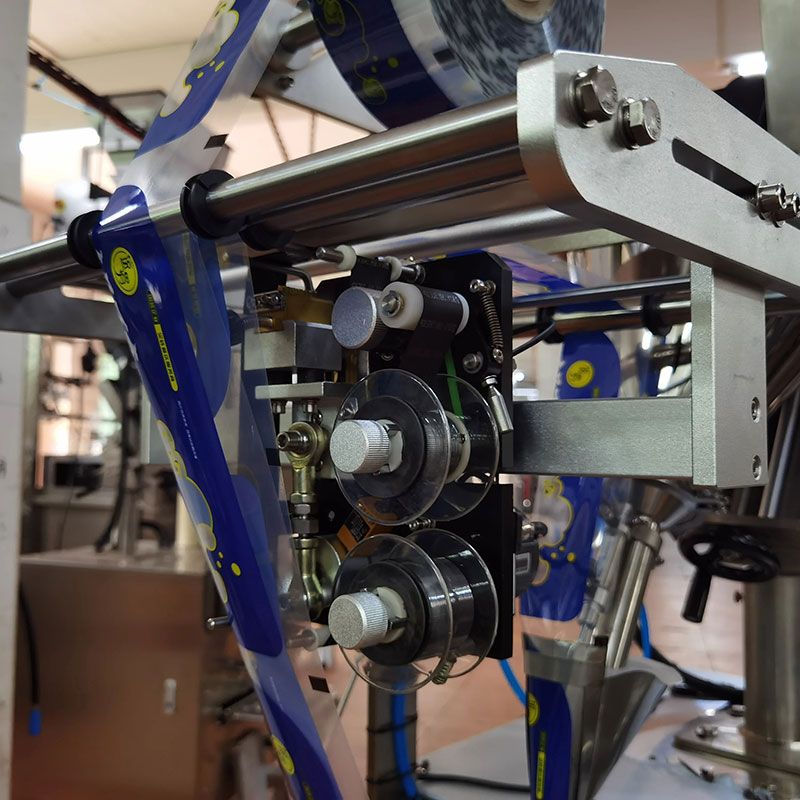

6. User-Friendly Date Printer: Externally mounted for convenient access, with adjustable temperature settings to suit different packing materials.
7. Secure Heated Metal Cutter: Delivers leak-proof sealing for durable and tightly sealed packaging.
Application:
| Model | BP-320 | BP-380 |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70 bags/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
