Application:

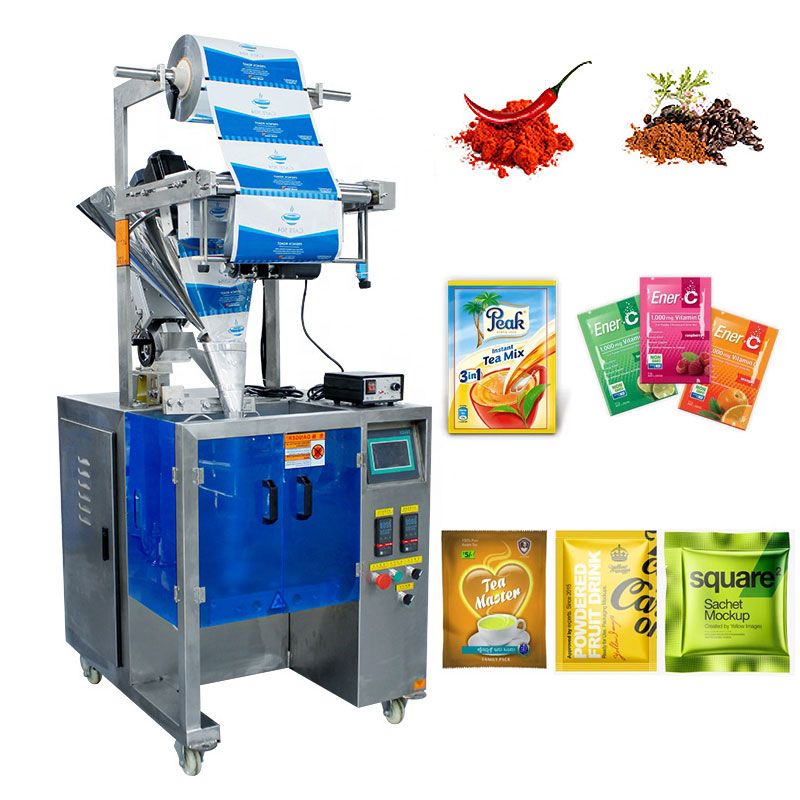

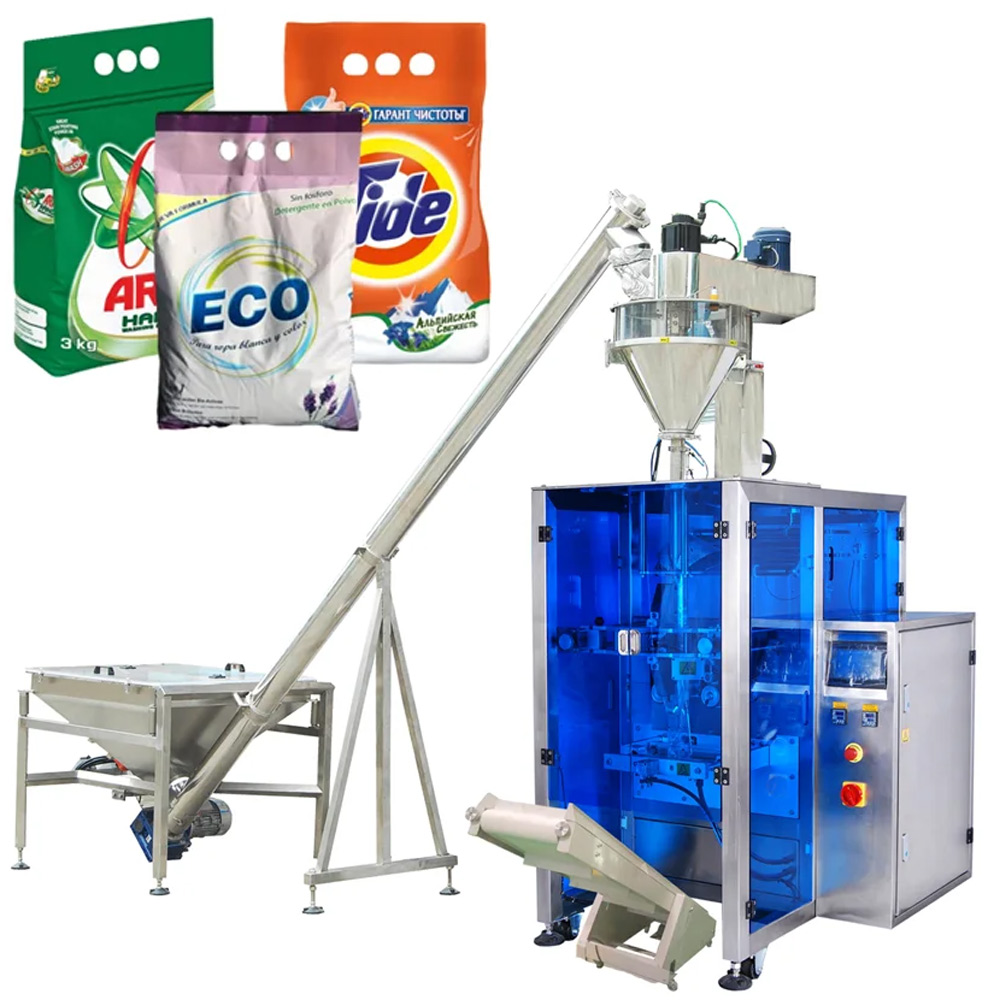

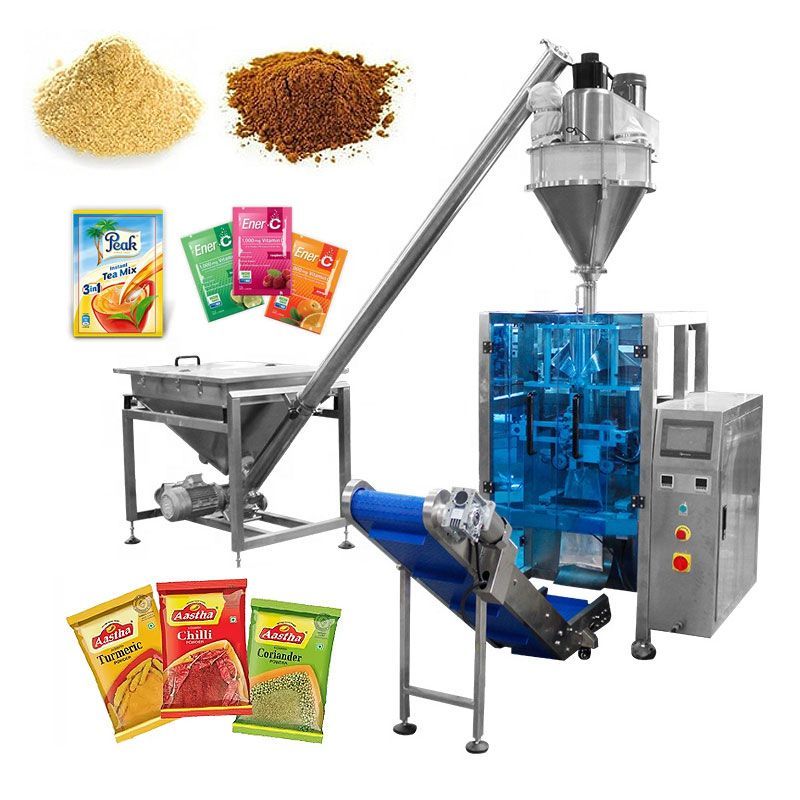

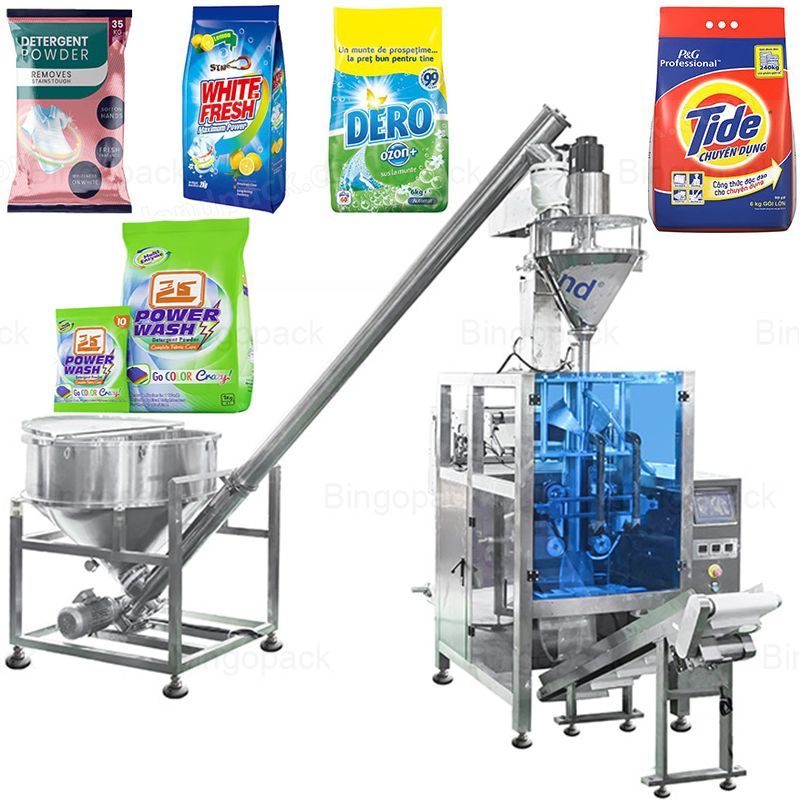

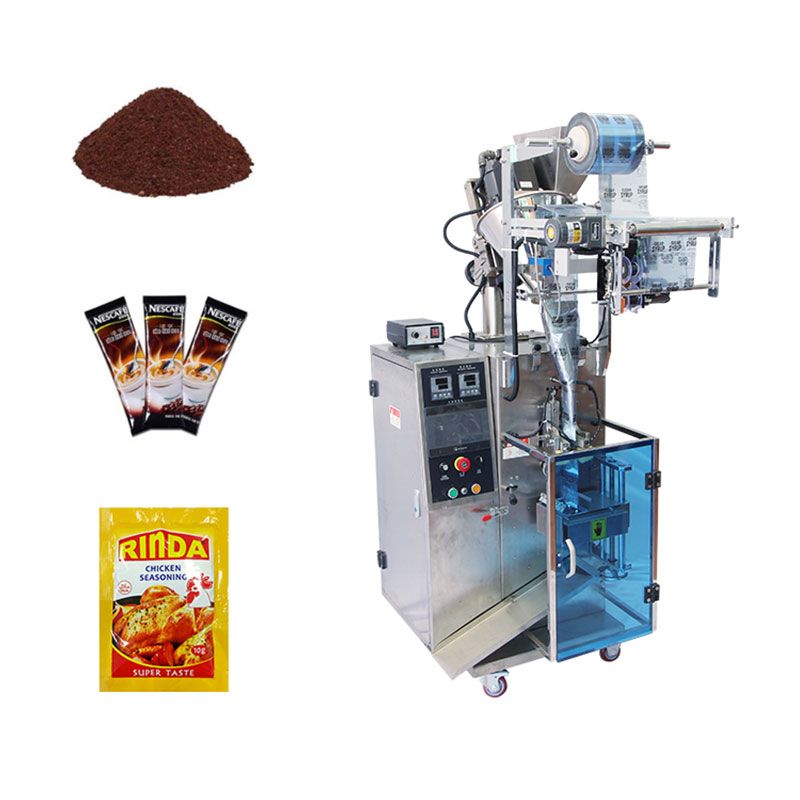

This powder packing machine is designed for a wide variety of powdered products, including curry powder, milk powder, flour, starch, washing powder, spices, instant coffee, tea, corn flour, beverage powder, bean powder, jelly powder, corn powder, cement, pepper powder, chili powder, fertilizer powder, Chinese herbal medicine powder, and various chemical powders. Its versatility makes it suitable for many applications in food production, agriculture, and pharmaceuticals.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch

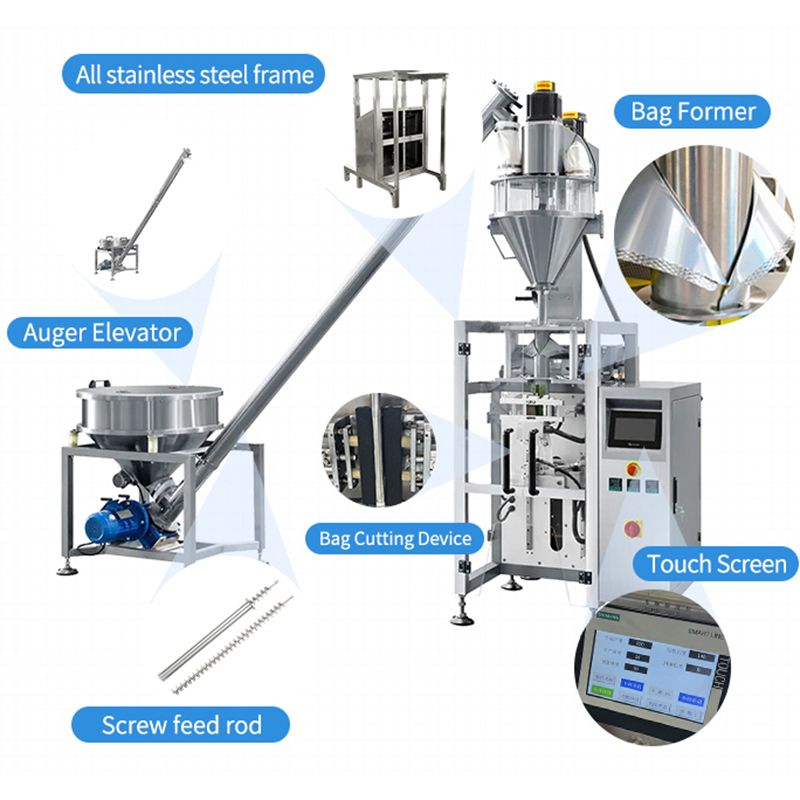

Advantages:
1. Equipped with an imported PLC full computer control system featuring a user-friendly interface and large touchscreen for easy and intuitive operation;
2. Utilizes a servo film transport system and pneumatic control for precise positioning and outstanding machine performance;
3. Features an intelligent temperature controller for accurate temperature management, ensuring smooth and attractive seals.
Features:
1. Includes a comprehensive automatic alarm protection system to minimize losses.
2. The machine automates the entire packaging process, including measurement, feeding, filling, bag-making, date printing, inflation (exhaust), output of finished products, and automatic counting.
3. Versatile bag-making options: capable of producing pillow-shaped bags, vertical folding bags, and hanging bags tailored to customer requirements.
Application:
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
