Application:

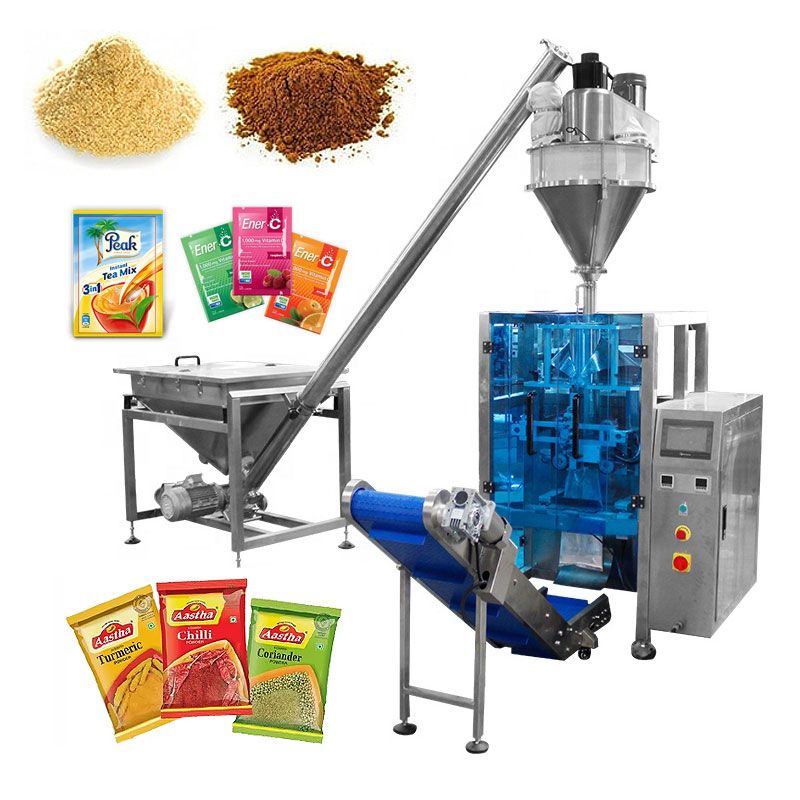

Suitable for various powder products, such as corn flour, wheat flour, coffee powder, spice powder, medical powder, and chemical powder. This machine integrates metering, filling, sealing, and packing into roll film bags efficiently and precisely.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Precision Powder Filling: Equipped with a servo auger filler metering system for accurate and consistent powder product measurement.
2. Leak-Proof Design: Features an additional leak-proof device to prevent dust and ensure a clean packaging environment.
3. Advanced Control System: Imported PLC with memory storage function for easy parameter adjustment and quick product switching.
4. Independent Temperature Control: Separate PID temperature controllers ensure compatibility with a wide range of packing materials.
5. Smooth Film Handling: Multi-union roll film pulling system guarantees smoother film operation for reliable performance.
6. Stable Bag Formation: Double servo film-dragging structure ensures stable bag forming, delivering perfect and consistent bag shapes.
7. Reliable Components: Incorporates branded electronic and component parts to enhance performance, durability, and reliability.
8. Fully Automated Operation: Achieves complete automation, including feeding, metering, filling, bag forming, sealing, and date printing for streamlined production.
Application:
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min | 5-20 bags/min | 5-20 bags/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
