Application:
Ideal for coffee powder, tea powder, flour, milk powder, bean powder, and more. This machine ensures precise and efficient packaging into customized bags, catering to diverse product requirements.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:

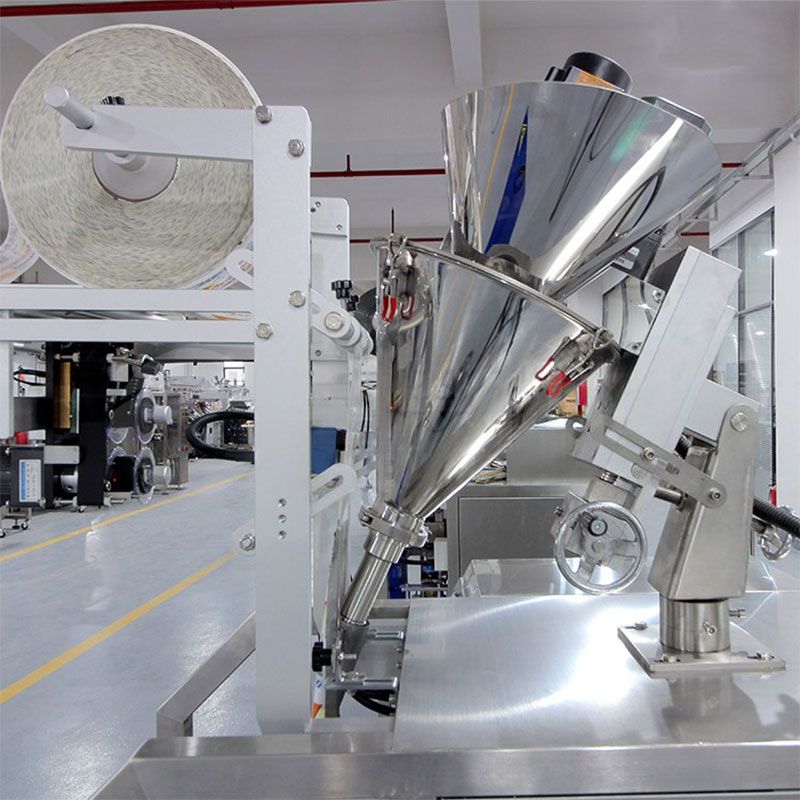

1. Versatile Screw Measuring System: Designed to accommodate various product weights with precise and consistent measurement, ensuring adaptability and efficiency.
2. Streamlined Weight Adjustment: Easily customize product weights via the touch screen, simplifying the process of packaging multiple weight variations.
3. Tool-Free Configuration: Enables quick and hassle-free screw measurement adjustments without tools, maintaining stable performance and user convenience.
4. Low-Maintenance Design: Engineered for easy cleaning and minimal maintenance, reducing downtime and operational effort.

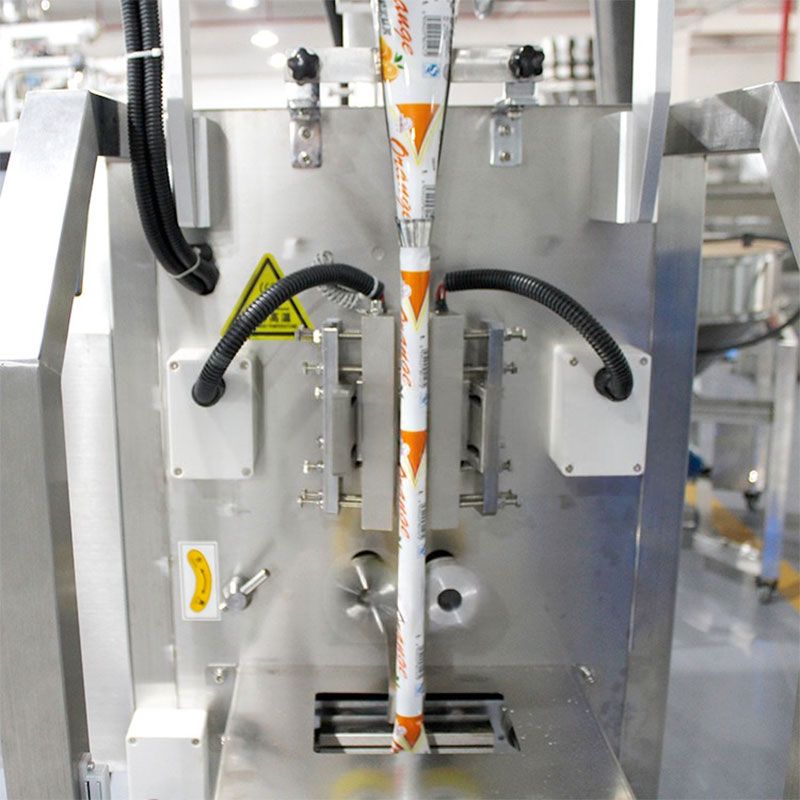

5. Advanced Bag Former: Features an articulated structure for precise and efficient bag forming, cutting, and sealing. Includes a positioned stop function to prevent blade sticking and material waste, guaranteeing consistently perfect bag shapes.
6. Accessible Date Printer: Externally mounted for easy operation, with adjustable temperature settings to accommodate various packing materials and enhance usability.
7. Leak-Proof Metal Cutter: Utilizes a heated metal cutter for secure, tight sealing, ensuring leak-proof and durable packaging every time.
Application:
Bag type | 3-side seal bag, 4-side seal bag, central back seal bag, pillow bag) |
packing film width | Max.200mm |
bag width | 20-100mm (Match different bag maker sizes) |
bag length | 30-160mm |
measuring range | 1-50ml |
packing speed | 20-50 bags/min |
roil film diameter | 300mm |
film thickness | 0.04-0.08mm |
packing film material | composite plastic film, such as opp/cpp.opp/pe, etc |
voltage | 220v 50/60hz 2.2kw |
weight | 300kg |
machine size | 750*900*1650mm |
