Application:

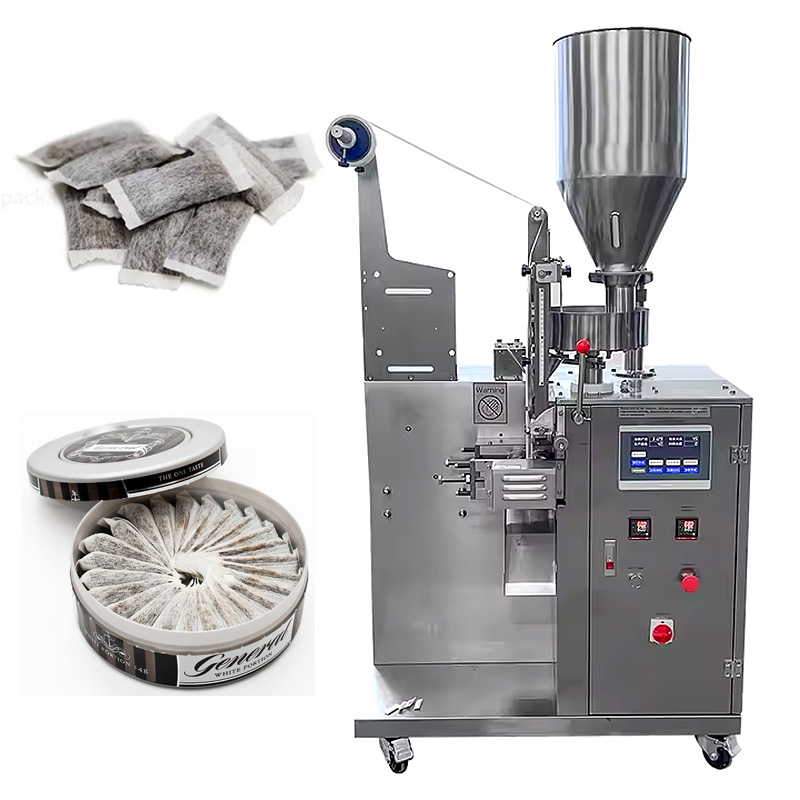

This machine is ideal for packing snus, tobacco, herbs, various teas, and granules. Designed for precision and efficiency, it handles a wide range of loose and granulated products, ensuring high-quality packaging results across industries.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bag weight
3. Bag dimension
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
Features:
1. With PID temperature control technology, the machine achieves precise temperature regulation for enhanced accuracy.
2. The entire system is controlled by a PLC, and operations are displayed on a user-friendly interface for easy management.
3. All contact surfaces are constructed from SUS304 stainless steel, ensuring hygienic and safe processing.
4. Selected cylinders are sourced from reputable international brands to provide consistent and reliable performance.
5. The machine is capable of multiple functions, including flat cutting, date stamping, and easy tear-off features.
Application:
| Model | BP-320T |
| Packaging speed | 20-230 bags/min |
| Height range | Max.40mm |
| Bag width | 30-110mm |
| Bag length | 65-280mm |
| Film width | Max.250mm |
| Roll diameter | Max.320 |
| Bag pulling type | Servo motor pulling |
| Power | 220V, 50/60HZ, 2.4KW |
| Machine size | (L)1100mm*(w)755mm*(H)1540mm |
| Machine weight | 350KG |
| Optional device | Date coder, Air-Filling device, Punching device |
