Application:

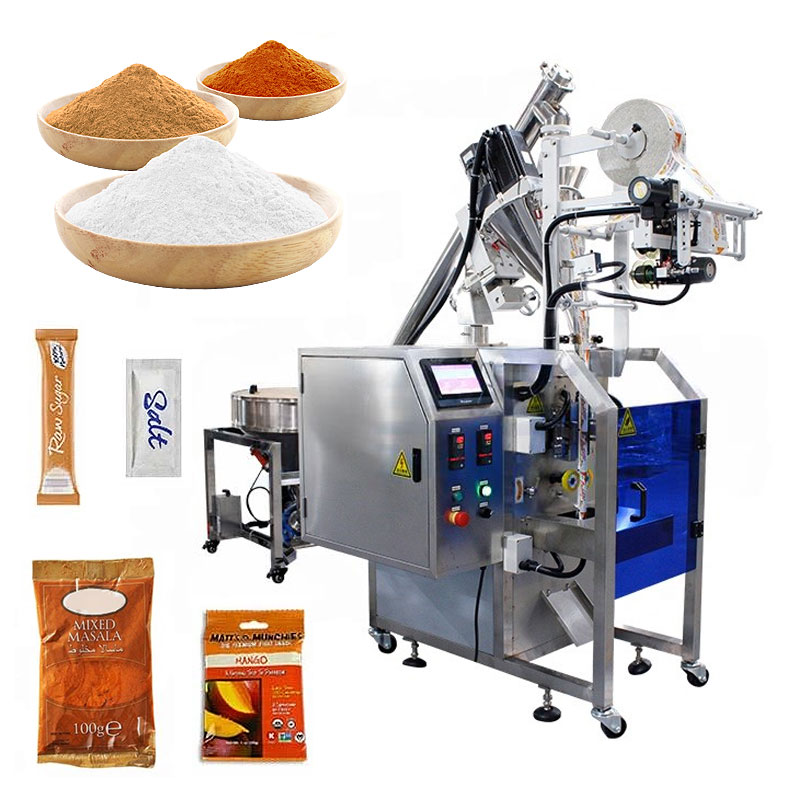

Perfect for coffee powder, tea powder, flour, milk powder, bean powder, and more. This machine offers precise, efficient packaging in customized bags to meet various needs.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

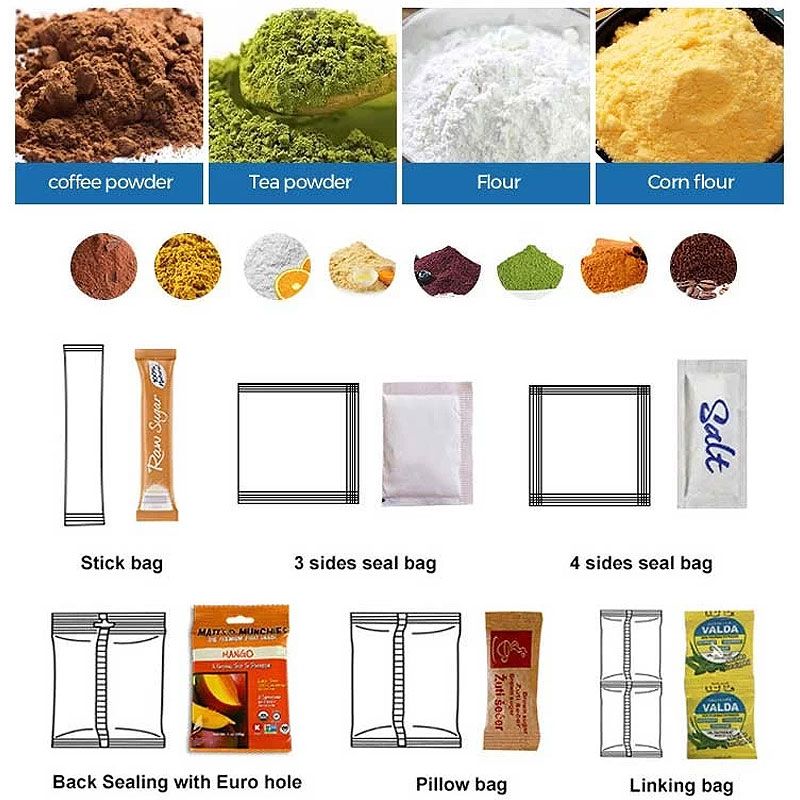

Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Compact and Portable**: Small and movable design, perfect for spaces with limited room.
2. Intelligent Control System**: Equipped with an HMI and customizable PLC system for straightforward parameter setting and user-friendly operation.
3. Simplified Structure**: Basic and efficient design allows for easy maintenance and reduced downtime.
4. Fully Automated Workflow**: Handles the entire packaging process, including filling, metering, bag making, and sealing, for maximum efficiency.
5. Precision Powder Measurement**: Utilizes an auger screw metering system for accurate and consistent measurement of powder products.
6. Ready-to-Use Design**: Operates immediately upon delivery, eliminating the need for installation and setup.
Application:
Bag type | 3-side seal bag, 4-side seal bag, central back seal bag, pillow bag |
packing film width | Max.200mm |
bag width | 20-100mm (Match different bag maker sizes) |
bag length | 30-160mm |
measuring range | 1-50ml |
packing speed | 20-50 bags/min |
roil film diameter | 300mm |
film thickness | 0.04-0.12mm |
packing film material | composite plastic film, such as opp/cpp.opp/pe, etc |
voltage | 220v 50/60hz 2.2kw |
weight | 300kg |
machine size | 750*900*1650mm |
