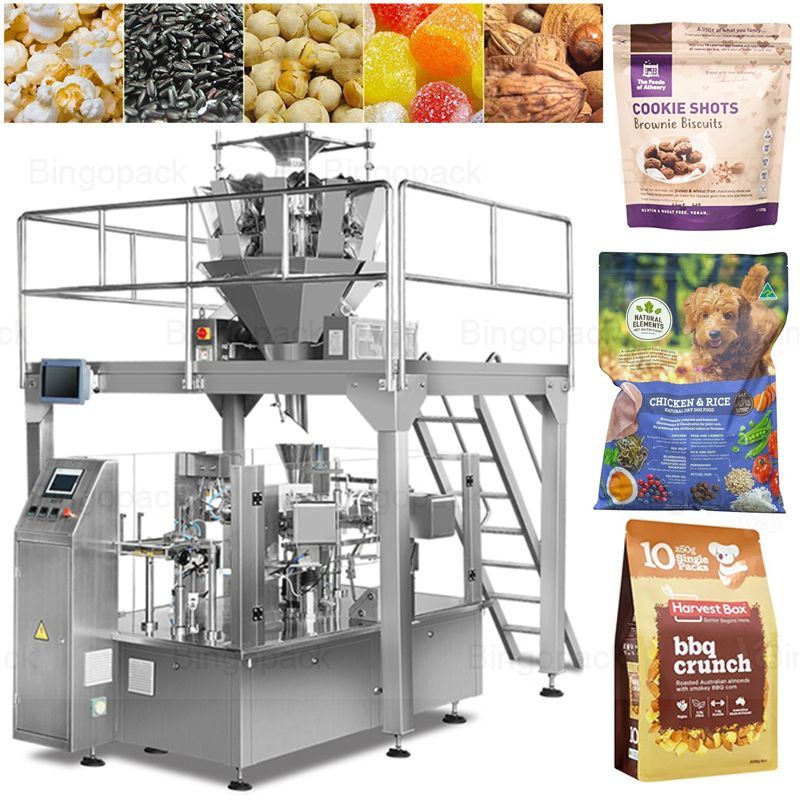

Automatic Rotary Premade Pouch Doypack Packing Machine

Automatic Rotary Premade Pouch Doypack Packing Machine

Application:

This Automatic Rotary Premade Pouch Doypack Packing Machine is suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Suitable Pouches: All type of premade pouch, such as 3/4 side seal bags, doypack, zipper pouch, spout pouch, stand up pouch, gusseted bags, block bottom bags ect.

Kindly Reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

3/ 4 Side Seal Bag

Doypack Zipper Bag

Stand Up Bag

Zipper Bag

Gusseted Bag

M Shape Gusset Bag

Features:

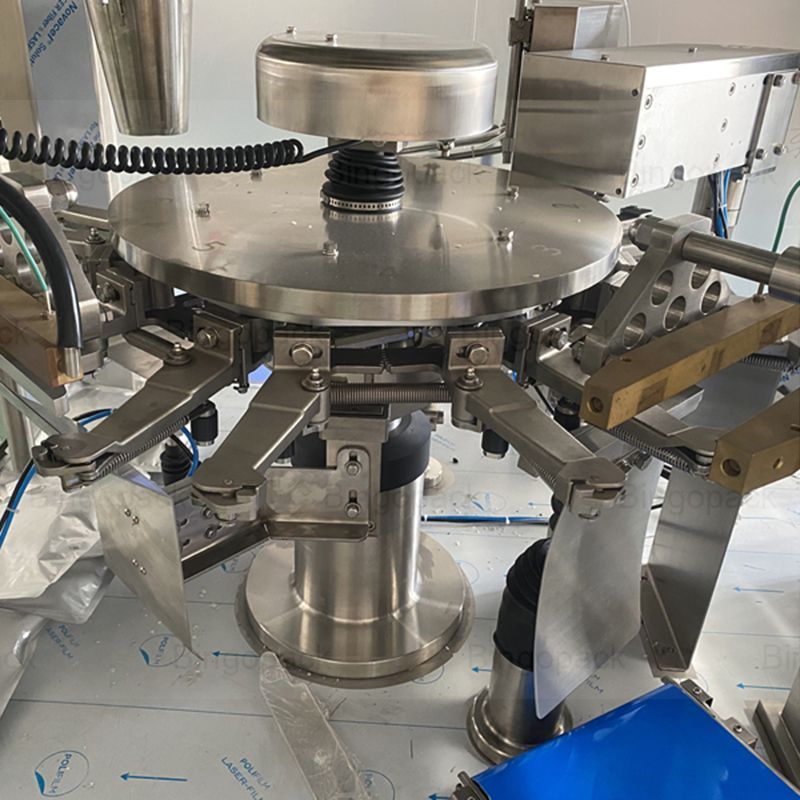

Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
Automatic checking system can check bag situation, filling and sealing situation.
The system shows
1.no bag feeding, no filling and no sealing.
2.no bag opening/opening error, no filling and no sealing
3.no filling, no sealing.
The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

Application:

Model	BP-8200/BP-8250
Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
size	W：70-200/100-250
Filling range	10-1000g/20-2500g
Packing speed	40-60bag/min（speed is determined by the product filling quantity）
Average precision	≤ ±1%
Total power	2.5KW
Dimensions	1900mm X 1570mm X 1700mm（LWH）
Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
