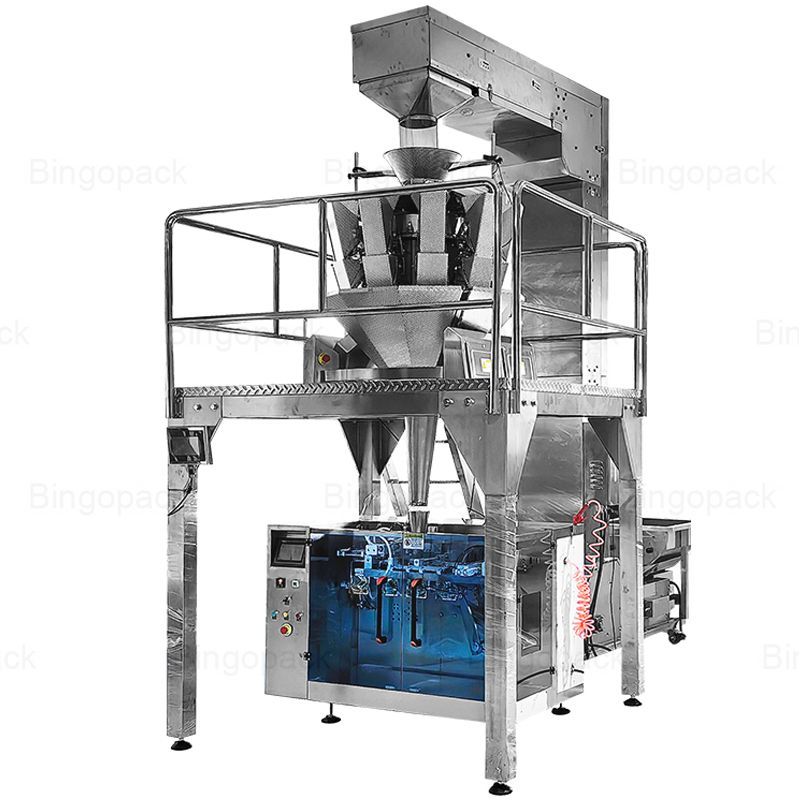

Full Automatic Stand Pouch Packing Machine Doypack Machine

Full Automatic Stand Pouch Packing Machine Doypack Machine

Application:

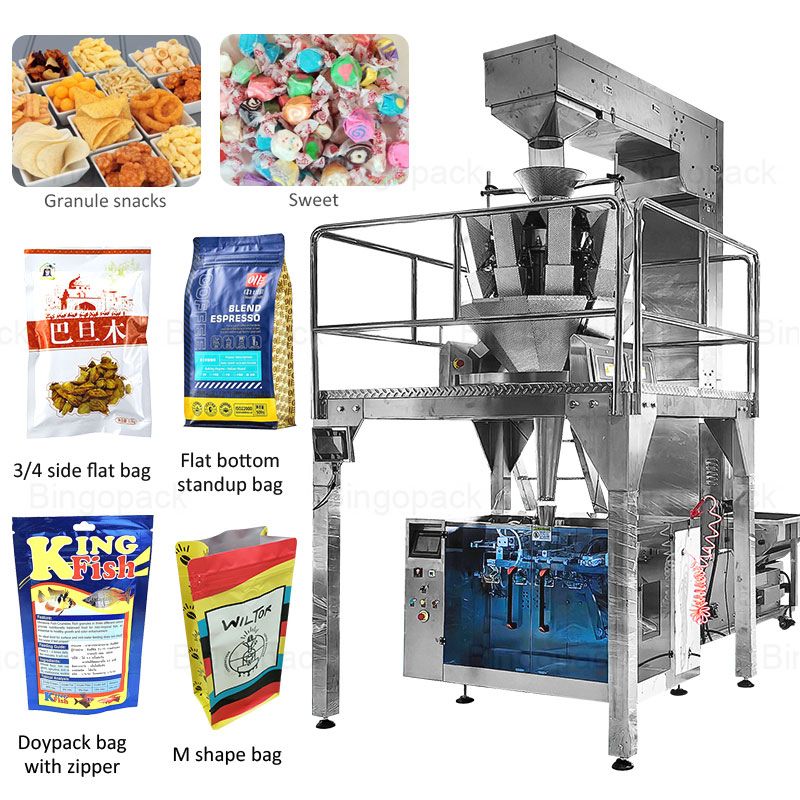

This Full Automatic Stand Pouch Packing Machine Doypack Machine customized for differernt kinds of solid products like snack food, chips, driy fruit, nuts, beans, grains, sugar, salt, seeds, particles, ect.weighing, filling, sealing and packing into premade bags. (4 side seal bag, doypack zipper bag, stand up bag, M shape gusset bag, ect.)

Kindly Reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

3/ 4 Side Seal Bag

Doypack Zipper Bag

Stand Up Bag

Zipper Bag

Gusseted Bag

M Shape Gusset Bag

Features:

Different machine models available to meet a wide range premade bag size.
Customized main machine structure for various kinds of bag shapes.like doypack zipper bag ,4 side seal bag,strand up bag and irregular bag,ect.
Multiple working station to meet fullautomatic process of bag pickup,date printing,bag opening, filling, bag arranging ,sealing and output.
With upgrade PLC control system，machine is easy for operation on touch screen of parameter setting.

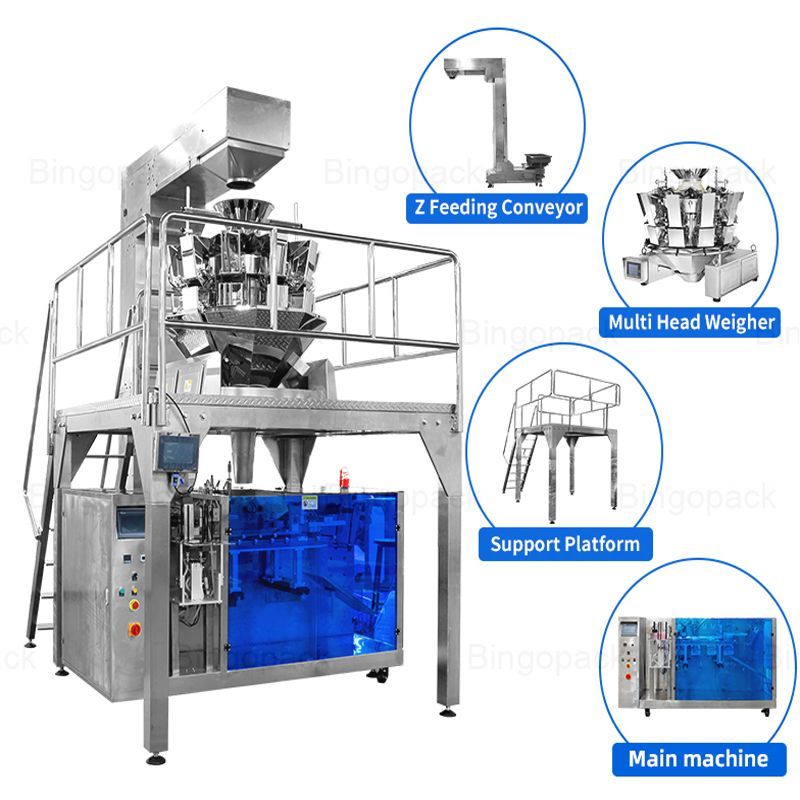

Machine can equipment with different metering system like weigher,liquid pump,auger filler,bucket chain for different kinds of product filling and packing in premade bag.

Application:

Model	BP-160HPW10	BP-210HPW10	BP-260HPW10	BP-320HPW10
Bag width	80*160mm	90*210mm	150*260mm	200*320mm
Bag length	100*190mm	110*330mm	150*400mm	150*500mm
Packing speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-30 bags/min
Power	3kw 50/60hz	3.5kw 50/60hz	4kw 50/60hz	4kw 50/60hz
Voltage	220V	380V	380V	380V
Air consumption	0.5m³	0.5m³	0.5m³	0.5m³
