Application:

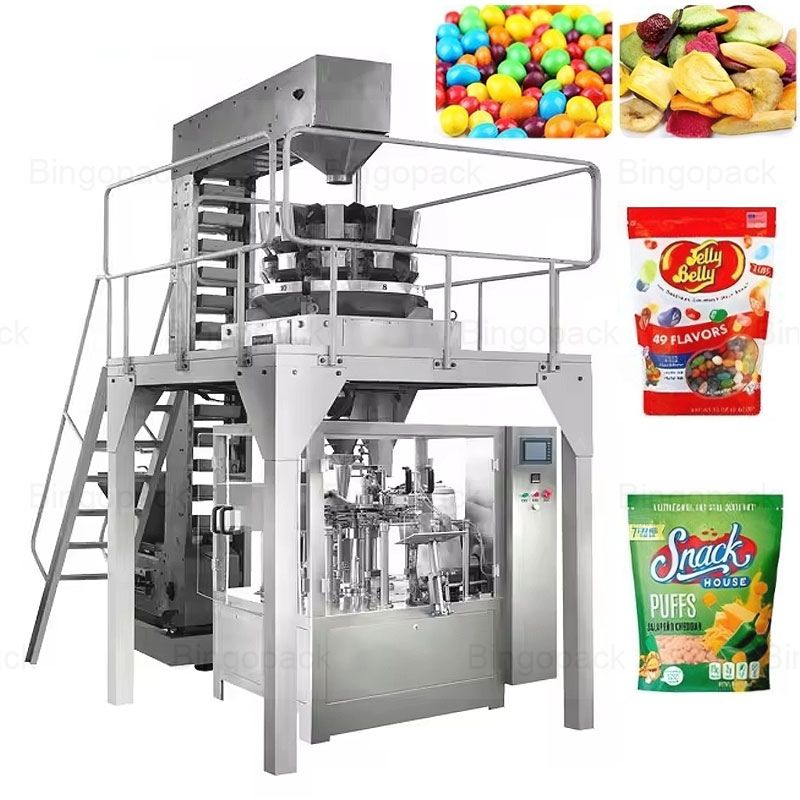

This Automatic Rotary Premade Pouch Packing Machine is suitable for automatically packing granule material, such as beans, nuts, dry fruits, candy, cereal, chocolate, frozen food, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
Suitable Pouches: All types of premade pouches, such as 3/4 side seal bags, doypack, zipper pouch, spout pouch, stand up pouch, gusseted bags, block bottom bags, etc.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Pouch dimension
2. Pouch weight
3. Your product
4. Pouch style
5. Pouch material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
3/ 4 Side Seal Bag
Doypack Zipper Bag
Stand Up Bag
Zipper Bag
Gusseted Bag
M Shape Gusset Bag
Features:
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
4. It includes ribbon type date code: 3 lines * 17 characters.
5. Guarding: Glass Door Alarm / Air Pressure Abnormal.
6. Internal grooved cam design: The technology with high precision, suits for max. packing speed up to 60 bags/min.
Application:
| Model | BP-8200/BP-8250 |
| Packing material | all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc. |
| size | W: 70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60 bags/min (speed is determined by the product filling quantity) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900*1570*1700mm (L*W*H) |
| Work flow | giving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer, 2. PLC control system, 3. Bag opening device, 4. Vibration device, 5. Cylinder, 6. Electromagnetic valve, 7. Temperature controller, 8.Vacuum pump, 9. Inverter, 10. Output system |
