Application:

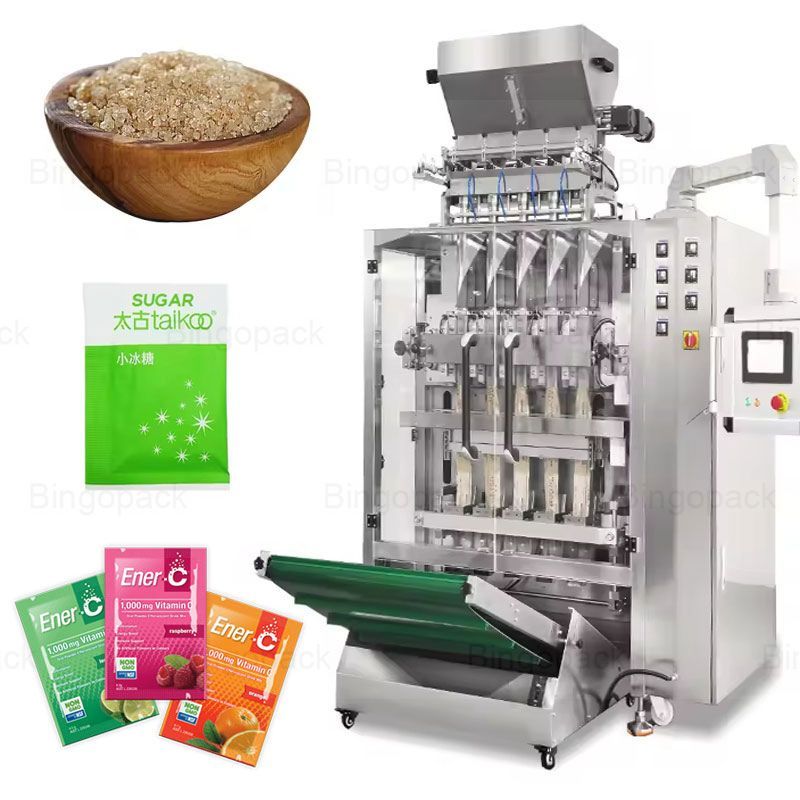

The fine granule sachet packing machine is suitable for packaging a variety of fine granule products, such as sugar, salt, small grains, coffee, seeds, spices, seasonings, and more. It offers precise filling, efficient sealing, and stable performance, making it ideal for the food and seasoning industries.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Sachet
2. Link bag
3. Stick bag
4. Sachet/stick bag with hanging hole
5. Sachet/stick bag with easy tear notch
Features:
1. Multi-lane packaging design — available from 2 to 18 lanes for flexible production requirements.
2. Packaging speed: 30-50 cycles per minute per lane, greatly improving production efficiency.
3. User-friendly PLC control system with a touch screen interface, easy to operate and adjust parameters.
4. Modular structure design for easy cleaning, maintenance, and quick changeover of different packaging sizes.
5. Widely applied for packing powder, granules, liquid, sauce, tablets, and other products in pharmaceutical, food, cosmetic, and chemical industries.
6. Advanced design with high-power motor, stable performance, low noise, compact structure, easy maintenance, and long service life.
7. Fully automatic packaging process — completes longitudinal sealing, vertical cutting, transverse sealing, filling, coding, notch cutting, dotted line cutting, transverse cutting, and finished sachet output in one operation.
8. Equipped with high-precision rolling-type heat sealing rollers for four-side sealing and multi-lane sachet forming, ensuring fast packaging speed and smooth, beautiful bag appearance.
9. Photoelectric eye tracking system ensures accurate film positioning and printing alignment, with an automatic counting function for easy production management
10. Compatible with a wide range of composite packaging films: PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, and other laminated materials.
Application:
Model | BP-300BK | BP-600BF | BP-900BF |
Lanes number | 2-6 lanes | 3-12 lanes | 4-18lane |
Capacity | Max.30-50 cycles/min/lane | ||
Bag size | L: 50-180mm W: 17-70mm | L: 50-180mm W: 17-95mm | L: 50-180mm W: 17-105mm |
Film width&thickness | Max.300mm. 0.07-0.1mm | Max.600mm.0.07-0.1mm | Max.900mm.0.07-0.1mm |
Measuring Method | 1. measure cup;2. weigher | ||
Sealing type | 3/4 sealing bag | ||
Cutting type | 1. Straight cutting, 2. Serrated cutting, 3. Round cutting, 4. Abnormal cutting | ||
Powersupply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw |
Air consumption | 0.8 MPA 0.8 m³/min | 0.8 MPA 0.8m³/min | 0.8 MPA 0.8m³/min |
Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm |
Weight | 400kg | 600kg | 950kg |
