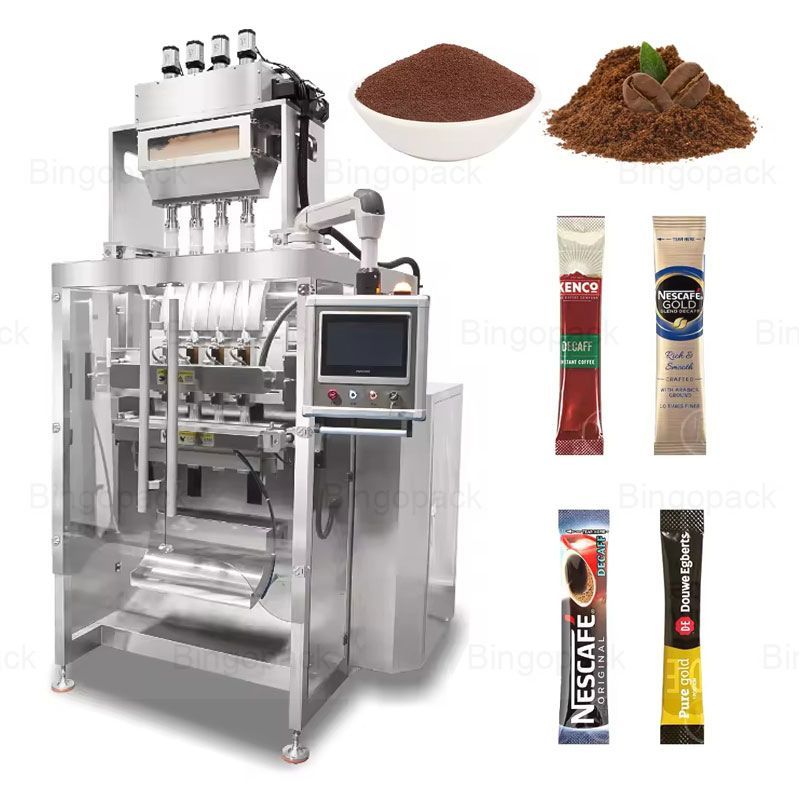

Automatic High Speed Multi lane Stick Powder Packing Packaging Machine

Automatic High Speed Multi lane Stick Powder Packing Packaging Machine

Application:

The automatic high speed multi lane stick powder packing packaging machine is ideal for medicinal powder, tea powder, milk powder, protein powder, coffee powder, seasoning powder, cocoa powder, flour, spices, and more.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Stick/sachet dimension

2. Product weight

3. Your product

4. Stick/sachet shape

5. Stick/sachet material

Chat Now Send Email

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Sachet

2. Link bag

3. Stick bag

4. Sachet/stick bag with hanging hole

5. Sachet/stick bag with easy tear notch

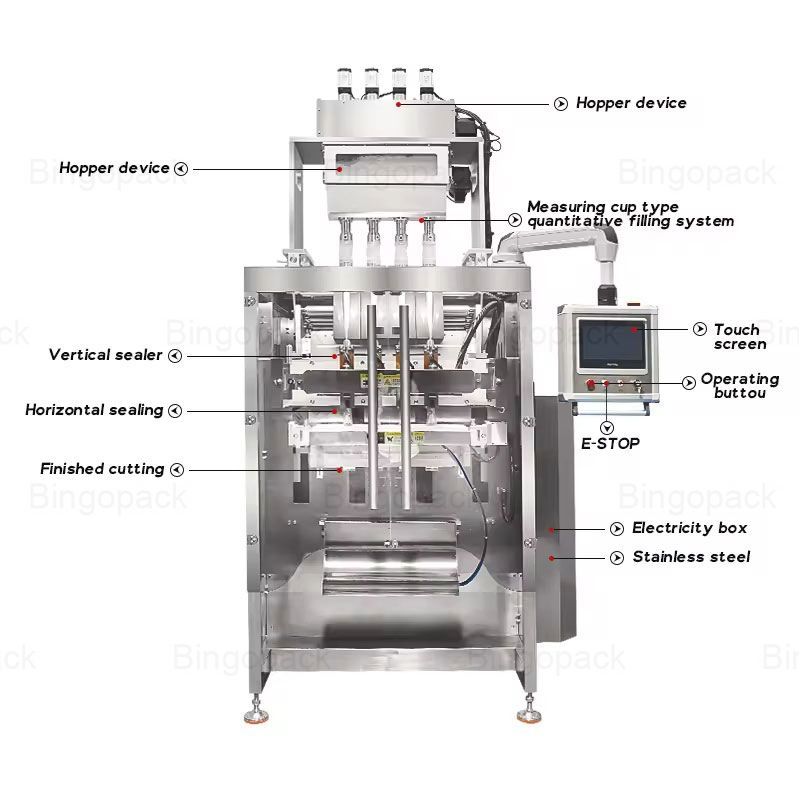

Features:

1. High-precision servo-controlled screwquantitative filling device enables high packaging accuracy and easy cleaning quantitative filling by long screw, high precision and low dust emission.

2. Made of CNC special aluminum parts, it has the highest forming stability and is also the first choice for high-end equipment that can meet three-side sealing packaging and back-sealing packaging.

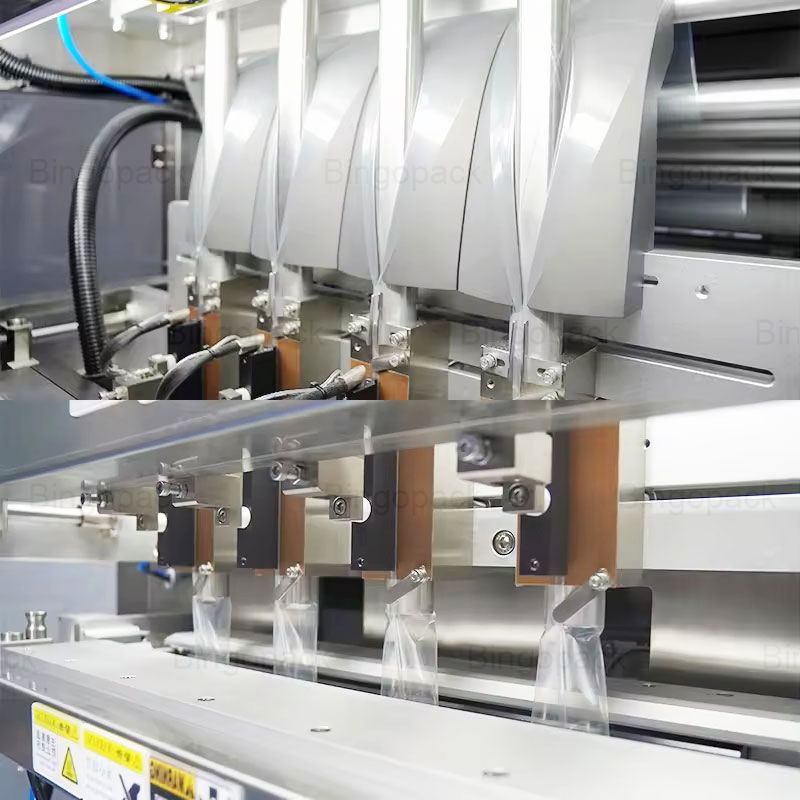

3. The longitudinal sealing device adopts bus type temperature module control with precise temperature control to seal the back of the packaged product to ensure sealing.

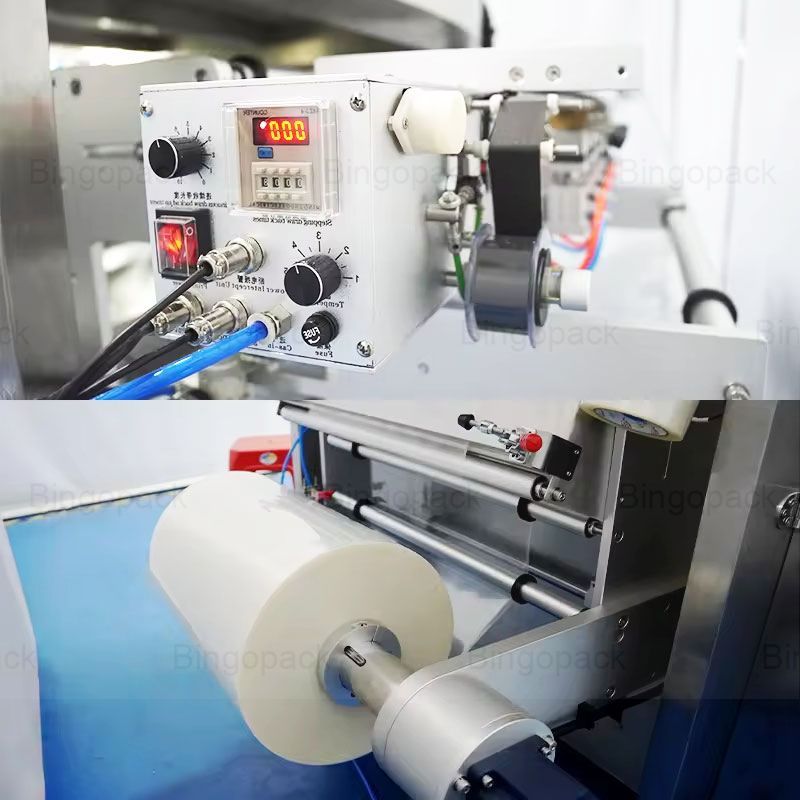

4. The film frame can be corrected automatically or manually to make the packaging film stable during the bag making process.

5. Clear printing -using thermal printing ribbon, the printing will not dry out and has strong adhesion.

6. The entire machine parameter adjustment and machine operation are controlled through the intelligent system, making parameter adjustment more convenient.

Application:

Model	BP-300BF	BP-600BF	BP-900BF
Lanes number	2-6 lanes	3-12 lanes	4-18lane
Capacity	Max.30-50 cycles/min/lane
Bag size	L: 50-180mm W: 17-70mm	L: 50-180mm W: 17-95mm	L: 50-180mm W: 17-105mm
Film width&thickness	Max.300mm, 0.07-0.1mm	Max.600mm, 0.07-0.1mm	Max.900mm, 0.07-0.1mm
Measuring Method	1. volumetric cup; 2. weigher
Sealing type	Back sealing/stick bag/sachet
Cutting type	1 Straight cutting；2 Serrated cutting；3 Round cutting ；4 Abnormal cutting
Power supply	1N+PE/50HZ/AC220V/380V/3.5kw	1N+PE/50HZ/AC220V/380V/5.5kw	1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption	0.8 MPA, 0.8m³/min	0.8 MPA, 0.8m³min	0.8 MPA, 0.8m³/min
Dimension	13859182005mm	168513002005mm	170016002500mm
Weight	400kg	600kg	950kg
