Application:

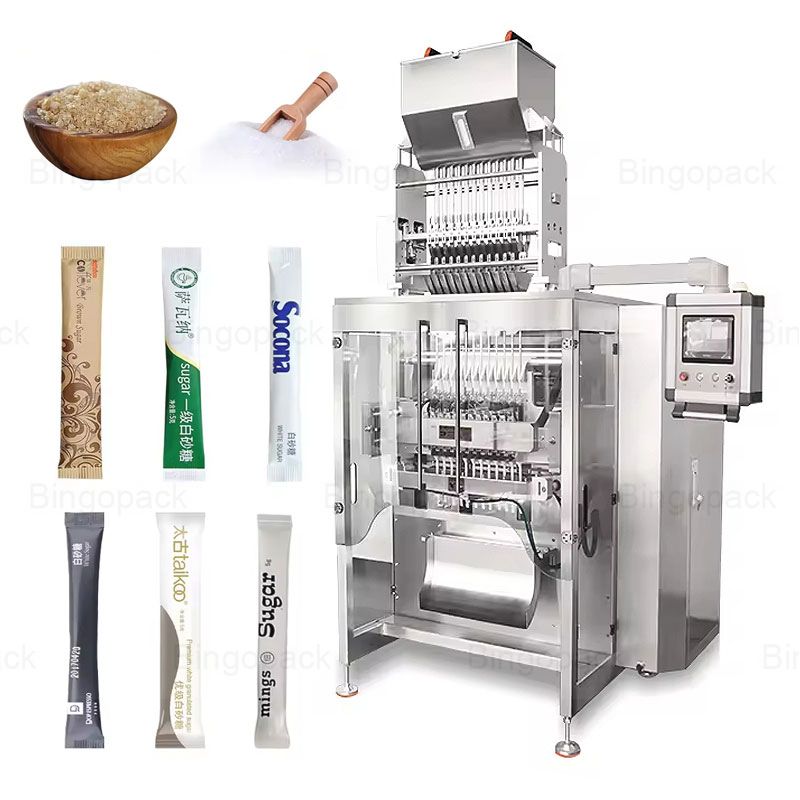

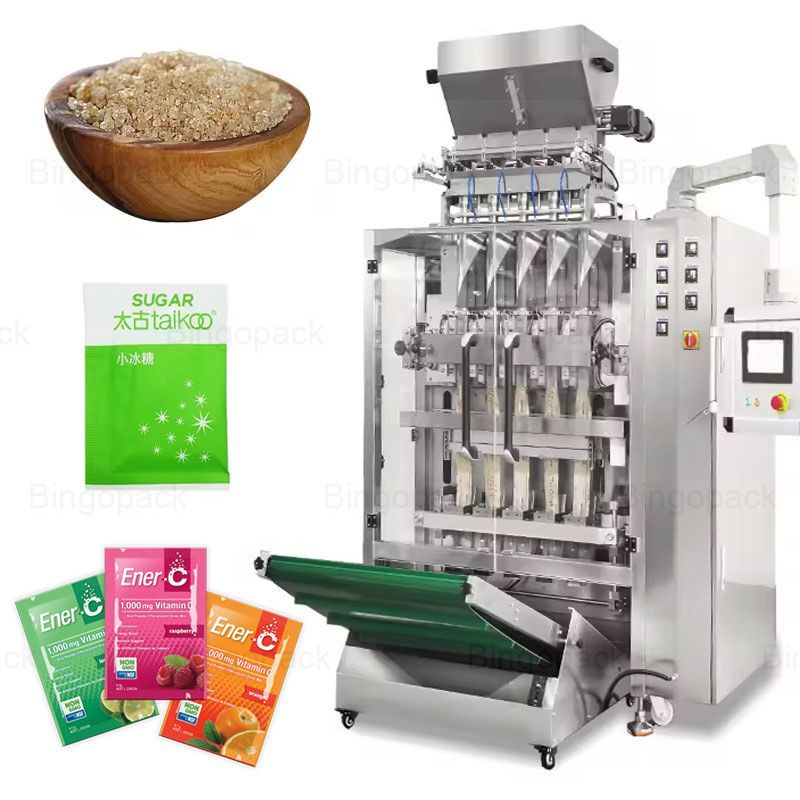

Automatic multi-lane sugar salt fine particle stick packing machine is suitable for packing various loose granule products, such as sugar, salt, small grains, seeds, spice, sesame, seasoning, and coffee.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Sachet
2. Link bag
3. Stick bag
4. Sachet/stick bag with hanging hole
5. Sachet/stick bag with easy tear notch
Features:
1. Multi lanes machines can produce multi-lane bags at the same time.
2. Automatic split film at the right position, particle measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Emergency stop, set capacity to auto stop machine, count capacity and zero the count, ready bag output, manual test machine each step, etc.
4. The stainless steel contact part and the machine's outer shell, have high features for a particle running environment.
5. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.
6. PLC controller, high function and control the whole machine's work steps.
Application:
Model | BP-300BF | BP-600BF | BP-900BF |
Lanes number | 2-6 lanes | 3-12 lanes | 4-18lane |
Capacity | Max.30-50 cycles/min/lane | ||
Bag size | L: 50-180mm W: 17-70mm | L: 50-180mm W: 17-95mm | L: 50-180mm W: 17-105mm |
| Film width&thickness | Max.300mm, 0.07-0.1mm | Max.600mm, 0.07-0.1mm | Max.900mm, 0.07-0.1mm |
Measuring Method | 1. volumetric cup; 2. weigher | ||
Sealing type | Back sealing/stick bag/sachet | ||
Cutting type | 1 Straight cutting；2 Serrated cutting；3 Round cutting ；4 Abnormal cutting | ||
Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw |
Air consumption | 0.8 MPA, 0.8m³/min | 0.8 MPA, 0.8m³min | 0.8 MPA, 0.8m³/min |
Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm |
Weight | 400kg | 600kg | 950kg |
