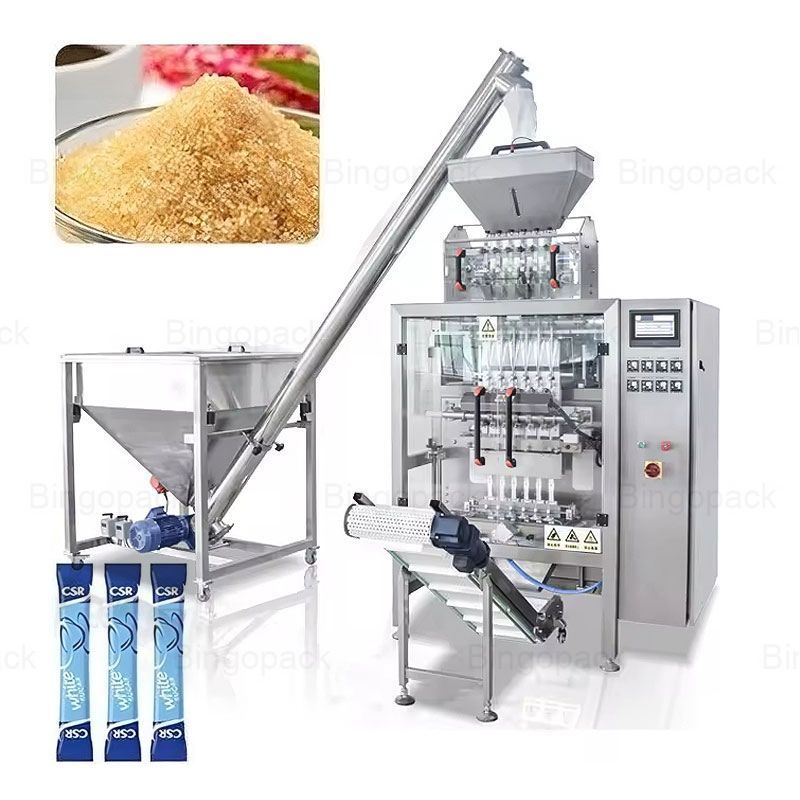

High Speed Multi Lane 3g 5g 7g 10g Sugar Stick Packing Machine

High Speed Multi Lane 3g 5g 7g 10g Sugar Stick Packing Machine

Application:

High speed multi lane stick packing machine is suitable for packing various fine granule products, including sugar, salt, small grains, seeds, spices, sesame, seasoning, and coffee with precision and efficiency.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Sachet

2. Link bag

3. Stick bag

4. Sachet/stick bag with hanging hole

5. Sachet/stick bag with easy tear notch

Features:

1. Touch Screen Interface: User-friendly operation with easy parameter adjustments and real-time monitoring.

2. Servo Motor Control: Ensures accurate film pulling and precise sealing for consistent packaging quality.

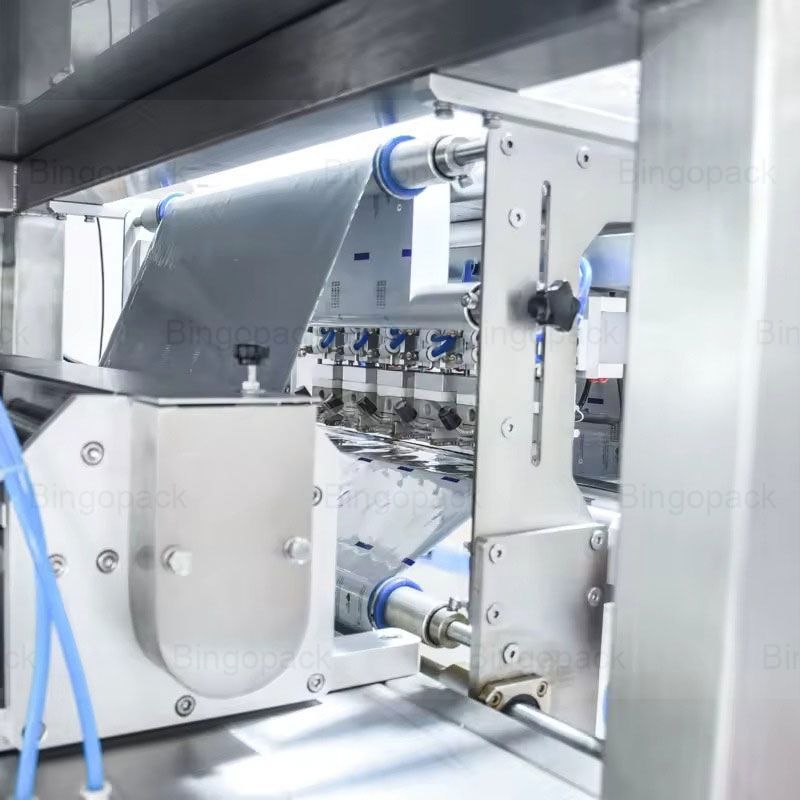

3. Automatic Film Correction System: Keeps the film properly aligned, reducing errors and material waste.

4. High-Speed Performance: Capable of producing multiple bags simultaneously, maximizing production efficiency.

5. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.

6. The stainless steel contact part and the machine's outer shell, have high features for a liquid running environment.

7. Machine main function: automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

8. Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.

Application:

Type	BP-4L	BP-6L	BP-8L	BP-10L	BP-12L
Film width	4 lanes	6 lanes	8 lanes	10 lanes	12 lanes
Bag width	12-90mm	12-60mm	12-45mm	12-35mm	13-35mm
Bag length	40-165 mm
Packaging speed	30-50 bags/min/lane
