Application:

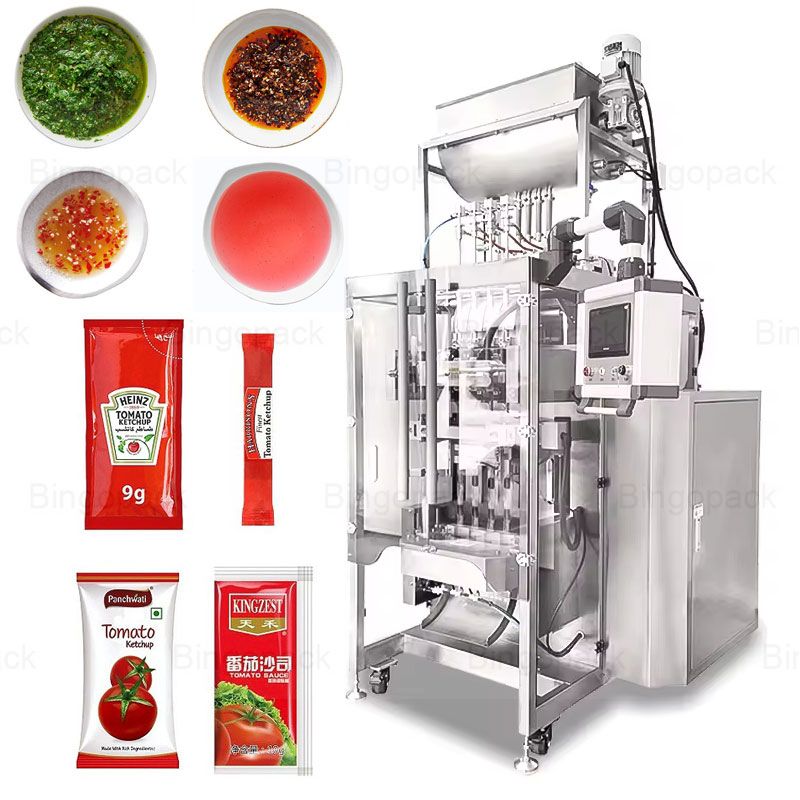

The multi-lane liquid stick packing machine is suitable for a variety of liquid products, including popsicles, ice pops, jelly, mouthwash, ketchup, flavoring, sauce, pastes, shampoo, salad dressing, cream, and body wash liquid.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Sachet
2. Link bag
3. Stick bag
4. Sachet/stick bag with hanging hole
5. Sachet/stick bag with easy tear notch
Features:
1. Multi-Product Capability: Multiple products can be produced in one machine at the same time, thus lowering production costs.

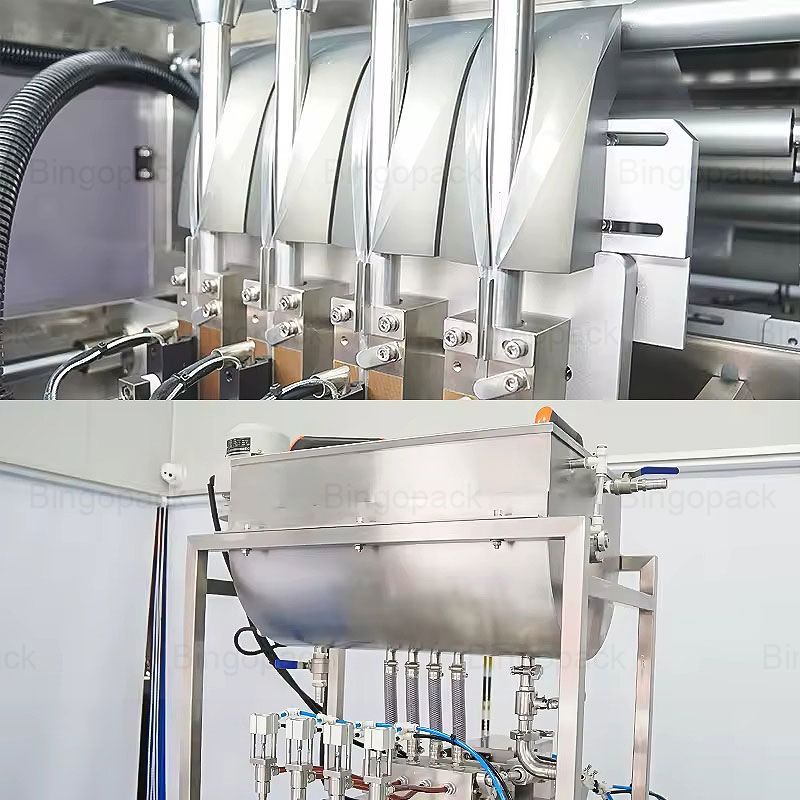

2. Peristaltic Pump Feeding: A clean and hygienic method that maximizes space utilization.
3. High Speed Multi Lane Operation: 2-20 lanes, with production speeds of 50-800 bags per minute.
4. Precision Dosing System: Offers precise filling with minimal product waste, ensuring better cost-efficiency.
5. Advanced PLC Control: It provides intelligence automation that enhances stability and ease of use.
6. Custom Bag Styles: Works with numerous formats including stick packs and sachets.
7. Material Usage Efficiency: Decreases film waste and optimizes resource consumption for cost savings.
8. Easy to Use: Comes with a touch-screen control panel for seamless adjustments and monitoring.
9. Compact & Space Saving Design: Comes in handy for companies who want greater productivity on limited production areas.

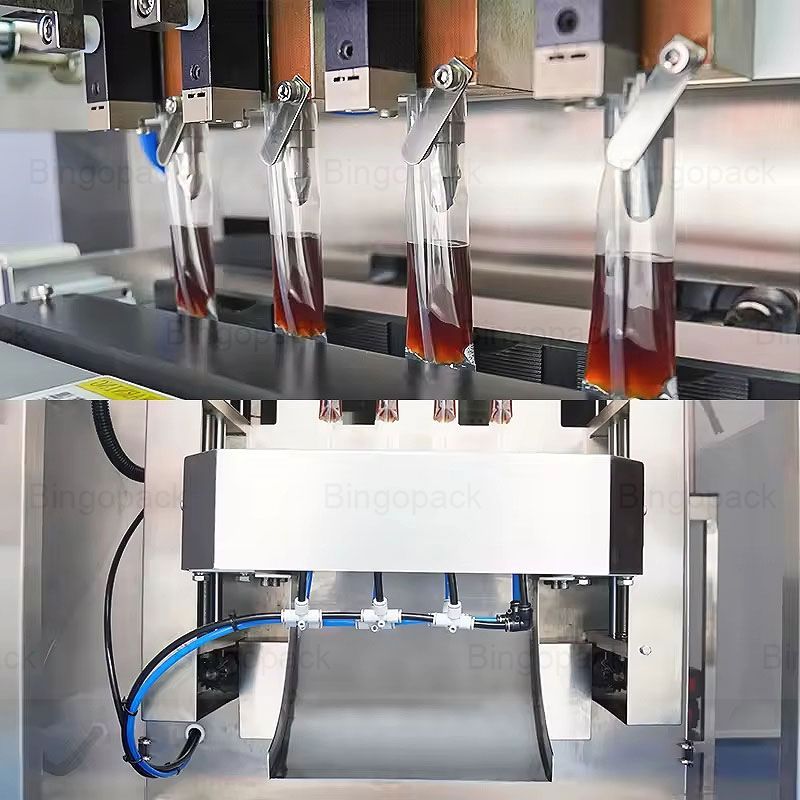

10. Sealing & Cutting Mechanism: Reliable, secure, and leak-proof seal for your food packaging, keeping up product freshness.
Application:
Model | BP-500Y | BP-700Y | BP-980Y | BP-1200Y |
Lanes number | 2-8 lanes | 3-12 lanes | 4-16 lanes | 5-20 lanes |
Capacity | Max.25-40 cycles/min/lane | |||
Bag size | L: 45-160mm, W: 50-125mm | L: 45-160mm, W: 50-125mm | L: 45-160mm, W: 50-125mm | L: 45-160mm, W: 50-125mm |
Film thickness | Max.500mm | Max.700mm | Max.980mm | Max.1200mm |
Measuring Method | Piston pump/Peristaltic pump/Ceramic pump/ Rotor pump | |||
Sealing type | 3/4 sides sealing | |||
Cutting type | 1. Straight cutting; 2. Zig zag cutting; 3. Continuous Cutting | |||
| Power | 220V/380V, 2.8kw | 220V/380V, 4.1kw | 220V/380V, 5.5kw | 220V/380V, 7.5kw |
Air consumption | 0.8 MPA, 0.8 m³/min | |||
Dimension | 950*1470*1750mm | 1153*1654*1750mm | 1415*1686*2130mm | |
Weight | 400kg | 550kg | 650kg | 900kg |
