Application:

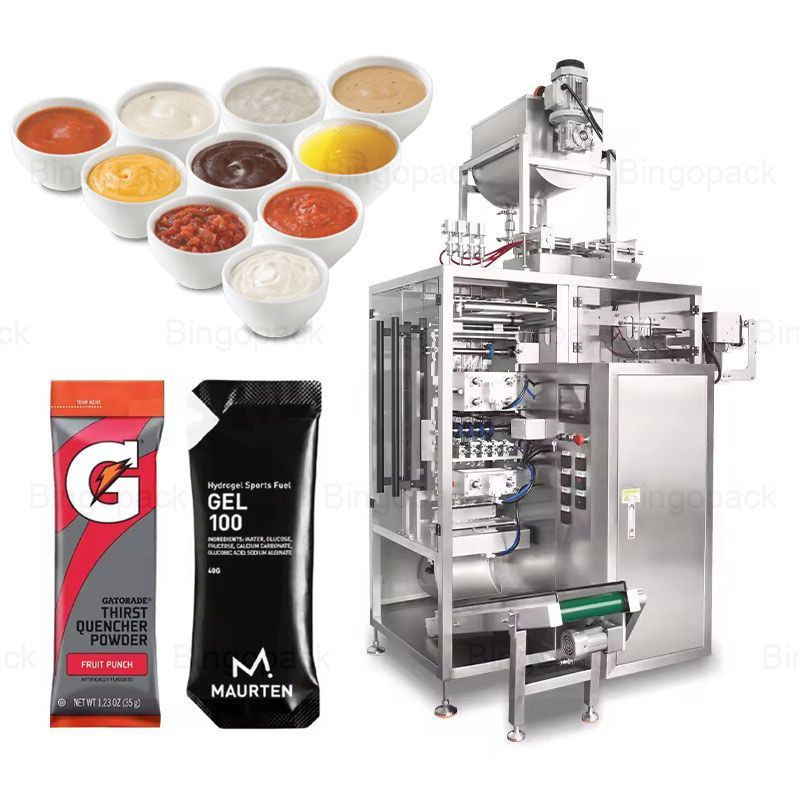

This multi lane liquid sachet packing machine is suitable for liquid products such as chili sauce, bean paste, sauce, ketchup, paste, honey, cream, milk, butter, energy gel, oil, vinegar, liquid seasoning, shampoo, jelly, etc.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

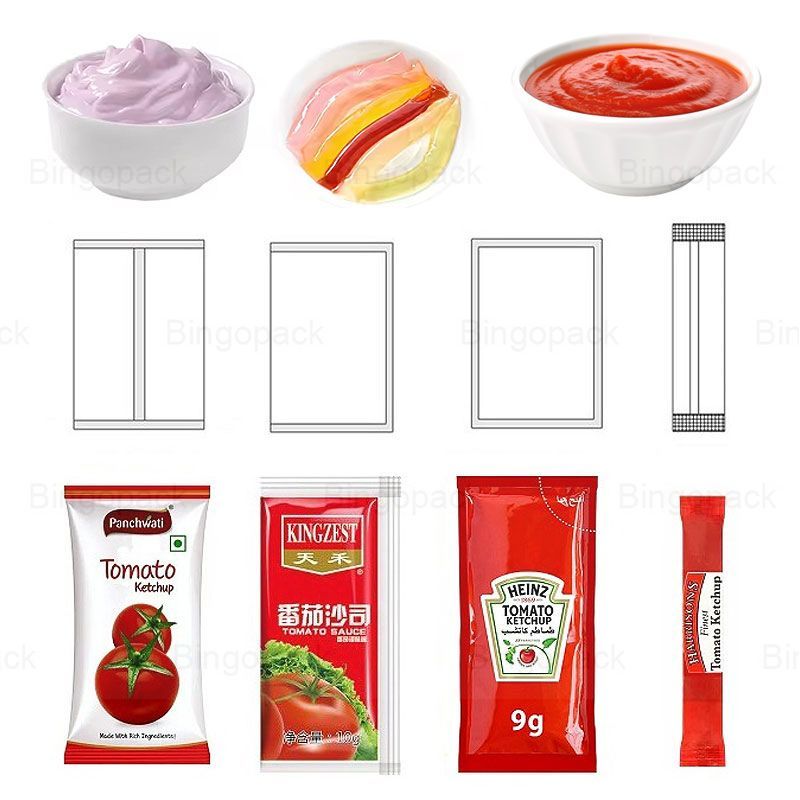

Bag Shape Options:
1. Sachet
2. Link bag
3. Stick bag
4. Sachet/stick bag with hanging hole
5. Sachet/stick bag with easy tear notch
Features:
1. Fully Pneumatic Control: Ensures user–friendly maintenance simple operation; easy assembly; easy cleaning.
2. 304L Stainless Steel: High pollish stainless steel that is corrosion-resistant, very durable and meet high hygiene and safety standards.
3. Exact Temperature Control: Its temperature setting is maintained automatically, resulting in perfect seals every time, and guarantees no leak and spoilage of the product.
4. Thermal Printing Ribbon: Delivers long-lasting, non-fading prints for clear, durable labels.
5. Independent PID Temperature Control: Perfect for front and back sealing with anti-curling, no weak seal point, and air-proof.
6. Automated Cutting Function: Cuts the packages into a uniform size for better efficiency.
7. Smart Control System: Enables intuitive parameter adjustments and seamless machine operation for enhanced convenience.
8. High-Speed & Reliable Sealing: Designed for efficiency, ensuring fast production without compromising packaging quality.
Application:
Model | BP-500Y | BP-700Y | BP-980Y | BP-1200Y |
Lanes number | 2-8 lanes | 3-12 lanes | 4-16 lanes | 5-20 lanes |
Capacity | Max.25-40 cycles/min/lane | |||
Bag size | L: 45-160mm, W: 50-125mm | L: 45-160mm, W: 50-125mm | L: 45-160mm, W: 50-125mm | L: 45-160mm, W: 50-125mm |
Film thickness | Max.500mm | Max.700mm | Max.980mm | Max.1200mm |
Measuring Method | Piston pump/Peristaltic pump/Ceramic pump/ Rotor pump | |||
Sealing type | 4 sides sealing | |||
Cutting type | 1. Straight cutting;2. Zig zag cutting ;3 Continuous Cutting | |||
| Power | 220V/380V, 2.8kw | 220V/380V, 4.1kw | 220V/380V, 5.5kw | 220V/380V, 7.5kw |
Air consumption | 0.8 MPA, 0.8 m³/min | |||
Dimension | 950*1470*1750mm | 1153*1654*1750mm | 1415*1686*2130mm | |
Weight | 400kg | 550kg | 650kg | 900kg |
