Application:
The sachet filling sealing machine is ideal for efficiently packaging a wide range of powdered products, including medicinal powder, tea powder, milk powder, protein powder, matcha powder, coffee powder, seasoning powder, cocoa powder, flour, spices, and more.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Stick/sachet dimension
2. Product weight
3. Your product
4. Stick/sachet shape
5. Stick/sachet material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Sachet
2. Link bag
3. Stick bag
4. Sachet/stick bag with hanging hole
5. Sachet/stick bag with easy tear notch
Features:

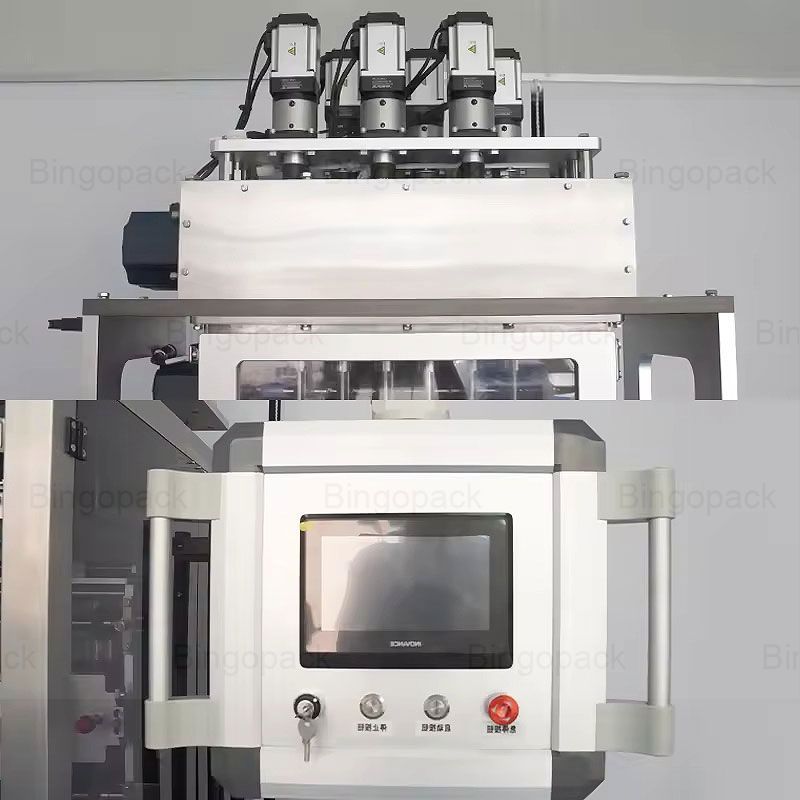

1. High-precision servo-controlled screw filling system ensures accurate quantitative filling with low dust emission and easy cleaning.
2. Long screw quantitative filling design delivers stable and precise filling performance for powder products.
3. CNC processed high-quality aluminum parts for excellent forming stability, ideal for high-end packaging equipment.
4. Supports multiple packaging types, including three-side sealing and back-sealing, to meet different packaging needs.
5. 45° longitudinal sealing device adopts bus-type temperature module for precise temperature control, ensuring strong and tight sealing.

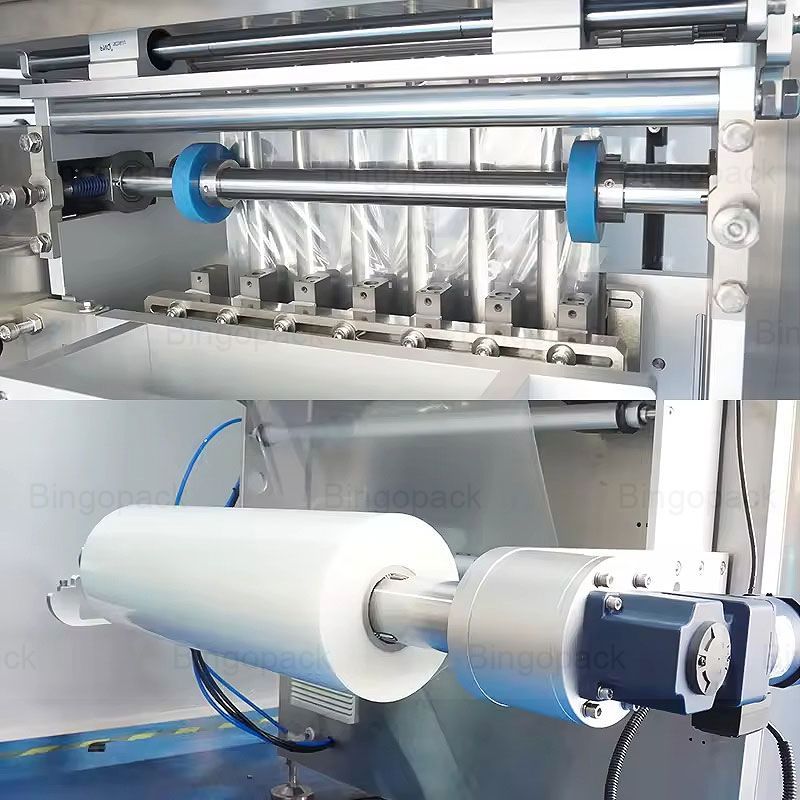

6. Automatic or manual film correction system keeps the film stable during the bag-making process, reducing material waste.
7. Clear and durable printing with thermal ribbon technology, ensuring non-fading and high-adhesion printing quality.
8. Intelligent system control of the whole machine operation, making parameter adjustment simple and user-friendly.
9. Optimized structure design ensures smooth packaging, stable running, and improved production efficiency.
10. Made of food-grade stainless steel and high-strength materials, ensuring hygiene standards and long machine lifespan.
Application:
Model | BP-300BF | BP-600BF | BP-900BF |
Lanes number | 2-6 lanes | 3-12 lanes | 4-18lane |
Capacity | Max.30-50 cycles/min/lane | ||
Bag size | L: 50-180mm W: 17-70mm | L: 50-180mm W: 17-95mm | L: 50-180mm W: 17-105mm |
| Film width&thickness | Max.300mm, 0.07-0.1mm | Max.600mm, 0.07-0.1mm | Max.900mm, 0.07-0.1mm |
Measuring Method | 1. volumetric cup; 2. weigher | ||
Sealing type | Back sealing/stick bag/sachet | ||
Cutting type | 1. Straight cutting; 2. Serrated cutting; 3. Round cutting; 4. Abnormal cutting | ||
Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw |
Air consumption | 0.8 MPA, 0.8m³/min | 0.8 MPA, 0.8m³min | 0.8 MPA, 0.8m³/min |
Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm |
Weight | 400kg | 600kg | 950kg |
