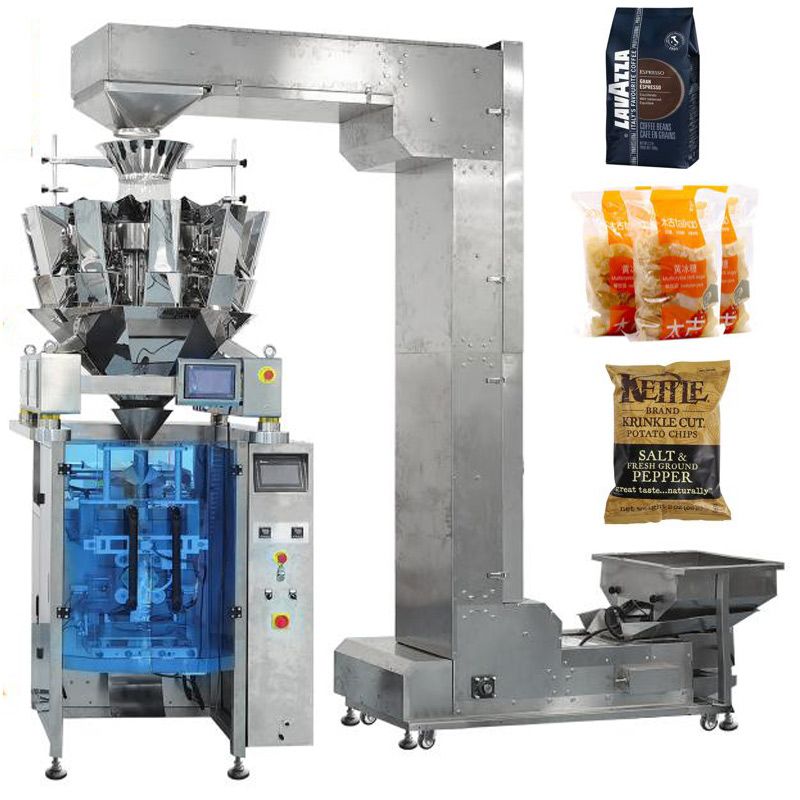

Automatic All-In-One Pouch VFFS Packing Machine With Multihead Weigher

Automatic All-In-One Pouch VFFS Packing Machine With Multihead Weigher

Application:

Automatic All-In-One Pouch VFFS Packing Machine With Multihead Weigher is suitable for puffed food, peanut, melon seeds,rice,white sugar,corn, biscuits and other granular solid materials packing, etc.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Pillow bag

2. Gusset bag

3. Flat bottom stand up bag

4. Quad seal stand up bag

5. Brick shape bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. New design, beautiful appearance, more reasonable structure, more advanced technology

2. Imported PLC computer control system, color touch screen, easy to operate, intuitive and efficient

3. Imported film transport system, imported color standard sensor, accurate positioning, excellent performance, beautiful packaging

4. Multiple automatic alarm protection functions to minimize damage

5. Diversified bag shape, can provide customers with pillow bag, pocket, hole bag, joint and so on

6. Touch screen and stable and reliable PLC control, bag-making, metering, filling, sealing, coding, bag-cutting one-time completion

7. The film is controlled by servo motor to realize high precision positioning and accurate size

8. External film release mechanism is adopted to facilitate the installation of packaging film

9. Vertical sealing and sealing process, automatic adjustment of deviation, greatly reducing labor intensity

Application:

Model	BP-320A	BP-380A	BP-420A	BP-520A	BP-720A
Packing size	W:50-150mm	W:70-200mm	W:80-200mm	W:90-250mm	W:110-350mm
Packing size	L:50-200mm	L:50-300mm	L:50-300mm	L:80-350mm	L:100-420mm
Packing speed	20-60 bag/min	10-60 bag/min	15-80 bag/min	30-80 bag/min	10-60 bag/min
Range of measuring	700ml	150-1500ml	150-1500ml	Max 1500ml	Max 4000ml
The max width of packing film	320mm	380mm	420mm	520mm	720mm
Air consumption	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	300L/min 0.8MPa
Main power/voltage	2.7KW/220V 50-60Hz	2.5KW/220V 50-60Hz	2.2KW/220V 50-60Hz	2.2KW/220V 50-60Hz	4.0KW/220V 50-60Hz
Main power/voltage	350KG	450KG	450KG	450KG	800KG
Dimension	(L)1100* (W)800*(H)1940mm	(L)1400(W)970(H)1700mm	(L)1400(W)970(H)1700mm	(L)1480* (W)1200*(H)1700mm	(L)1780(W)1350(H)2000mm
Film thickness	0.04-0.10mm
Bag making mode	Pillow-type bag, Standing bag, punching device,Link-bag device
Bag making mode	POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET
