Application:

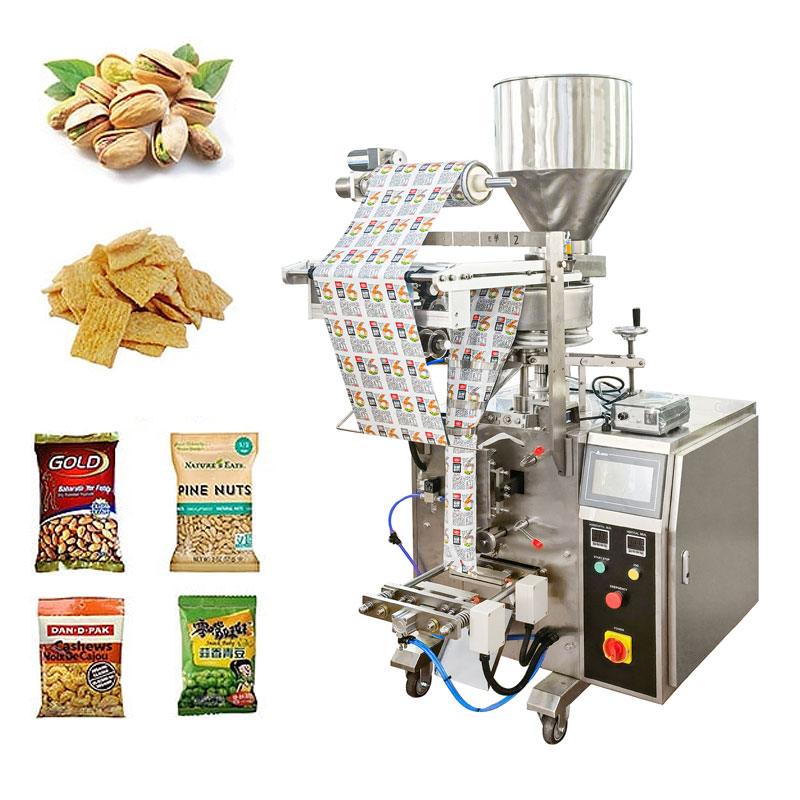

This automatic packing machine is ideal for bagging granular, solid, loose, and non-adhesive materials, including products like noodles, salads, potato chips, dried fruits, dried meat, dried fish, and popcorn.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

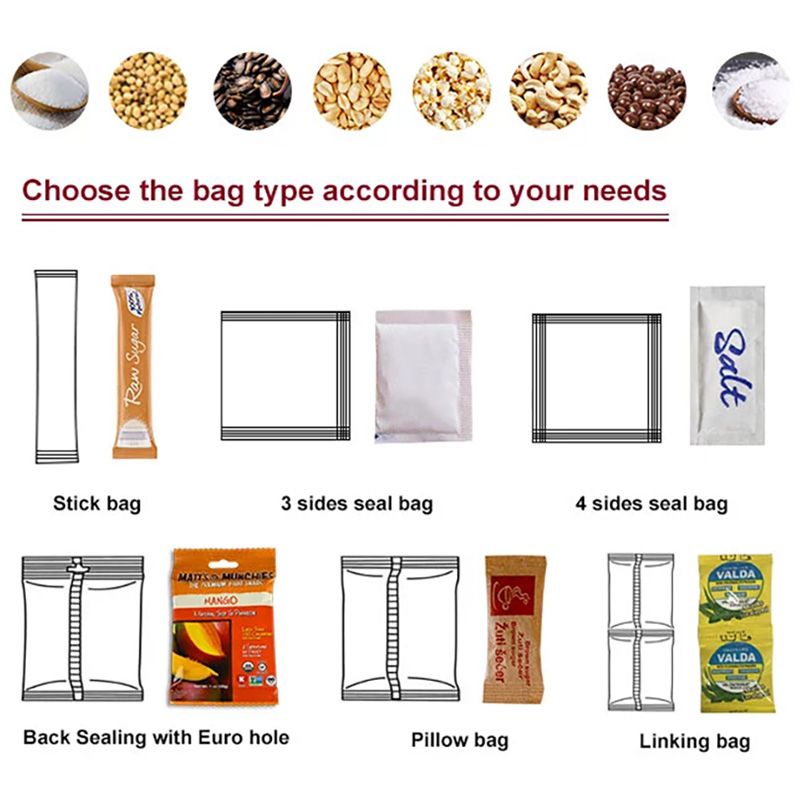

Bag Shape Options:
1. Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. The machine features a compact and robust structure, with a well-thought-out design and a clean, minimalist appearance.
2. Equipped with a stepper motor for film feeding, the parameters can be easily adjusted via the screen, enhancing operational convenience.
3. The use of variable frequency speed control ensures stable performance, reduced noise, and a lower likelihood of malfunctions.
4. Offers versatility with options for either group or single-item packaging and can connect to an inflation device to suit various product requirements.
5. Automated bag-making completes metering, filling, sealing, date printing, and output in a single, streamlined process.
6. An eye-mark sensor control system ensures precise and consistent packaging for all products.

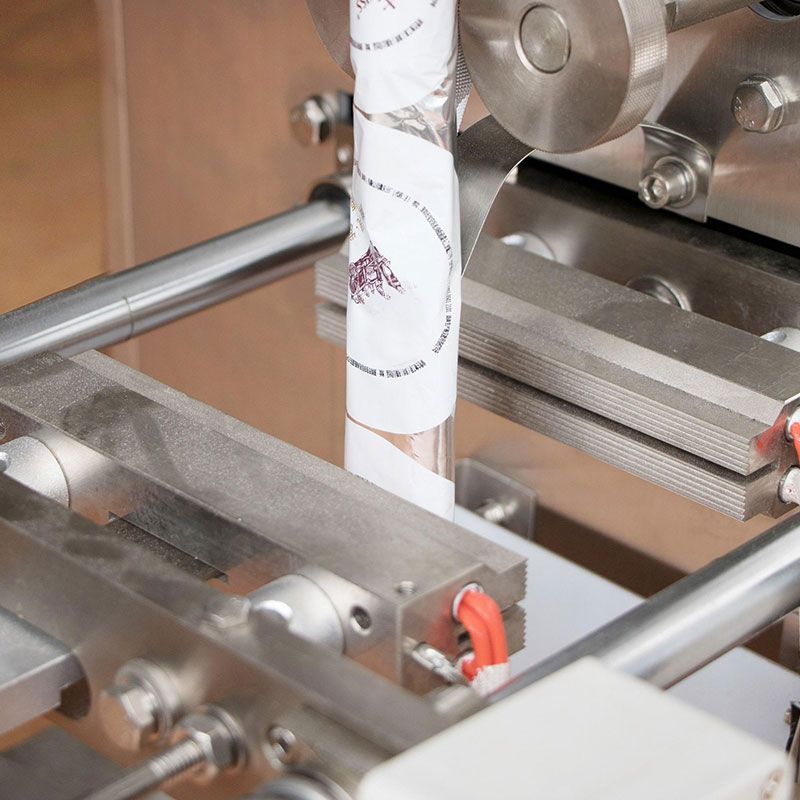

7. Utilizes a spring-loaded knife principle with pneumatic cutting for efficient and reliable cuts.
Application:
| Model | BP-320 | BP-380 |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
