Application:

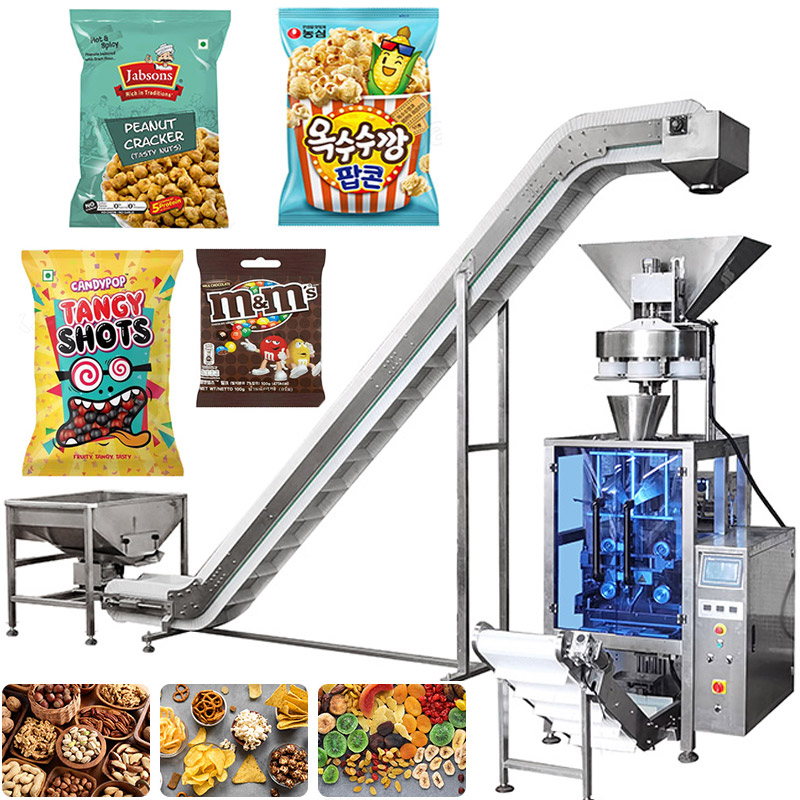

The Automatic Vertical Form Fill Seal Machine with measuring cups is designed for packaging various grain, sheet, strip, and irregular materials. It is suitable for items like candy, melon seeds, chips, peanuts, nuts, dried fruit, jelly, biscuits, chocolate, almonds, corn, potato crisps, pet food, puffed snacks, hardware, and plastics, ensuring precise weight-based measurements.
Kindly reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:

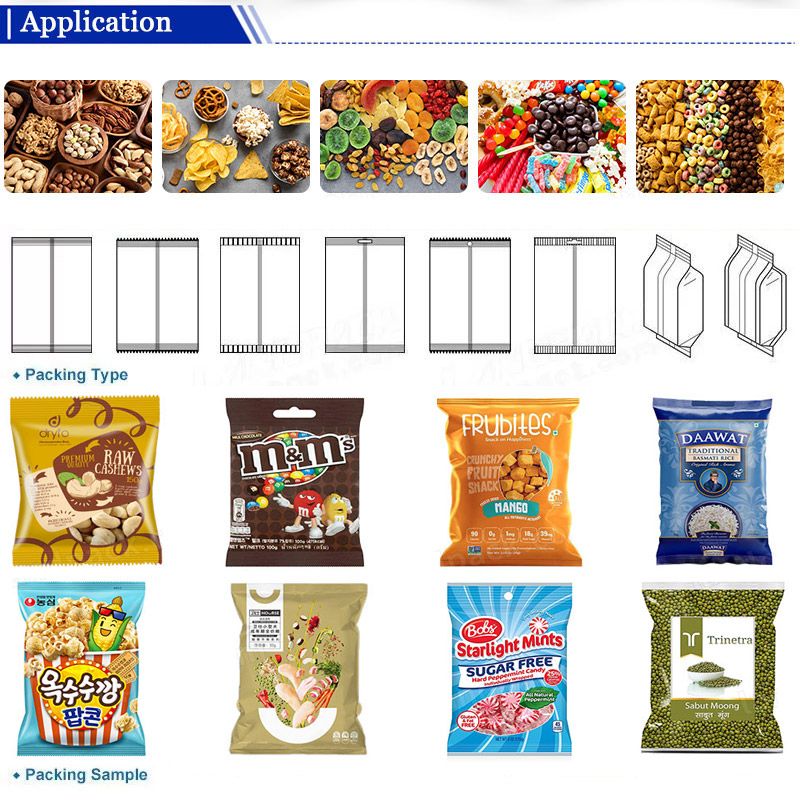

Bag Shape Options:
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Modern Design and Advanced Technology: Features a new, fashionable design with a more reasonable structure and advanced technology for improved performance.
2. User-Friendly Operation: Equipped with an imported PLC control system and a colorful touch screen, offering intuitive, efficient, and easy operation.
3. Precise Positioning and Packaging: Utilizes an imported servo film transporting system and mark sensor for precise positioning, ensuring excellent machine performance and perfect packaging results.
4. Auto Warning Protection: Includes an automatic warning protection function to reduce losses and enhance safety.
5. Versatile Bag Options: Supports various bag types, including hand hole bags and linked bags, to meet diverse packaging needs.
Application:
Model | BP-420C | BP-520C | BP-720C |
Film Width | Max.420mm | Max.520mm | Max.720mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm |
Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Measuring Range | 150-1500ml | 2000ml | 4000ml |
Packing Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
Machine Weight | About 650kg | About 680kg | About 750kg |
Option Device | 1.Date Printing, 2.Hole Punching Device(Pinhole, Round hole, the butterfly hole), 3.Air-filling Device, 4.Tear Notch Device | ||
