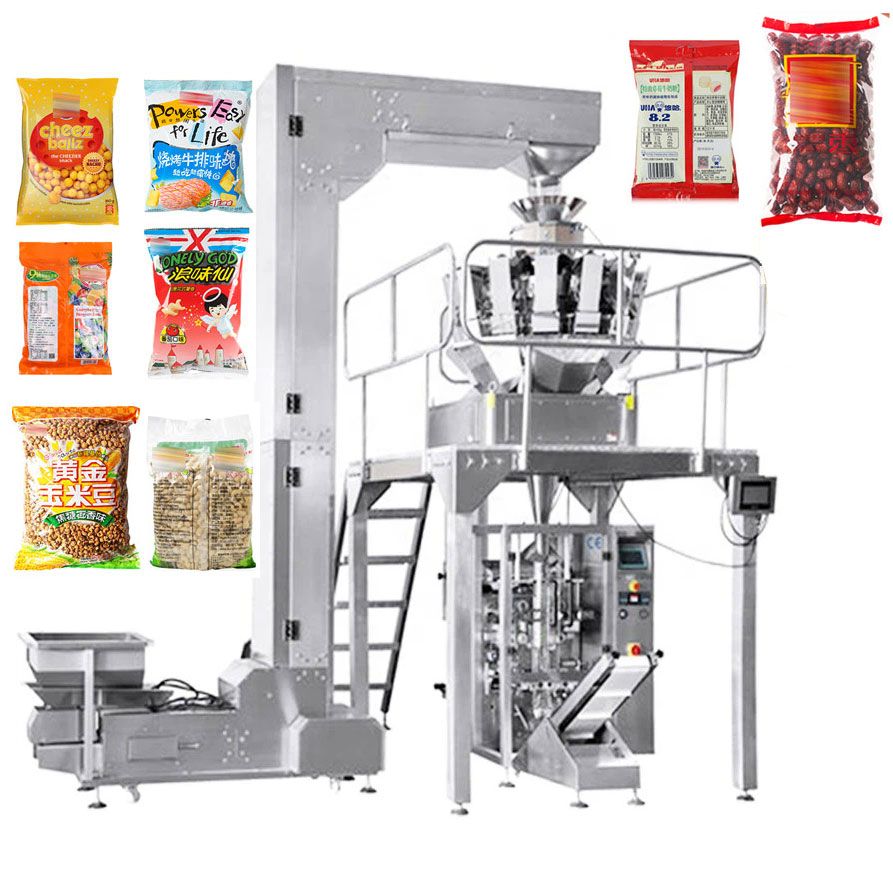

BP-420A Automatic Multihead Weigher Back Seal Pouch VFFS Packing Machine

BP-420A Automatic Multihead Weigher Back Seal Pouch VFFS Packing Machine

Application:

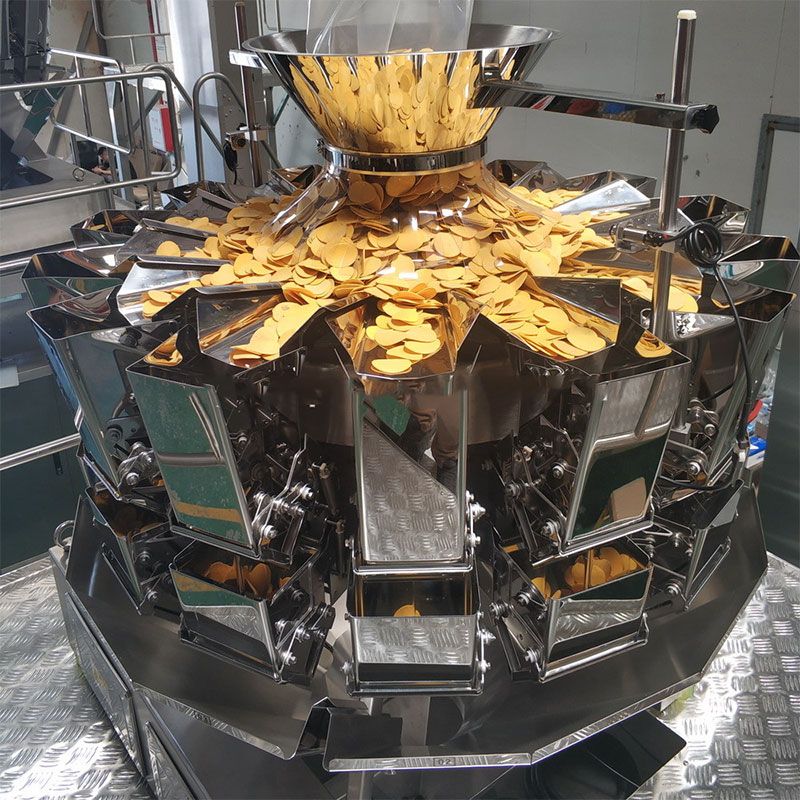

Bingopack Automatic multihead weigher back seal pouch vffs packing machine is suitable for all kinds of granules material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Pillow bag

2. Gusset bag

3. Flat bottom stand up bag

4. Quad seal stand up bag

5. Brick shape bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

1. Efficient and simple to use.

2. Use famous brand electric and pneumatic components, stable and long life circle.

3. Superior mechanical components.

4. Easy to install film.

5. Apply advanced operating system.

6. Easy to use and programmable.

7. To be used on VIZI High quality machine.

8. Four servo motor for reciprocating pull film system, can reach 180 bpm.

9. Automatically film rectifying function,smart and convenient.

10. High speed packaging, save labour, resources and place.

11. Many kinds of languages can be chosen.

Application:

Model	BP-320A	BP-380A	BP-420A	BP-520A	BP-720A
Packing size	W:50-150mm	W:70-200mm	W:80-200mm	W:90-250mm	W:110-350mm
Packing size	L:50-200mm	L:50-300mm	L:50-300mm	L:80-350mm	L:100-420mm
Packing speed	20-60 bag/min	10-60 bag/min	15-80 bag/min	30-80 bag/min	10-60 bag/min
Range of measuring	700ml	150-1500ml	150-1500ml	Max 1500ml	Max 4000ml
The max width of packing film	320mm	420mm	420mm	520mm	720mm
Air consumption	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	300L/min 0.8MPa
Main power/voltage	2.7KW/220V 50-60Hz	2.5KW/220V 50-60Hz	2.2KW/220V 50-60Hz	2.2KW/220V 50-60Hz	4.0KW/220V 50-60Hz
Main power/voltage	350KG	450KG	450KG	450KG	800KG
Dimension	(L)1100* (W)800*(H)1940mm	(L)1400(W)970(H)1700mm	(L)1400(W)970(H)1700mm	(L)1480* (W)1200*(H)1700mm	(L)1780(W)1350(H)2000mm
Film thickness	0.04-0.10mm
Bag making mode	Pillow-type bag, Standing bag, punching device,Link-bag device
Bag making mode	POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET
