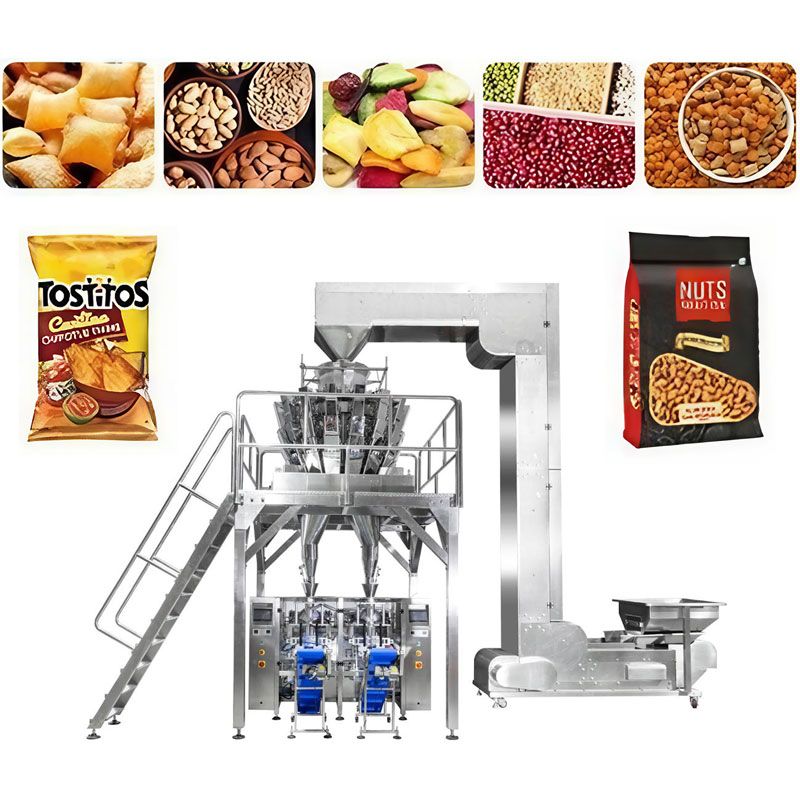

High Efficient Multi Head Weigher Vertical Pouch Forming Sealing Packaging Machine

vertical form fill seal packaging machine

High Efficient Multi Head Weigher Vertical Pouch Forming Sealing Packaging Machine

Application:

This machine is suitable for various granules, sheets, strips, and irregularly shaped materials, including candy, melon seeds, chips, peanuts, nuts, preserved fruits, jelly, biscuits, confections, and camphor balls. It offers versatile, efficient packaging for diverse products.

Kindly reminder:

Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1. Bag dimension

2. Bag weight

3. Your product

4. Bag shape

5. Bag material

Inquire Now WhatsApp

Benefits & Features

Parameter

Benefits & Features

Videos:

Bag Shape Options:

1. Pillow bag

2. Gusset bag

3. Flat bottom stand up bag

4. Quad seal stand up bag

5. Brick shape bag

6. Bag with hanging hole

7. Bag with easy tear notch

Features:

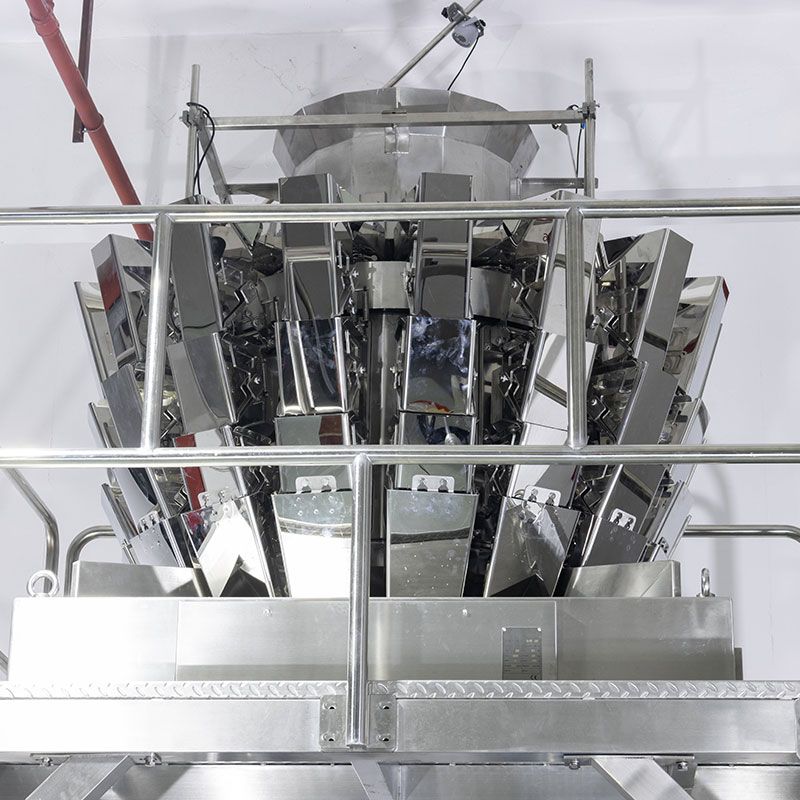

1. Precision Weigher: Expertly engineered to ensure accurate and consistent weight measurements for each package.

2. Ergonomic Touch Screen: Servo-controlled, multifunctional interface for easy, stable, and efficient operation.

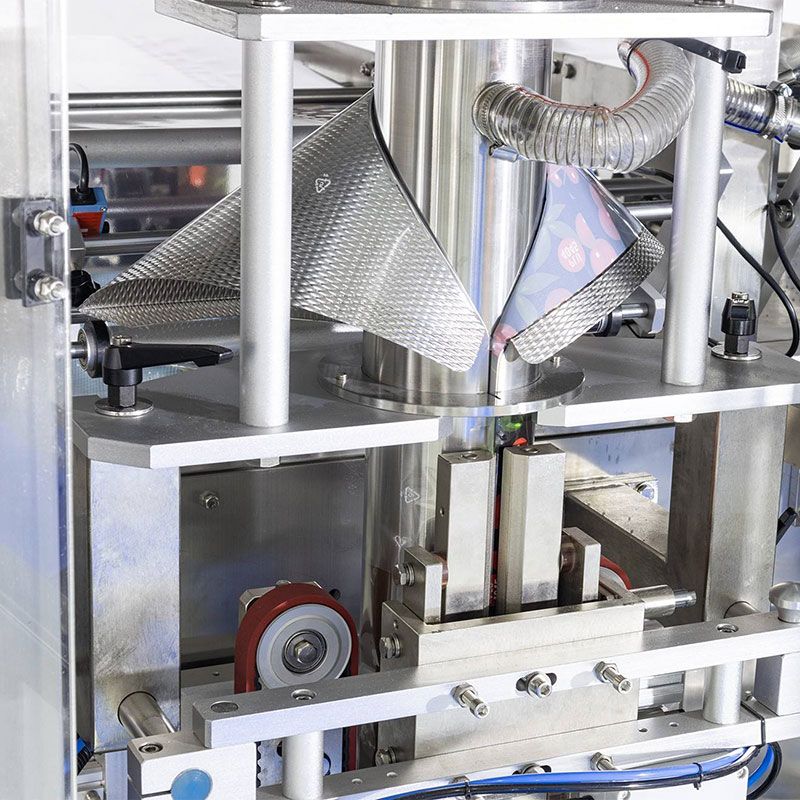

3. Adaptable Film Release Structure: Offers various film release options, providing flexibility and ease for diverse packaging requirements.

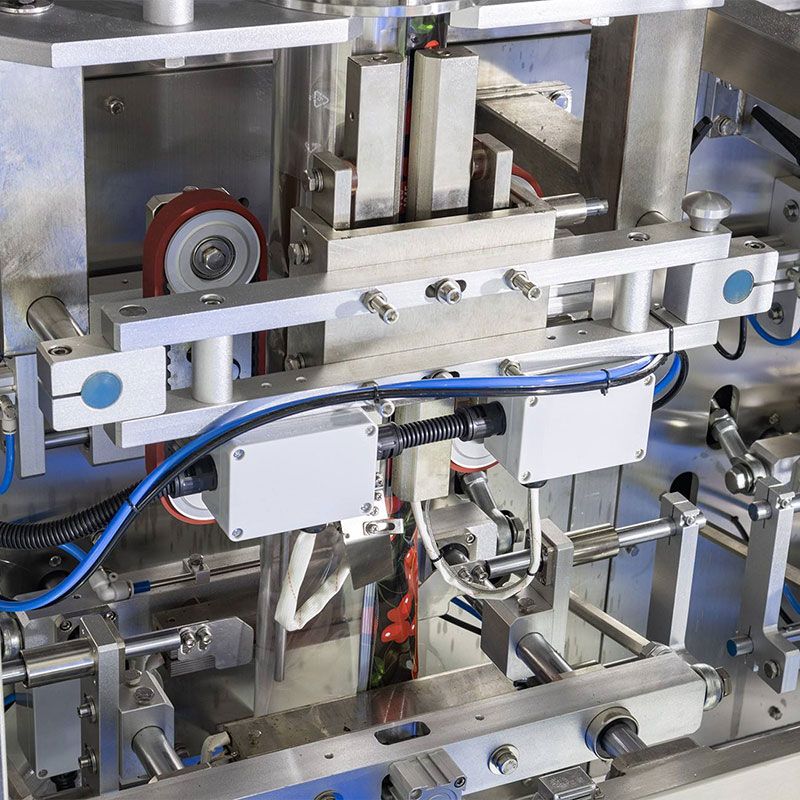

4. Optimized Sealing System: Reinforced membrane structure enhances sealing efficiency, achieving faster speeds and high performance.

5. Tailored Cutting Device: Custom cutter with advanced sealing technology for a sleek and professional package appearance.

Application:

Model	BP-320A	BP-380A	BP-420A	BP-520A	BP-720A
Packing size	W:50-150mm	W:70-200mm	W:80-200mm	W:90-250mm	W:110-350mm
Packing size	L:50-200mm	L:50-300mm	L:50-300mm	L:80-350mm	L:100-420mm
Packing speed	20-60 bag/min	10-60 bag/min	15-80 bag/min	30-80 bag/min	10-60 bag/min
Range of measuring	700ml	150-1500ml	150-1500ml	Max 1500ml	Max 4000ml
The max width of packing film	320mm	420mm	420mm	520mm	720mm
Air consumption	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	200L/min 0.6MPa	300L/min 0.8MPa
Main power/voltage	2.7KW/220V 50-60Hz	2.5KW/220V 50-60Hz	2.2KW/220V 50-60Hz	2.2KW/220V 50-60Hz	4.0KW/220V 50-60Hz
Main power/voltage	350KG	450KG	450KG	450KG	800KG
Dimension	(L)1100* (W)800*(H)1940mm	(L)1400(W)970(H)1700mm	(L)1400(W)970(H)1700mm	(L)1480* (W)1200*(H)1700mm	(L)1780(W)1350(H)2000mm
Film thickness	0.04-0.10mm
Bag making mode	Pillow-type bag, Standing bag, punching device,Link-bag device
Bag making mode	POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET
